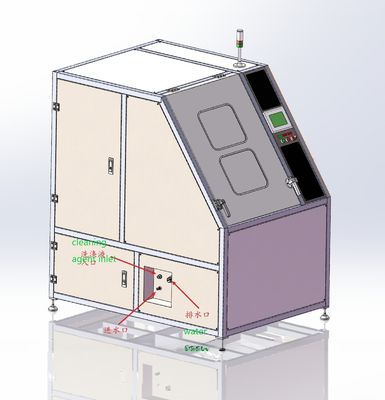

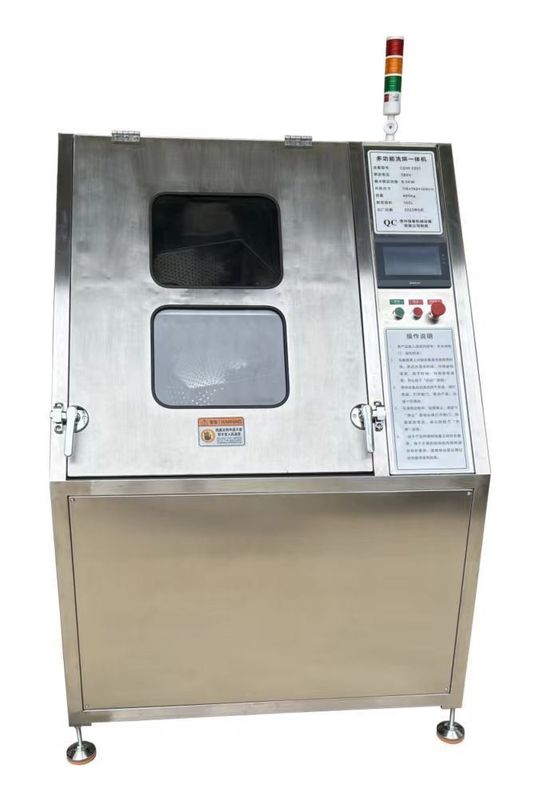

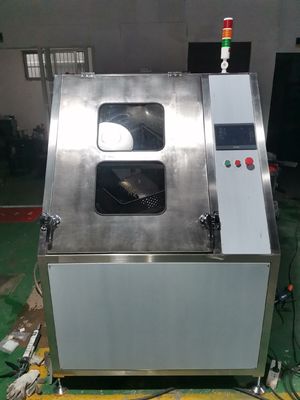

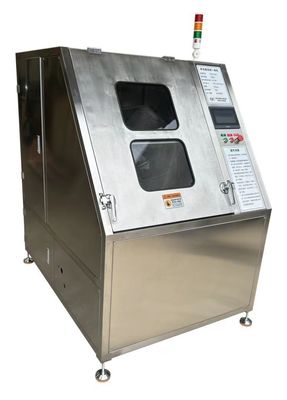

High Pressure Cleaning and Drying Machine for Rubber&Plastic Parts

This is a developed patented equipment called Multi -functional Washing and Drying machine. It resolves the problems of low efficiency, long washing time, and water leakage everywhere used by traditional horizontal washing machine. And our washing machine is efficient, without any water overflow. It uses high -pressure water spraying for cleaning, and drying function is fitted, a whole set of workflows to complete the cleaning work at one time. There is no need to arrange workers to wait there, the equipment adopts the PLC programming control system, when the work is completed, it will be automatically stopped. Workers only need to feed the products and take out the products from the barrel.

Application:

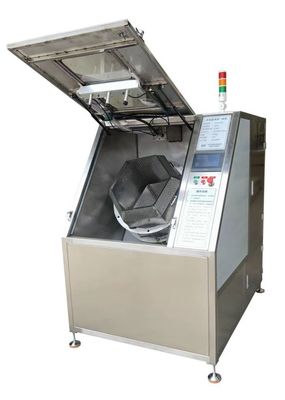

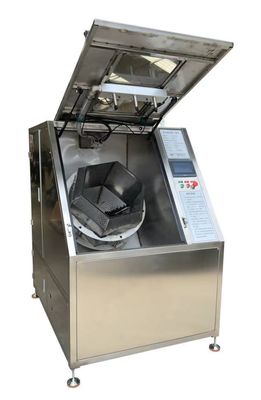

This machine can be used to clean (wash) rubber, silicone, plastic and other materials with product sizes ranging from 1mm~150mm. The cleaning drum (barrel) adopts the detachable mode. The default mesh hole diameter of the drum (barrel) is 5mm, and the user can customize the special hole size according to the product size. Applicable products for reference:


Simple operation instruction:

1. Put the products in the barrel, close the door and lock the handle.
2. Set Spraying Time of cleaning solution (agent), Time for high pressure water cleaning, rotation speed of barrel, air -drying time, and then push the "Start" button.
3. Waiting for the equipment to automatically clean and dry, then the green light is on, open the door, take out the products.
4. During the cleaning process, if you need to stop, press the "Stop" button, and then open the door; if you encounter an emergency, press the "Emergency Stop" button to stop the machine.
5. Due to the different characteristics of different products, the time or speed setting of different products could be different. Make sure to set the correct speed and time to achieve the best cleaning result.

Model: CDM-2201
Rated cleaning volume: 100L
Total power: 11.5 KW
Actual power consumption in production: 6~7KW
Power supply: 380V/50HZ/3 phase
Dimension:L110×W150×H160cm
Weight:400 Kg


The machine is packaged well by the stretch film first,and fixed professionally by the strong wooden case,ensuring the machine non damage during the long distance of land and sea transportation, and reach the clients factories safely.

We supply quick after sales service, including online consultation,instruction and also onsite face-face service if required by the clients.
We have professtional after sales serivce team who can give you satisfactory quick response,including technical questions,trouble-shooting,installation,etc.
