Metal Sleeve Facing&ID Chamfering Machine

Large Image : Metal Sleeve Facing&ID Chamfering Machine

Product Details:

Contact Now

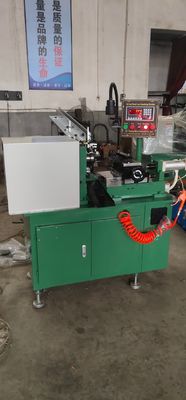

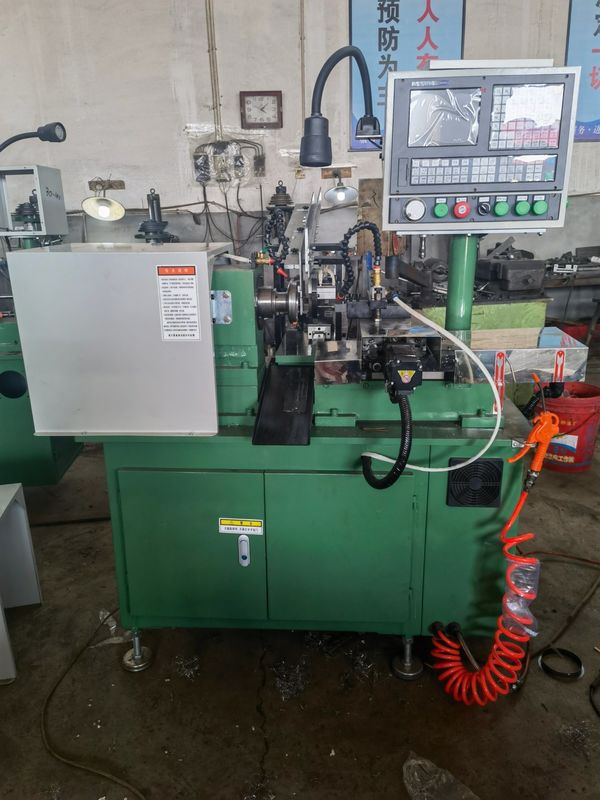

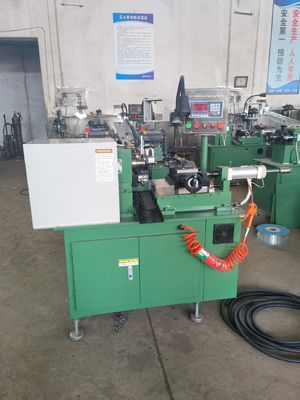

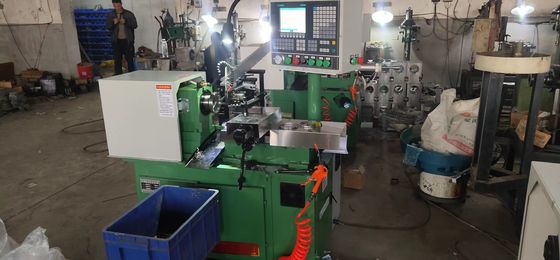

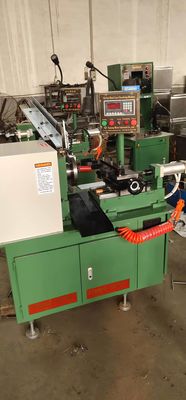

Metal Sleeve Facing&ID Chamfering Machine

Description

Model NO.:	D30-100	Specification:	L1.55xW1xH1.5m
Trademark:	MIXER	Origin:	China
HS Code:	8458190000

Metal Sleeve Facing & Chamfering Machine:

It is applicable for facing & chamfering of metal parts such as metal case,metal sleeve,metal cup.
1.Automatic Feeding of Metal Cases on a Die for Facing or Chamfering. High Efficiency & precise processing.

2.Loading the Metal Cases manually in line in the feeding conveyor→ Metal Cases are delivered forward by the Conveyor → Robot Grip & Feeds Metal Case on the Collet → Automatic Facing or Chamfering→Finished Metal Cases are ejected out.

Technical specification:
Model:D30-100
Spindle spec: 0640
Motor power: 2.2KW-1450 RPM
Inverter: EM730-2.2KW
Spindle speed: 0-1200 RPM
Power system: pneumatic
Control system: single board computer microcomputer control
Processing range: diameter 30-100mm, height 5-30mm
Scope of application: flat machining&chamfering of round workpieces
Processing speed: 1000 PCS/Hr
Power supply: AC380V/50HZ
Dimension: L1.5xW1xH1.45 m
Weight:420KG

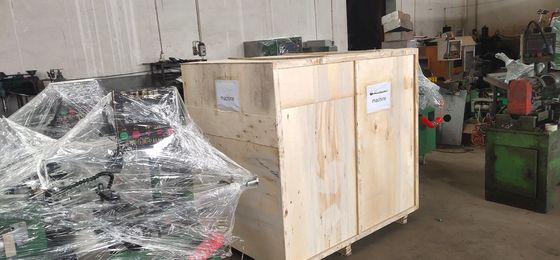

The machine is packaged well by the stretch film first,and fixed professionally by the strong wooden case,ensuring the machine non damage during the long distance of land and sea transportation, and reach the clients factories safely.
Metal Sleeve Facing&ID Chamfering Machine

We have professtional after sales serivce team who can give you satisfactory quick response,including technical questions,trouble-shooting,installation,etc.
