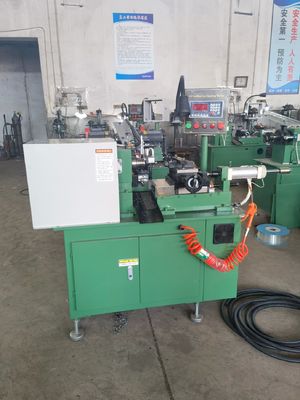

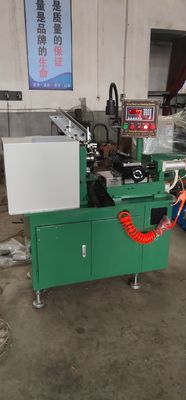

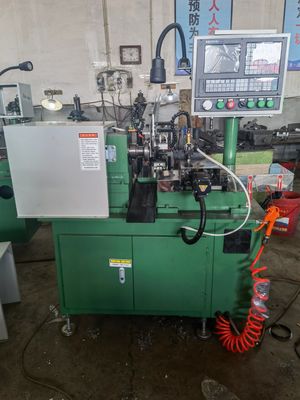

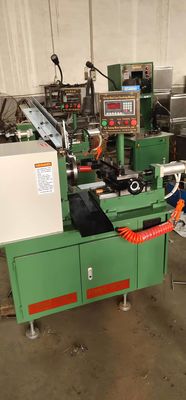

Oil Seal Metal Shell Facing&Machining Machine

Oil Seal Metal Shell Facing&Machining Machine

Oil Seal Metal Shell Facing&Machining Machine

Description
Model NO.: D30-100 Specification: L1.55xW1xH1.5m
Trademark: MIXER Origin: China
HS Code: 8458190000 Production Capacity: 500 Sets/ Year

Product Description

Oil Seal Metal Shell Facing&Machining Machine:

It is applicable for facing & chamfering of metal parts such as metal case,metal shell,metal sleeve,metal cup.
1.Automatic Feeding of Metal Cases on a Die for Facing or Chamfering. High Efficiency & precise processing.

2.Loading the Metal Cases manually in line in the feeding conveyor→ Metal Cases are delivered forward by the Conveyor → Robot Grip & Feeds Metal Case on the Collet → Automatic Facing or Chamfering→Finished Metal Cases are ejected out.

Technical specification:
Model:D30-100
Spindle spec:  0640
Motor power:  2.2KW-1450 RPM
Inverter: EM730-2.2KW
Spindle speed:  0-1200 RPM
Power system: pneumatic
Control system: single board computer microcomputer control
Processing range: diameter 30-100mm, height 5-30mm
Scope of application: flat machining&chamfering of round workpieces
Processing speed: 1000 PCS/Hr
Power supply:  AC380V/50HZ
Dimension: L1.5xW1xH1.45 m
Weight:420KG

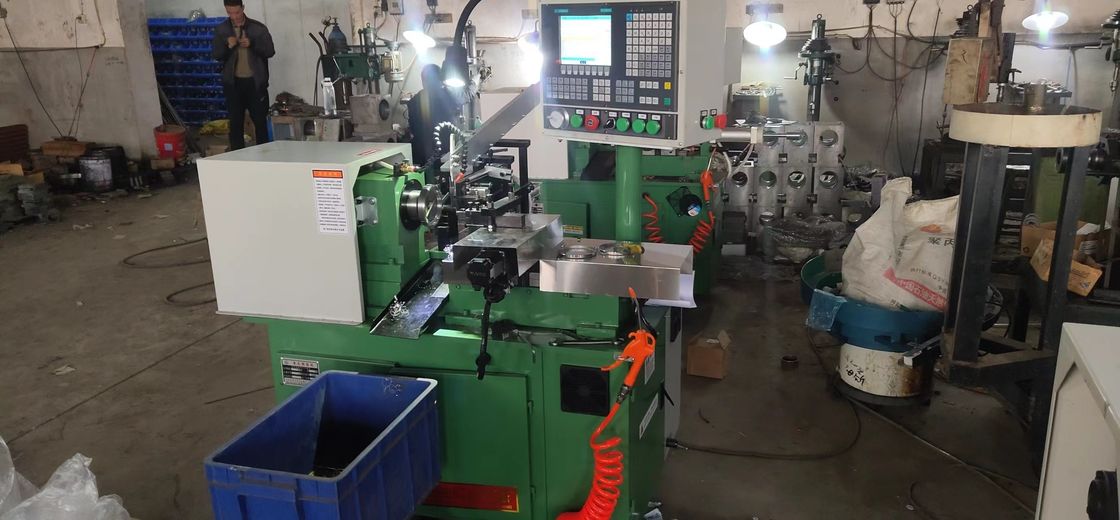

Exhibition

Oil Seal Metal Shell Facing&Machining Machine

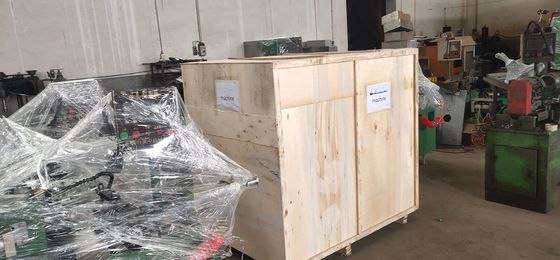

Packaging & Shipping

The oil seal metal case facing&chamfering machine is packaged well by the strong wooden case,ensuring the machines non damage the long distance of land and sea transportation, and reach the clients factories safely.
Oil Seal Metal Shell Facing&Machining Machine

After Sales Service

We supply quick after sales service, including online consultation,instruction and also onsite face-face service if required by the clients.
We have professtional after sales serivce team who can give you satisfactory quick response,including technical questions,trouble-shooting,installation,etc.
Our business principle is that :
Move ahead along with the spirit of "Responsibility& Sincerity for Customers" and "Cooperative&Enterprising Team" to "Create a Better Future Together ".
It is our promise and duty to execute the 3 No worries for clients:
No worries before order,
No worries after order,
No worries in produciton.
