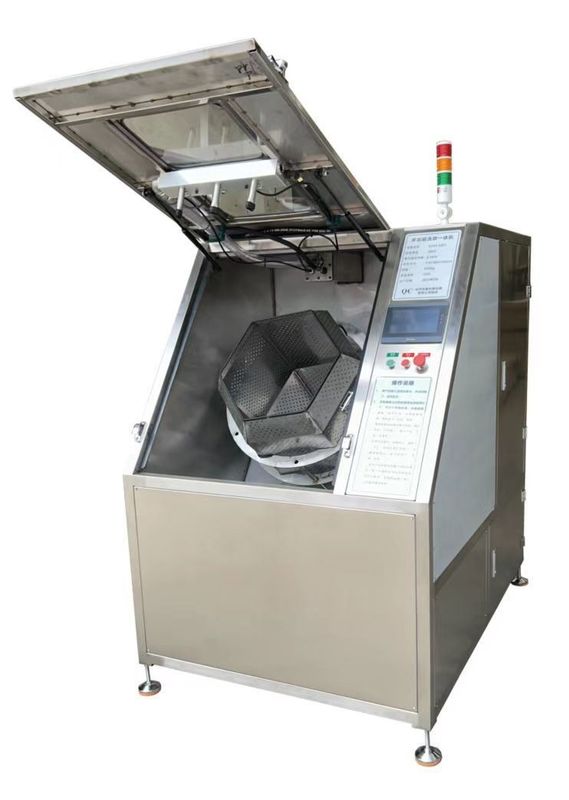

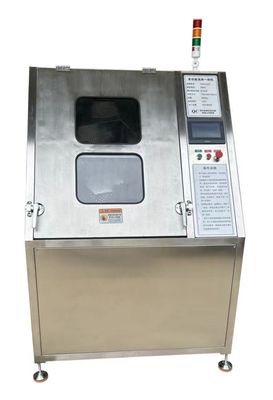

Rubber/Silicone Parts Washing Drying Machine

This is a developed patented equipment called Multi -functional Washing and Drying machine. It resolves the problems of low efficiency, long washing time, and water leakage everywhere used by traditional horizontal washing machine. And our washing machine is efficient, without any water overflow. It uses high -pressure water spraying for cleaning, and drying function is fitted, a whole set of workflows to complete the cleaning work at one time. There is no need to arrange workers to wait there, the equipment adopts the PLC programming control system, when the work is completed, it will be automatically stopped. Workers only need to feed the products and take out the products from the barrel.

Application:

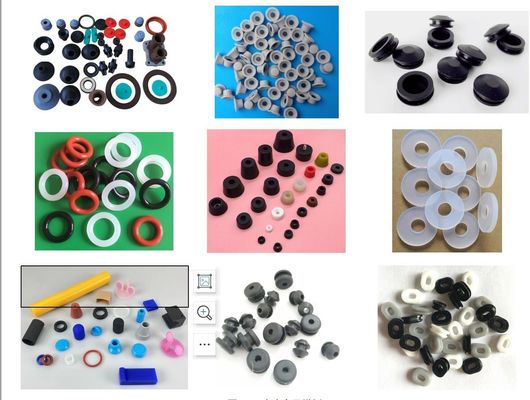

This machine can be used to clean (wash) rubber, silicone, plastic and other materials with product sizes ranging from 1mm~150mm. The cleaning drum (barrel) adopts the detachable mode. The default mesh hole diameter of the drum (barrel) is 5mm, and the user can customize the special hole size according to the product size. Applicable products for reference:

Washing effect comparison:

Model: CDM-2201
Total washing barket volume: 180L
Effective washing volume: 80~90L
Total power: 11.5 KW
Actual power consumption in production: 6~7KW
Power supply: 380V/50HZ/3 phase
Dimension:L110×W150×H160cm
Weight:400 Kg


The rubber washing-drying machine is packaged well by the stretch film first,and fixed professionally by the strong wooden case,ensuring the machine non damage during the long distance of land and sea transportation, and reach the clients factories safely.


We supply quick after sales service, including online consultation,instruction and also onsite face-face service if required by the clients.
We have professtional after sales serivce team who can give you satisfactory quick response,including technical questions,trouble-shooting,installation,etc.
Our business principle is that :
Move ahead along with the spirit of "Responsibility& Sincerity for Customers" and "Cooperative&Enterprising Team" to "Mold a Better Future Together ".
It is our promise and duty to execute the 3 No worries for clients:
No worries before order,
No worries after order,
No worries in produciton.
