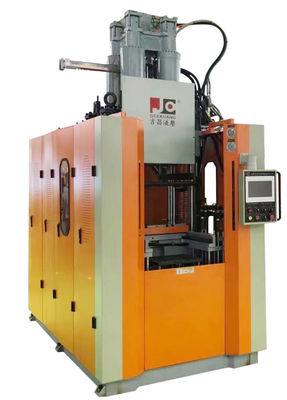

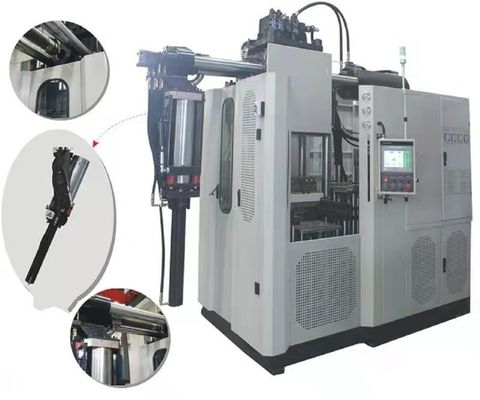

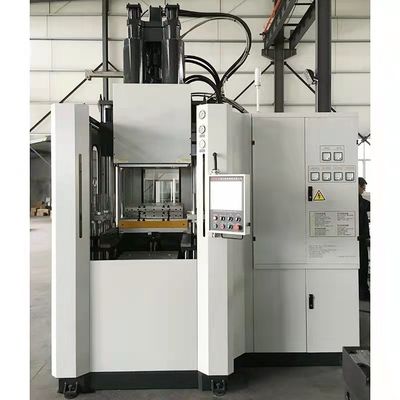

XLB-V200T Vertical Rubber Injection Molding Machine for Rubber Products Production

XLB-V200T Vertical Rubber Injection Molding Machine for Rubber Products Production

XLB-V200T Vertical Rubber Injection Molding Machine for Rubber Products Production
XLB-V200T Vertical Rubber Injection Molding Machine for Rubber Products Production XLB-V200T Vertical Rubber Injection Molding Machine for Rubber Products Production XLB-V200T Vertical Rubber Injection Molding Machine for Rubber Products Production XLB-V200T Vertical Rubber Injection Molding Machine for Rubber Products Production XLB-V200T Vertical Rubber Injection Molding Machine for Rubber Products Production XLB-V200T Vertical Rubber Injection Molding Machine for Rubber Products Production

Large Image :  XLB-V200T Vertical Rubber Injection Molding Machine for Rubber Products Production

Product Details:
Brand Name: Geekung
Payment & Shipping Terms:
Payment Terms: T/T

XLB-V200T Vertical Rubber Injection Molding Machine for Rubber Products Production

Description
Model NO.: XLB-V200T Structure: Vertical
Transport Package: Bubble Film Packaged&Loaded In A Whole Container Specification: 200T
Trademark: Geekung Origin: China
HS Code: 847780 Production Capacity: 1000 Sets/Year

Product Description

Main application field for the rubber&silicone injection molding press machine:

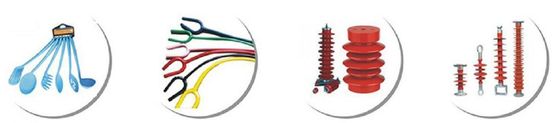

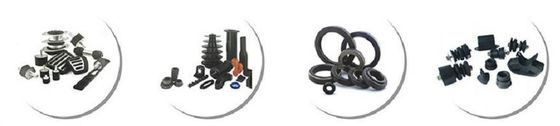

Rubber&Silicone Injection Molding Machine is ideal for the production of various natural&synthetic rubber parts,oil & heat resistant rubber parts, silicone parts,etc.
Rubber Injection Molding Machine, Rubber Parts Making Machine----CE safety standard

       Rubber Injection Molding Machine, Rubber Parts Making MachineRubber Injection Molding Machine, Rubber Parts Making Machine
  • Ergonomic low bed structure for easy opeartion
  • Advanced proportional pressure&speed control from PLC
  •  Automated de-moulding and handling devices are optional
  • Option to make silicone material
  • Customized specifications are available
  • Vertical/Horizontal structure with FIFO type injection systems


Technical Specification:


Model XLB-V200T XLB-V300T XLB-V400T XLB-V500T
Clamping force(ton)   200 300 400 500
Stroke(mm)  500 500 600 600
Platen size(mm) 600x600 700x700 700x800 800x850
Main piston diameter(mm) 355 450 500 560
Max.platen gap(mm) 550 550 700 700
Min. Mold thickness(mm) 60 60 100 100
Core Lifter stroke (mm) 200 200 250 250
Injection unit
Injection volume (CC) 2000 3000 4000 5000
Injection pressure (Mpa) 220 220 205 205
Screw diameter(mm) 45 45 55 55
Nozzle aperture(mm) 6 6 7 8
Others
System pressure (Mpa) 21 21 21 21
Horse Power(HP) 15 20 25 30
Heater power (KW) 19 22 27 31
Total power(KW) 36 40 52 58
Weight(Kg) 7200 9300 11700 14700
Dimension(LxWxH:mm) 2700x1200x3600 3100x1300x4000 3300x1400x4500 4000x1600x4500
Notes: the table only lists out the normal popular standard models, more special larger models can be customized to order.
Exhibition

Rubber Injection Molding Machine, Rubber Parts Making Machine

Installation Instructions

We supply quick after sales service, including online consultation,instruction and also onsite face-face service if required by the clients.
We have professtional after sales serivce team who can give you satisfactory quick response,including technical questions,trouble-shooting,installation,etc.
Our business principle is that :
Move ahead along with the spirit of "Responsibility& Sincerity for Customers" and "Cooperative&Enterprising Team" to "Mold a Better Future Together ".
It is our promise and duty to execute the 3 No worries for clients:
No worries before order,
No worries after order,
No worries in produciton.
Rubber Injection Molding Machine, Rubber Parts Making MachineRubber Injection Molding Machine, Rubber Parts Making MachineRubber Injection Molding Machine, Rubber Parts Making MachineRubber Injection Molding Machine, Rubber Parts Making Machine
