| Structure: | Vertical | Transport Package: | Bubble Film Packaged&Loaded In A Whole Container |
|---|---|---|---|
| Specification: | 200T | Trademark: | Geekung |
| Origin: | China | HS Code: | 847780 |
| Production Capacity: | 1000 Sets/Year |

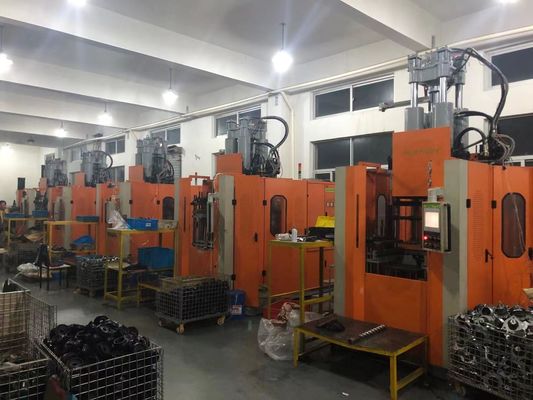

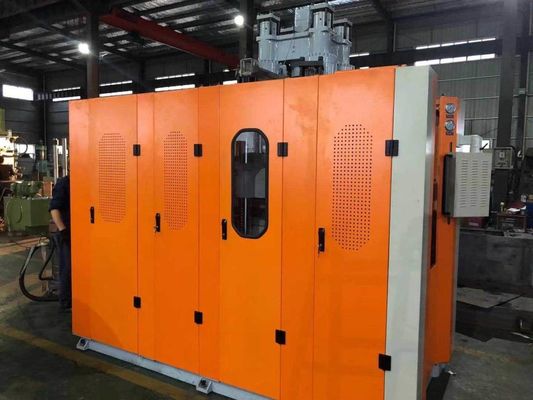

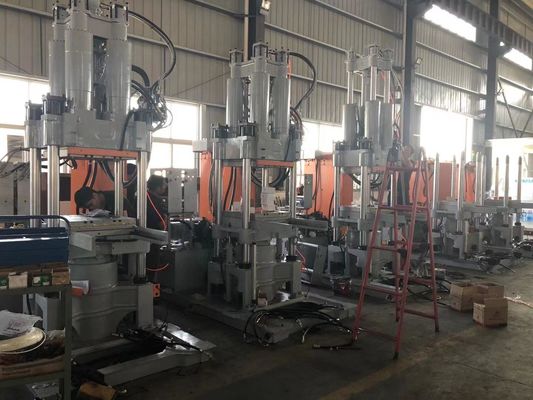

Main application field for the Vertical Rubber Injection Molding Press:
Vertical Rubber Injection Molding Pressis ideal for the production of various natural&synthetic rubber parts,oil & heat resistant rubber parts, silicone parts,etc.
----CE safety standard
| Model | XLB-V200T | XLB-V300T | XLB-V400T | XLB-V500T |
| Clamping force(ton) | 200 | 300 | 400 | 500 |
| Stroke(mm) | 500 | 500 | 600 | 600 |
| Platen size(mm) | 600x600 | 700x700 | 700x800 | 800x850 |
| Main piston diameter(mm) | 355 | 450 | 500 | 560 |
| Max.platen gap(mm) | 550 | 550 | 700 | 700 |
| Min. Mold thickness(mm) | 60 | 60 | 100 | 100 |
| Core Lifter stroke (mm) | 200 | 200 | 250 | 250 |
| Injection unit | ||||
| Injection volume (CC) | 2000 | 3000 | 4000 | 5000 |
| Injection pressure (Mpa) | 220 | 220 | 205 | 205 |
| Screw diameter(mm) | 45 | 45 | 55 | 55 |
| Nozzle aperture(mm) | 6 | 6 | 7 | 8 |
| Others | ||||
| System pressure (Mpa) | 21 | 21 | 21 | 21 |
| Horse Power(HP) | 15 | 20 | 25 | 30 |
| Heater power (KW) | 19 | 22 | 27 | 31 |
| Total power(KW) | 36 | 40 | 52 | 58 |
| Weight(Kg) | 7200 | 9300 | 11700 | 14700 |
| Dimension(LxWxH:mm) | 2700x1200x3600 | 3100x1300x4000 | 3300x1400x4500 | 4000x1600x4500 |
We supply quick after sales service, including online consultation,instruction and also onsite face-face service if required by the clients.
We have professtional after sales serivce team who can give you satisfactory quick response,including technical questions,trouble-shooting,installation,etc.
Our business principle is that :
Move ahead along with the spirit of "Responsibility& Sincerity for Customers" and "Cooperative&Enterprising Team" to "Mold a Better Future Together ".
It is our promise and duty to execute the 3 No worries for clients:
No worries before order,
No worries after order,
No worries in produciton.
