Product Details:
|
| Model NO.: | X(S)N-55-H | Transport Package: | Plastic Film Package Loaded In Container |
|---|---|---|---|
| Specification: | 55L | Trademark: | MIXER/Geekung |
| Origin: | China | HS Code: | 847780 |
| Production Capacity: | 1000 Sets/Year |
1. This hydraulic dispersion kneader machine has less noise than pneumatic dispersion kneader.
2. The pressure of the hydraulic dispersion kneader is more balanced and stable working compared with the pneumatic type dispersion kneader,
which can effectively improve the dispersion effect of various mixture materials and enhance the quality of the rubber&plastic compound.
3. Hydraulic dispersion kneader is more powerful and well-distributed,works more efficiently, greatly improve productivity.
| Model | X(S)N-20-H | X(S)N-35-H | X(S)N-55-H | X(S)N-75-H | X(S)N-110-H | X(S)N-150-H | |
| Effective Mixing capacity | L | 20 | 35 | 55 | 75 | 110 | 150 |
| Main power | KW | 55 | 75 | 90 | 132 | 200 | 250 |
| Brake Motor | KW | 3 | 3 | 4 | 4 | 5.5 | 5.5 |
| Tilting Angle | ºC | 140 | 140 | 140 | 140 | 140 | 140 |
| Hydraulic pump power | KW | 5.5 | 5.5 | 7.5 | 7.5 | 7.5 | 7.5 |
| Hydraulic pressure | Mpa | 3~6 | 3~6 | 3~6 | 3~6 | 3~6 | 3~6 |
| Cooling Water | Mpa | 0.2-0.4 | 0.3-0.4 | 0.3-0.4 | 0.3-0.4 | 0.3-0.4 | 0.3-0.4 |
| Heating Steam | Mpa | 0.5-0.8 | 0.5-0.8 | 0.5-0.8 | 0.5-0.8 | 0.5-0.8 | 0.5-0.8 |
| Electric Heater | KW | 9 | 12 | 15 | 18 | 24 | 28 |
| Machine Weight | KG | 5800 | 7500 | 8800 | 11800 | 16500 | 22000 |
| Overall Dimension | CM | 260x160 x270 | 320x185 x280 | 350x220 X290 | 380x230 X330 | 440x290 X385 | 470x300 X415 |

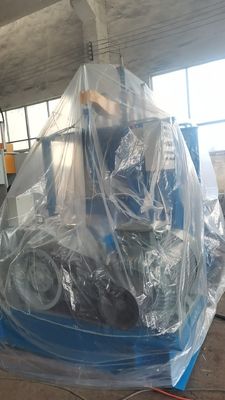

The rubber hydraulic kneader machines are packaged well by the stretch film first,and fixed professionally by the strong (solid) steel wire ropes,ensuring the machines remain still and won't slide in the container during the long distance of land and sea transportation, and reach the clients factories safely.
We supply quick after sales service, including online consultation,instruction and also onsite face-face service if required by the clients.
We have professtional after sales serivce team who can give you satisfactory quick response,including technical questions,trouble-shooting,installation,etc.
