Advanced Rubber Oil Seal Trimming Machine with Customized Options

Large Image : Advanced Rubber Oil Seal Trimming Machine with Customized Options

Product Details:

Place of Origin:	China
Brand Name:	Mixer
Certification:	CE

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Packaging Details:	wooden case package
Delivery Time:	20-30days
Payment Terms:	T/T
Supply Ability:	30sets per months

Contact Now

Advanced Rubber Oil Seal Trimming Machine with Customized Options

Description

Model NO.:	VRT-2	Structure:	Horizontal
Color:	Customized	Vacuum:	Yes
Transport Package:	Standard Export Wooden Case Package	Specification:	VRT-2
Trademark:	Geekung	Origin:	China
HS Code:	847780	Production Capacity:	1000 Sets/Year

Application:
Rubber Oil seal Trimming Machine or round rubber Cup/ Seal trimming machine is used for kinds of rubber skeletons, rubber oil seal,rubber o ring, rubber packing cup, kinds of rubber washer and round rubber parts.

Main technical parameter for the rubber trimming machine:
Vacuum≤-0.035Mpa
circular run out of main spindle≤0.01mm
plane run out≤0.02mm
Speed of spindle: 0-3000r/min
cutting degree:-10°~100°
cutting range :10mm-300mm (adjustable)
Blade specification(ThickxWidexLength):2x4x75mm
Blade material:tungsten steel.
Total power comsumption: 1 KW
Voltage: 220V,single phase.
Weight: 300kg
Dimension:1020mm×700mm×1300mm

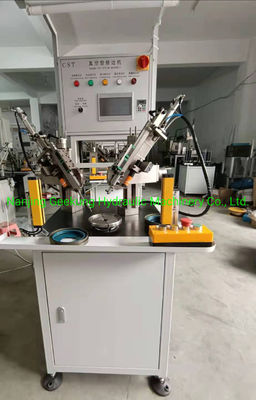

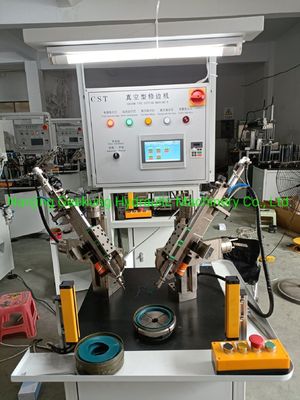

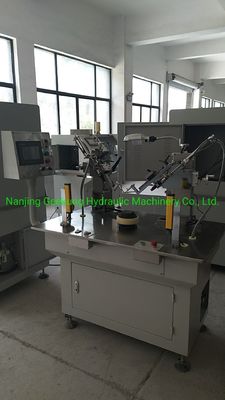

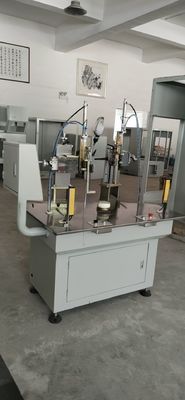

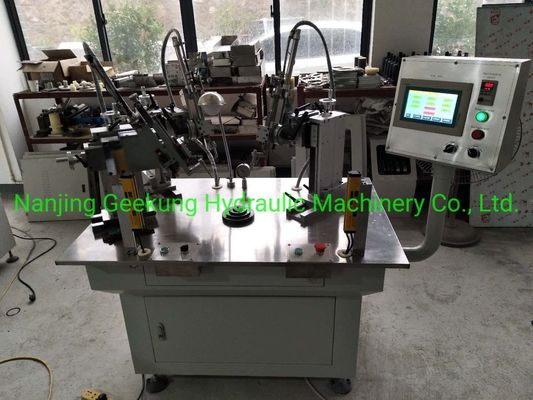

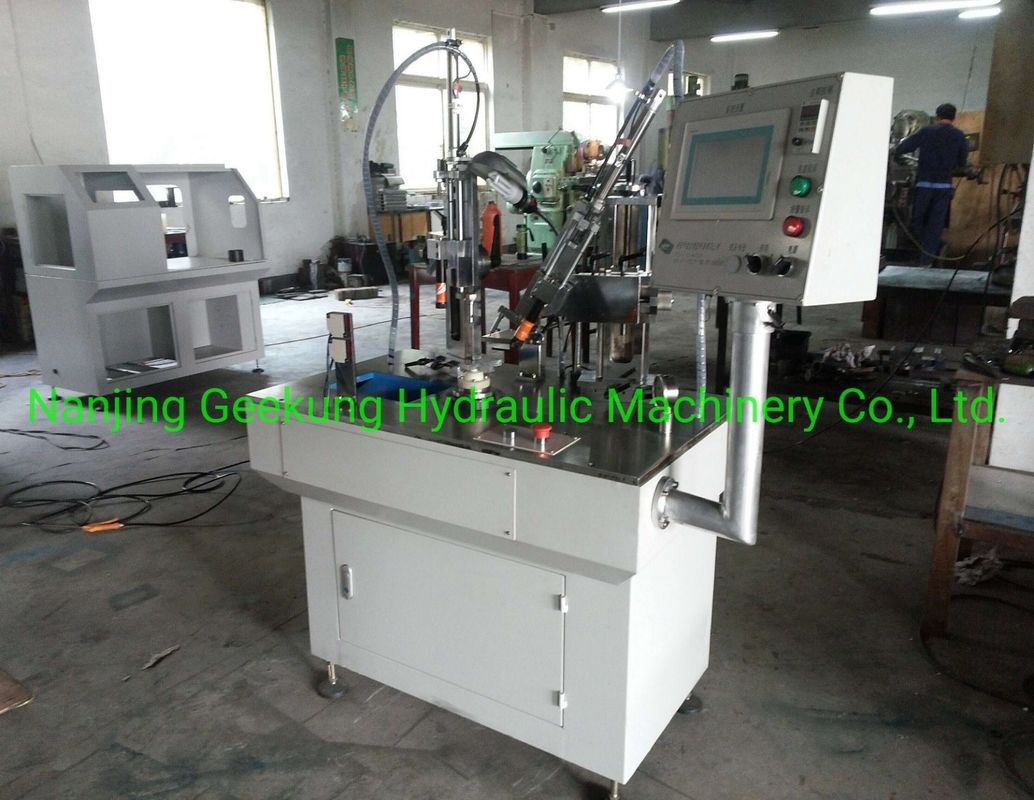

Rubber Oil Seal Trimming Machine
