1000 Sets/Year Horizontal Rubber Cup Seal Trimming Machine with Horizontal Structure

Large Image : 1000 Sets/Year Horizontal Rubber Cup Seal Trimming Machine with Horizontal Structure

Product Details:

Place of Origin:	China
Brand Name:	Mixer
Certification:	CE

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Packaging Details:	wooden case package
Delivery Time:	20-30days
Payment Terms:	T/T
Supply Ability:	30sets per months

Contact Now

1000 Sets/Year Horizontal Rubber Cup Seal Trimming Machine with Horizontal Structure

Description

Model NO.:	VRT-2	Structure:	Horizontal
Color:	Customized	Vacuum System:	Yes
Transport Package:	Standard Export Wooden Case Package	Specification:	VRT-2
Trademark:	Geekung	Origin:	China
HS Code:	847780	Production Capacity:	1000 Sets/Year

Application:
Rubber Cup Seal Trimming Machine is used for kinds of rubber skeletons, rubber oil seal,rubber o ring, rubber packing cup, kinds of rubber washer and round rubber parts.
This Vacuum Rubber Seals Trimming Machine is used to trim rubber oil seal,rubber seal cup or various round rubber parts,etc,it is adaptable for kinds of rubber or silicone parts. It's application is very wide,seal diameter ranging from 10-300mm can be trimmed by this, even more bigger size can be customized.
Our vacuum rubber trimming machine features reliable&precise performance, easy adjustment and durable life.

Main technical parameter for the Rubber Cup Seal Trimming Machine:
Vacuum≤-0.035Mpa
circular run out of main spindle≤0.01mm
plane run out≤0.02mm
Speed of spindle: 0-3000r/min
cutting degree:-10°~100°
cutting range :10mm-300mm (adjustable)
Blade specification(ThickxWidexLength):2x4x75mm
Blade material:tungsten steel.
Total power comsumption: 1 KW
Voltage: 220V,single phase.
Weight: 300kg
Dimension:1020mm×700mm×1300mm

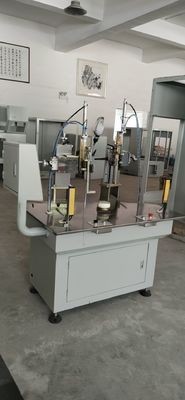

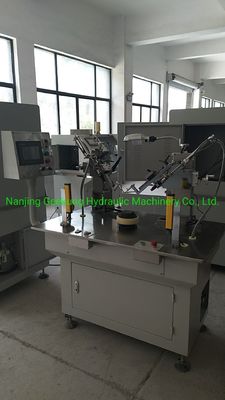

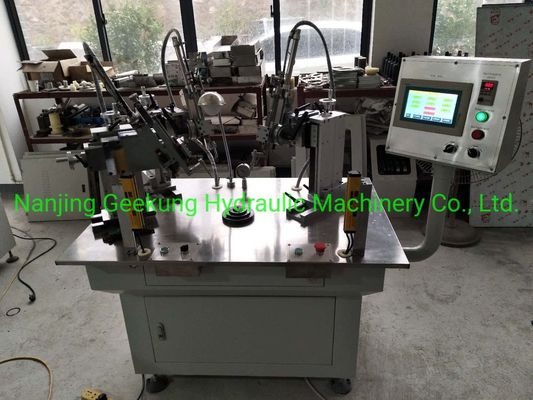

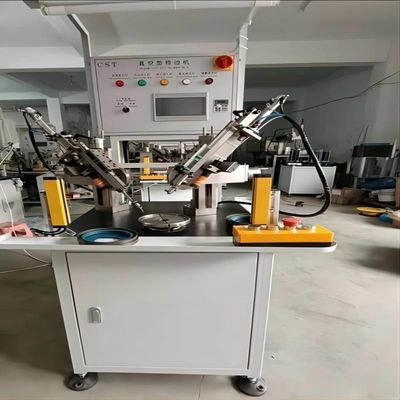

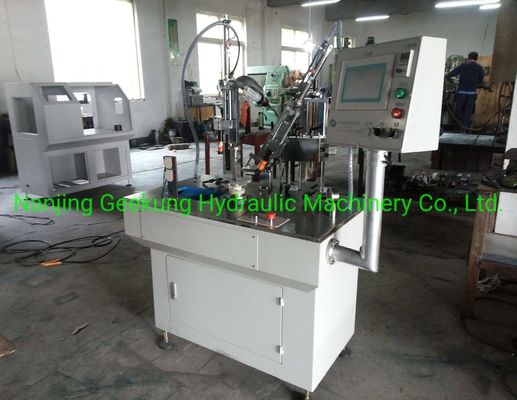

Rubber Cup Seal Trimming Machine
Components making brand&origin:

No.	Items	Maker	Origin
1	Inverter	DELTA	Taiwan, China
2	PLC	DELTA	Taiwan, China
3	Industrial Power Supplies	DELTA	Taiwan, China
4	Touch screen	DELTA	Taiwan, China
5	Solenoid Valve	JANDE	Taiwan, China
6	Solenoid Valve	JANDE	Mainland, China
7	AFC	JANDE	mainland, China
8	Pressure release valve	JANDE	mainland, China
9	Motor	Jinlong	mainland, China
10	Standard Cylinders	JANDE	mainland, China
11	Bearing	NSK	Japan
12	Switch		France
13	Relay	OMRON	Japan
14	Relay	IDEC	Japan
