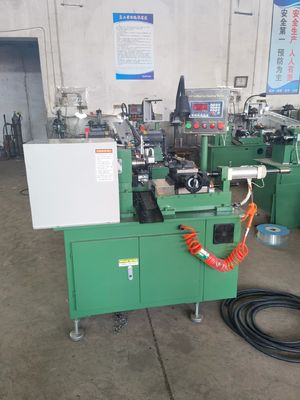

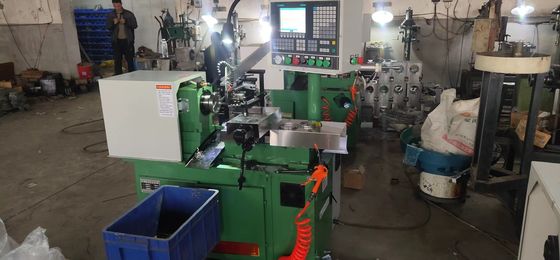

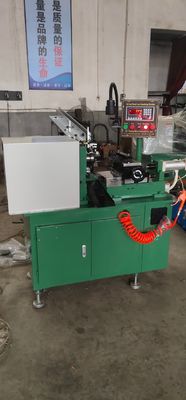

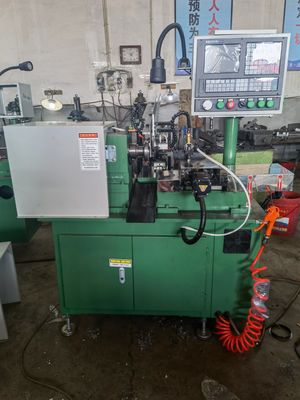

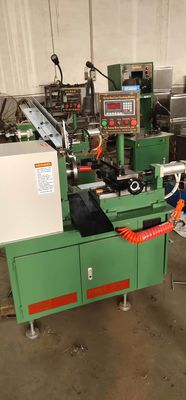

L1.55xW1xH1.5m Metal Parts Facing and Chamfering Machine for Customized Production

Large Image : L1.55xW1xH1.5m Metal Parts Facing and Chamfering Machine for Customized Production

Product Details:

Contact Now

L1.55xW1xH1.5m Metal Parts Facing and Chamfering Machine for Customized Production

Description

Model NO.:	D30-100	Transport Package:	Woode Case
Specification:	L1.55xW1xH1.5m	Trademark:	MIXER
Origin:	China	HS Code:	8458190000
Production Capacity:	500 Sets/ Year

Metal Parts Facing & Chamfering Machine:

It is applicable for facing & chamfering of metal parts such as metal case,metal shell,metal sleeve,metal cup.
1.Automatic Feeding of Metal Cases on a Die for Facing or Chamfering. High Efficiency & precise processing.

2.Loading the Metal Cases manually in line in the feeding conveyor→ Metal Cases are delivered forward by the Conveyor → Robot Grip & Feeds Metal Case on the Collet → Automatic Facing or Chamfering→Finished Metal Cases are ejected out.

Technical specification:

Model:D30-100
Spindle spec: 0640
Motor power: 2.2KW-1450 RPM
Inverter: EM730-2.2KW
Spindle speed: 0-1200 RPM
Power system: pneumatic
Control system: single board computer microcomputer control
Processing range: diameter 30-100mm, height 5-30mm
Scope of application: flat machining&chamfering of round workpieces
Processing speed: 1000 PCS/Hr
Power supply: AC380V/50HZ
Dimension: L1.5xW1xH1.45 m
Weight:420KG
