Product Details:
|
| Model NO.: | JC-YCB200T | Structure: | Vertical |
|---|---|---|---|
| Transport Package: | Stretch Film Package And Loaded In Whole Container | Specification: | 200T |
| Trademark: | Geekung | Origin: | China |
| HS Code: | 8477590000 | Production Capacity: | 1000 Sets/Year |

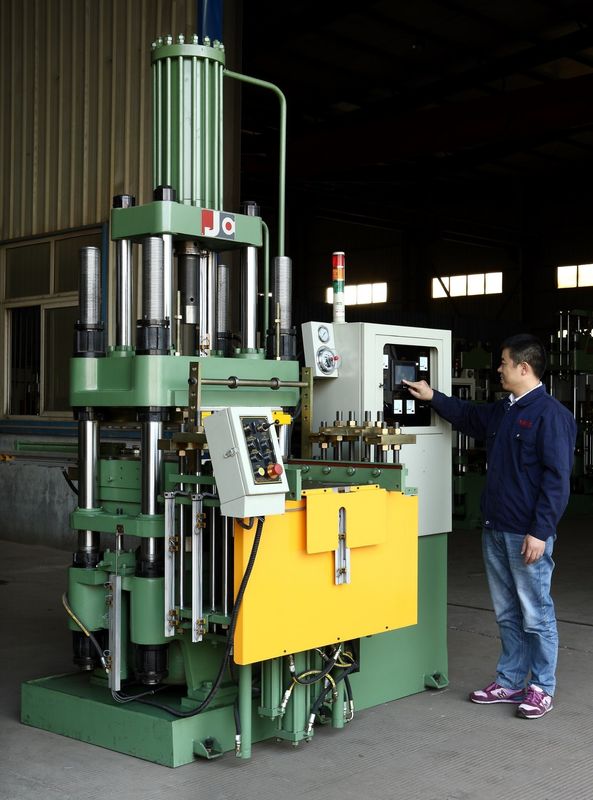

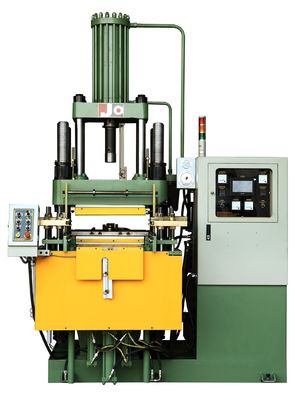

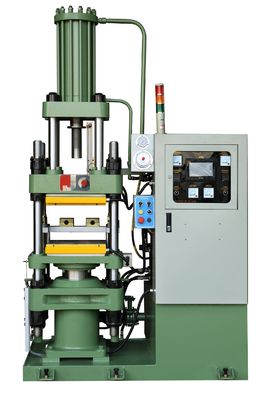

Rubber Transfer type Molding Machine (KAUÇUK TRANSFER PRESS MAKİNESİ) can produce most of the products which can be produced by Rubber Injection Molding Machine,it can be regarded as an economic and simplified injection moldingmachine. It can be used for production of some complex shapes, metal insert rubber products and other rubber molding products with high precision and high performance requirements.
| Model | JC-YCB63T | JC-YCB100T | JC-YCB200T | JC-YCB300T | JC-YCB350T | JC-YCB500T |
| Tonnage | 63T | 100T | 200T | 300T | 350T | 500T |
| Max.system pressure | 21 Mpa | 21 Mpa | 21 Mpa | 21 Mpa | 21 Mpa | 21 Mpa |
| Rapid Clamping speed | ≥60mm/s | ≥60mm/s | ≥60mm/s | ≥60mm/s | ≥50mm/s | ≥50mm/s |
| Platen size(mm) | 350x350 400x400 | 450x450 500x500 | 510x540 600x550 | 700x650 | 700x700 | 700x700 800x800 950x800 |
| Max.daylihgt opening(mm) | 350 | 350 | 400 | 400 | 400 | 400 |
| Max.temperature(ºC) | 250 | 250 | 250 | 250 | 250 | 250 |
| Material barrel size(mm) | φ70x215 | φ80x255 | φ90x290 | φ110x355 | φ110x355 | φ130x445 |
| Injection pressure (Mpa) | 60 | 60 | 60 | 100 | 100 | 100 |
| Injection stroke(mm) | 320 | 350 | 380 | 450 | 450 | 580 |
| Max.ejector force | 60KN | 60KN | 60KN | 100KN | 100KN | 100KN |
| Ejector mechanism (optional) | 2TR/3RT/4RT | 2TR/3RT/4RT | 2TR/3RT/4RT | 2TR/3RT/4RT | 2TR/3RT/4RT | 2TR/3RT/4RT |
| Ejector stroke(mm) | 250 | 250 | 300 | 350 | 400 | 450 |
| Motor power(KW) | 5.5 | 5.5 | 7.5 | 7.5 | 11 | 13 |
| Heating power(KW) | 9.6 | 9.6 | 18.6 | 20.6 | 20.6 | 27.8 |
| Dimension(LxWxH:mm) | 1600x1900x3000 | 1700x2100x3100 | 1950x2300x3250 | 2150x2600x3900 | 2550x3600x5250 | 2750x4200x5950 |
| Oil tank capacity(Liters) | 160 | 270 | 320 | 350 | 400 | 600 |
