Product Details:
|
| Model NO.: | XQ-600 | Structure: | Horizontal |
|---|---|---|---|
| Transport Package: | Wooden Case | Trademark: | Geekung |
| Origin: | China | HS Code: | 8477800000 |
| Production Capacity: | 500sets/Year |

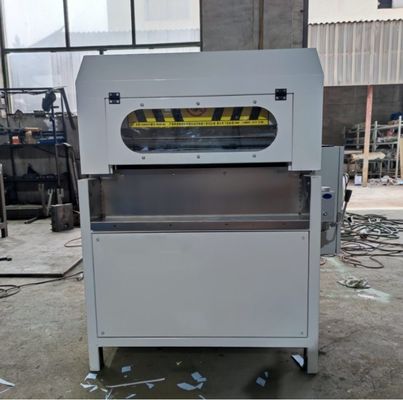

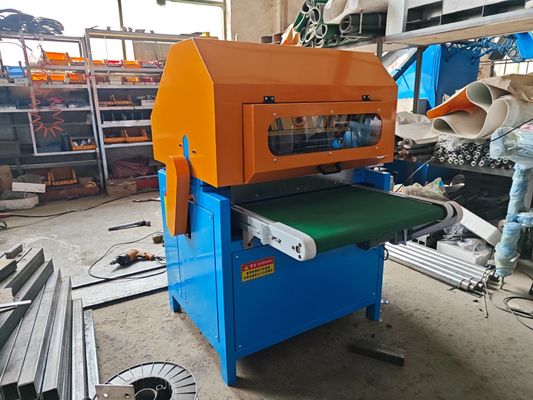

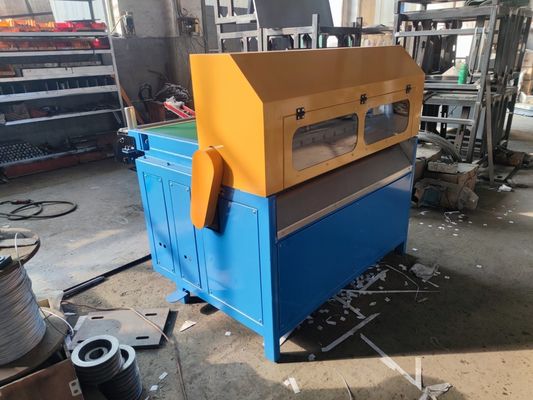

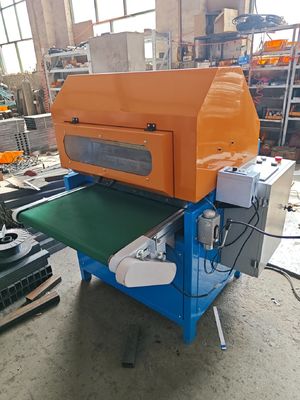

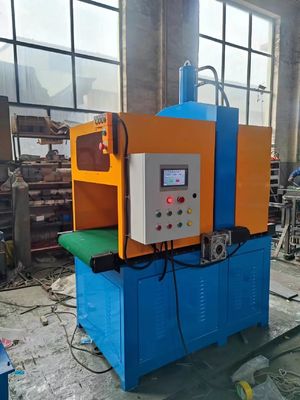

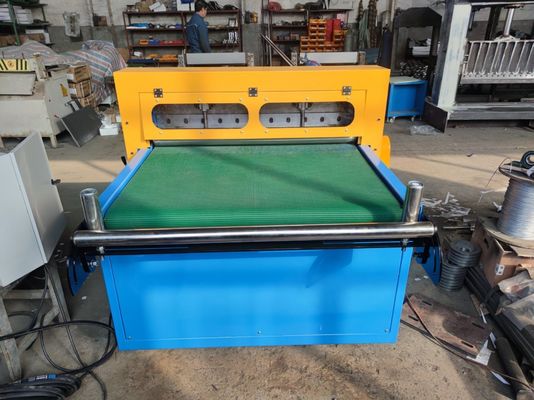

1.Our "Rubber Strip Cutting Machine" is optimized in structure.With glass plates positioning in front makes the operation more secure. Feeding platform is made of stainless steel.
| Model | XQ-450 | XQ-600 | XQ-800 | XQ-1000 |
| Max. feeding rubber width(mm) | 450 | 600 | 800 | 1000 |
| Max. cutting rubber thickness(mm) | 20 | 20 | 20 | 20 |
| Max. cut stroke (strip width:mm) | 50-70 | 50-70 | 50-70 | 50-70 |
| Cut efficiency | 86 times/min | 86 times/min | 86 times/min | 86 times/min |
| Cut precision | ±0.1mm | ±0.1mm | ±0.1mm | ±0.1mm |
| Motor power(KW) | 1.5 | 1.5 | 3 | 3 |
| Dimension(LxWxH:mm) | 1050x700x1100 | 1150x850x1100 | 1400x1100x1200 | 1450x1240x1230 |
| Weight(Kg) | 500 | 750 | 840 | 970 |
We supply quick after sales service, including online consultation,instruction and also onsite face-face service if required by the clients.
We have professtional after sales serivce team who can give you satisfactory quick response,including technical questions,trouble-shooting,installation,etc.
Our business principle is that :
Move ahead along with the spirit of "Responsibility& Sincerity for Customers" and "Cooperative&Enterprising Team" to "Mold a Better Future Together ".
It is our promiste and duty to execute the 3 No worries for clients:
No worries before order,
No worries after order,
No worries in produciton.
Tel: 86-025-52631617
