| Model NO.: | 150T | Structure: | Vertical |
|---|---|---|---|
| Transport Package: | Stretch Film Package Loaded In Whole Container | Specification: | 150T |
| Trademark: | Geekung | Origin: | China |
| HS Code: | 8477590000 | Production Capacity: | 1000 Sets/Year |

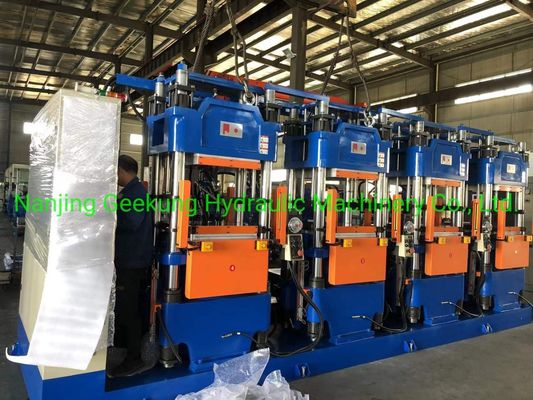

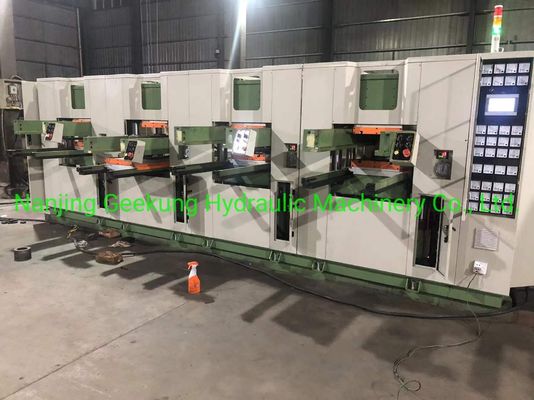

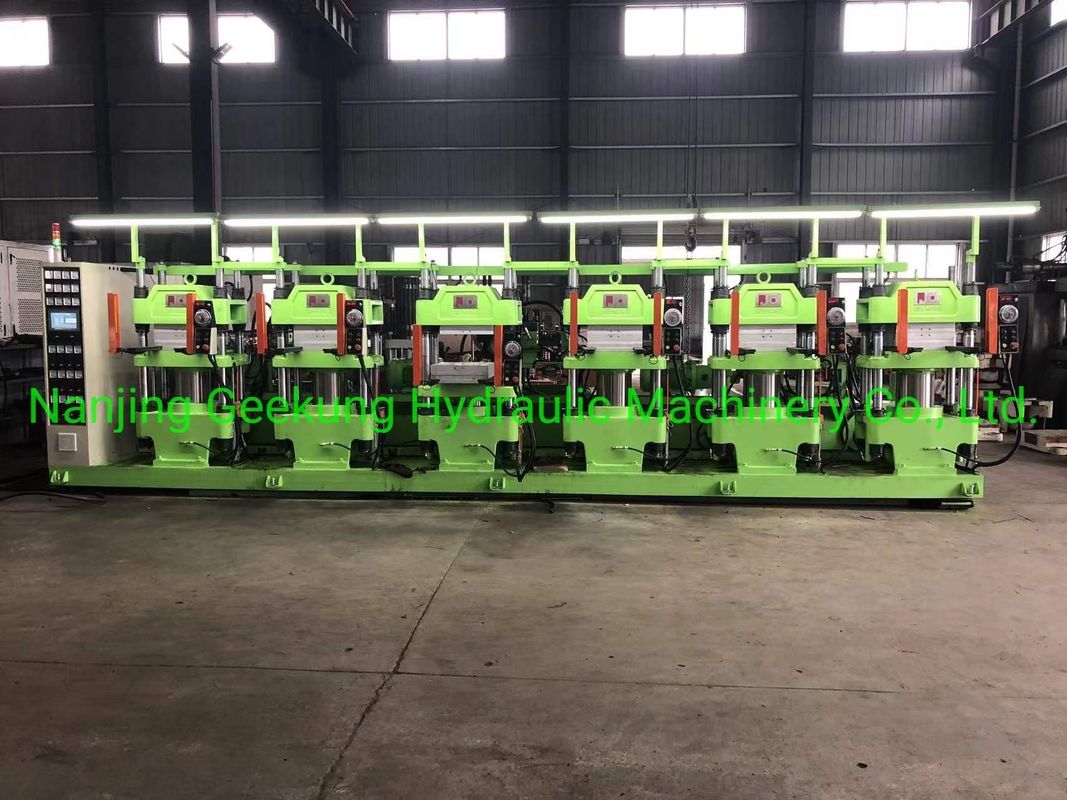

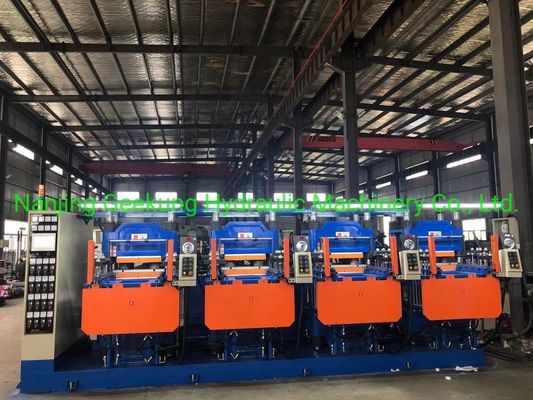

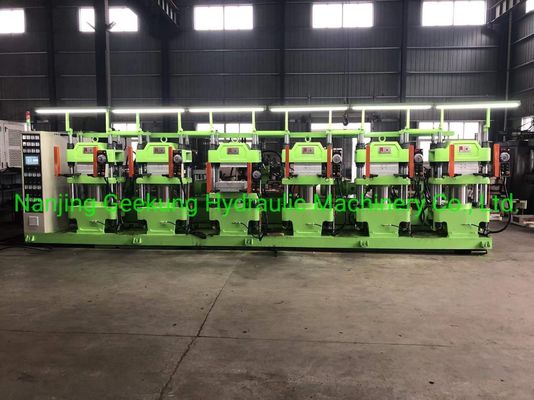

This is a rubber sole compression molding vulcanizing machine, with 6 stations sharing one PLC control system,3 motors&pumps, each motor&pump drive 2 stations. Bottom mold plate can move in and out automatically for easy operation.
This 6 stations type vulcanization molding press machine is specially developed for rubber sole production,which improves the productivity greatly.
Automatic Rubber Compression Moulding Machine is one of our major products among our hydraulic vulcanizingmachine series.
"Geekung" is the famous brand in China for rubber&silicone Rubber Compression Moulding Machine,made with premium components and strict QC management,featuring high quality&reliable operation,durable service life,our rubber compression moulding machine are being sold very popular across China and also were exported to many other counties such as USA,Turkey,India,Mexico,etc,enjoying good reputation among our worldwide customers.
Technical specification:
| 1. | TYPE | Four columns type, 6 working stations sharing one control panel, each station can be operated separately. Automatic bottom mold plate move-in-out |
| 2. | CLAMPING FORCE | 150 TON |
| 3. | MAIN RAM DIAMETER | 300mm |
| 4. | STROKE OF MAIN RAM | 275mm |
| 5. | DAYLIGHT OPENING | 300~350mm |
| 6. | HEATING PLATEN SIZE | 450x450mm |
| 7. | MAX. SYSTEM PRESSURE | 21 Mpa |
| 8. | WAY OF HEATING | Electric heating |
| 9. | ELECTRIC HEATING POWER | 8.8 KW*6 |
| 10. | MOTOR POWER | 7.5KW*3 |
| 11. | TOTAL POWER | 75 KW |
| 12. | WORKING DAYLIGHT | 01 |
| 13. | WAY OF MOLD OPEN | 2 RT (top mold is fixed onto the top heating plate,bottom mold fixed onto the bottom heating plate,after opening, bottom mold can move out) |
| 14. | Dimension (m) | L8xW2.2XH2.2 |
| 15. | WEIGHT (ton) | 18 |
150T is just a reference model for the rubber sole compression molding machine, more sizes&capacity can be customized.
