| Model NO.: | 150T | Structure: | Vertical |
|---|---|---|---|
| Lead Time: | 60 Days | Transport Package: | Stretch Film Package Loaded In Whole Container |
| Specification: | 150T | Trademark: | Geekung |
| Origin: | China | HS Code: | 8477590000 |
| Production Capacity: | 1000 Sets/Year |

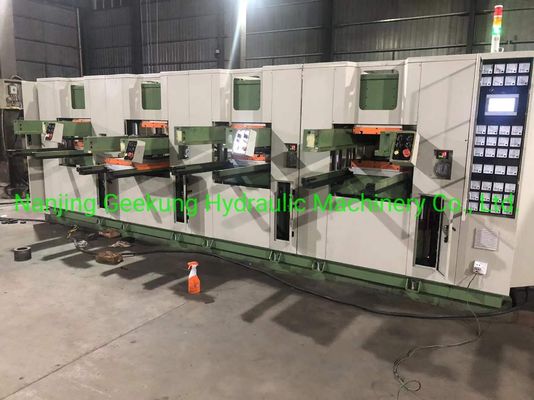

This is a Compression Molding Machine for Rubber Sole, with 6 stations sharing one PLC control system,3 motors&pumps, each motor&pump drive 2 stations. Bottom mold plate can move in and out automatically for easy operation.

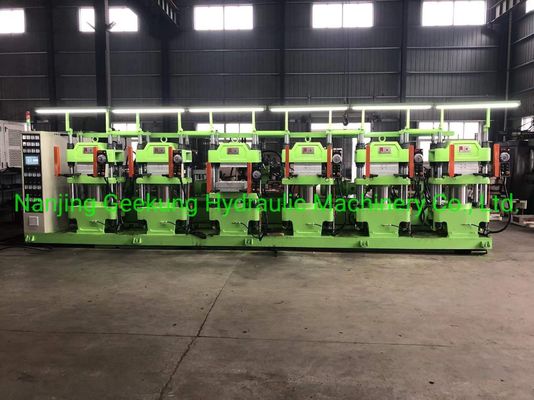

This 6 stations type vulcanization molding press machine is specially developed for rubber sole production,which improves the productivity greatly.
Compression Molding Machine for Rubber Sole is one of our major products among our hydraulic vulcanizingmachine series.
"Geekung" is the famous brand in China for rubber&silicone Rubber Compression Moulding Machine,made with premium components and strict QC management,featuring high quality&reliable operation,durable service life,our rubber compression moulding machine are being sold very popular across China and also were exported to many other counties such as USA,Turkey,India,Mexico,etc,enjoying good reputation among our worldwide customers.
Technical specification:
| 1. | TYPE | Four columns type, 6 working stations sharing one control panel, each station can be operated separately. Automatic bottom mold plate move-in-out |
| 2. | CLAMPING FORCE | 150 TON |
| 3. | MAIN RAM DIAMETER | 300mm |
| 4. | STROKE OF MAIN RAM | 275mm |
| 5. | DAYLIGHT OPENING | 300~350mm |
| 6. | HEATING PLATEN SIZE | 450x450mm |
| 7. | MAX. SYSTEM PRESSURE | 21 Mpa |
| 8. | WAY OF HEATING | Electric heating |
| 9. | ELECTRIC HEATING POWER | 8.8 KW*6 |
| 10. | MOTOR POWER | 7.5KW*3 |
| 11. | TOTAL POWER | 75 KW |
| 12. | WORKING DAYLIGHT | 01 |
| 13. | WAY OF MOLD OPEN | 2 RT (top mold is fixed onto the top heating plate,bottom mold fixed onto the bottom heating plate,after opening, bottom mold can move out) |
| 14. | Dimension (m) | L8xW2.2XH2.2 |
| 15. | WEIGHT (ton) | 18 |
150T is just a reference model for the Compression Molding Machine for Rubber Sole,more sizes&capacity can be customized.
We supply quick after sales service, including online consultation,instruction and also onsite face-face service if required by the clients.
We have professtional after sales serivce team who can give you satisfactory quick response,including technical questions,trouble-shooting,installation,etc.
