Advanced 150T Automatic Hot Vulcanizing Press for Rubber Sole 1000 Sets/Year

Advanced 150T Automatic Hot Vulcanizing Press for Rubber Sole 1000 Sets/Year

Advanced 150T Automatic Hot Vulcanizing Press for Rubber Sole 1000 Sets/Year
Advanced 150T Automatic Hot Vulcanizing Press for Rubber Sole 1000 Sets/Year Advanced 150T Automatic Hot Vulcanizing Press for Rubber Sole 1000 Sets/Year Advanced 150T Automatic Hot Vulcanizing Press for Rubber Sole 1000 Sets/Year Advanced 150T Automatic Hot Vulcanizing Press for Rubber Sole 1000 Sets/Year Advanced 150T Automatic Hot Vulcanizing Press for Rubber Sole 1000 Sets/Year Advanced 150T Automatic Hot Vulcanizing Press for Rubber Sole 1000 Sets/Year

Large Image :  Advanced 150T Automatic Hot Vulcanizing Press for Rubber Sole 1000 Sets/Year

Product Details:
Brand Name: Geekung
Payment & Shipping Terms:
Payment Terms: T/T

Advanced 150T Automatic Hot Vulcanizing Press for Rubber Sole 1000 Sets/Year

Description
Model NO.: 150T Structure: Vertical
Transport Package: Stretch Film Package Loaded In Whole Container Specification: 150T
Trademark: Geekung Origin: China
HS Code: 8477590000 Production Capacity: 1000 Sets/Year

Product Description

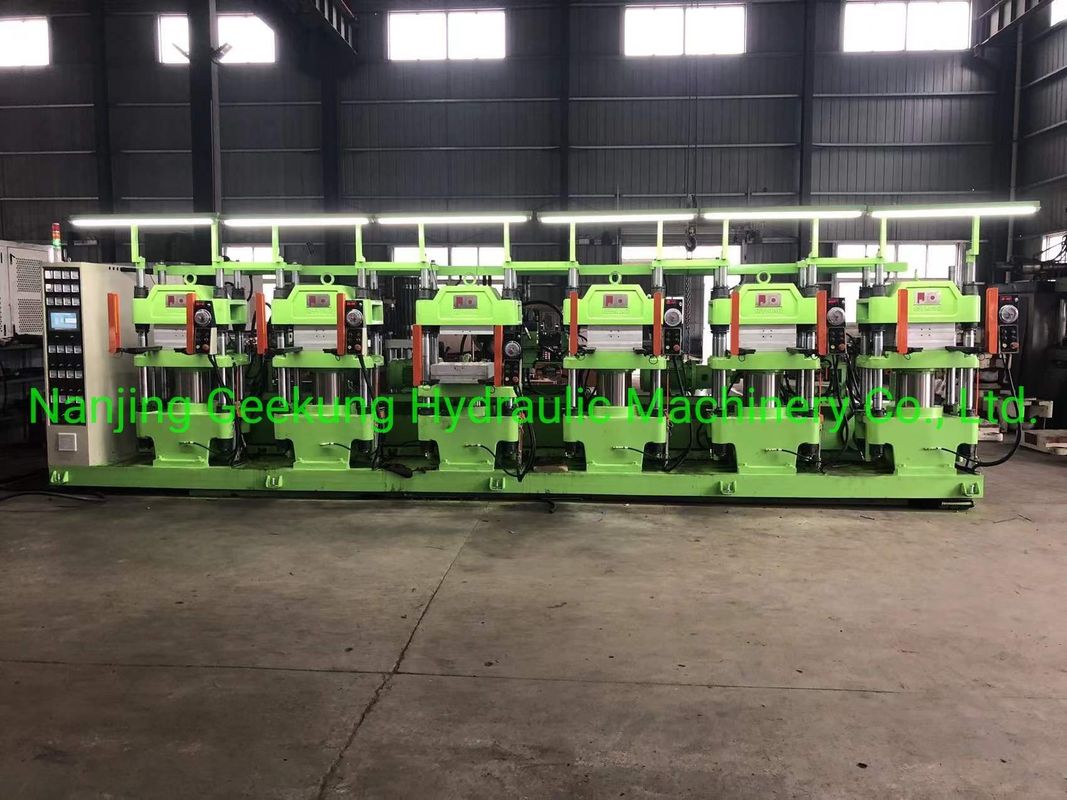

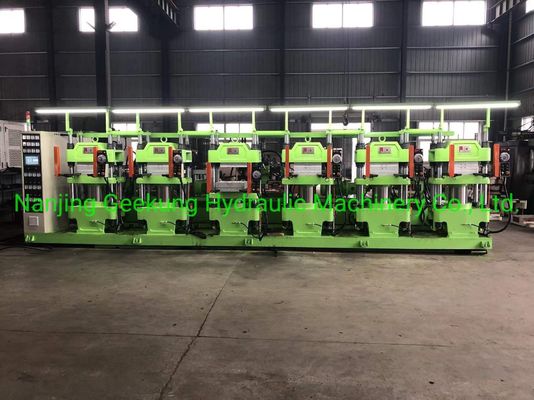

This is a Automatic Hot Vulcanizing Press for Rubber Sole, with 6 stations sharing one PLC control system,3 motors&pumps, each motor&pump drive 2 stations. Bottom mold plate can move in and out automatically for easy operation.This 6 stations type vulcanization molding press machine is specially developed for rubber sole production,which improves the productivity greatly.

Automatic Hot Vulcanizing Press for Rubber Sole

 Compression Molding Press for Rubber Sole is one of our major products among our hydraulic vulcanizingmachine series.

"Geekung"  is the famous brand in China for rubber&silicone Rubber Compression Moulding Machine,made with premium components and strict QC management,featuring high quality&reliable operation,durable service life,our rubber compression moulding machine are being sold very popular across China and also were exported to many other counties such as USA,Turkey,India,Mexico,etc,enjoying good reputation among our worldwide customers.

Technical specification:

1. TYPE Four columns type, 6 working stations sharing one control panel, each station can be operated separately. Automatic bottom mold plate move-in-out
2. CLAMPING FORCE 150 TON
3. MAIN RAM DIAMETER 300mm
4. STROKE OF MAIN RAM 275mm
5. DAYLIGHT OPENING 300~350mm
6. HEATING PLATEN SIZE 450x450mm
7. MAX. SYSTEM PRESSURE 21 Mpa
8. WAY OF HEATING Electric heating
9. ELECTRIC HEATING POWER 8.8 KW*6
10. MOTOR POWER 7.5KW*3
11. TOTAL POWER 75 KW
12. WORKING DAYLIGHT 01
13. WAY OF MOLD OPEN 2 RT (top mold is fixed onto the top heating plate,bottom mold fixed onto the bottom heating plate,after opening, bottom mold can move out)
14. Dimension (m) L8xW2.2XH2.2
15. WEIGHT (ton) 18

 150T is just a reference model for the Automatic Hot Vulcanizing Press for Rubber Sole,more sizes&capacity can be customized.


Exhibition

Automatic Hot Vulcanizing Press for Rubber SoleAutomatic Hot Vulcanizing Press for Rubber SoleAutomatic Hot Vulcanizing Press for Rubber Sole

Packaging & Shipping

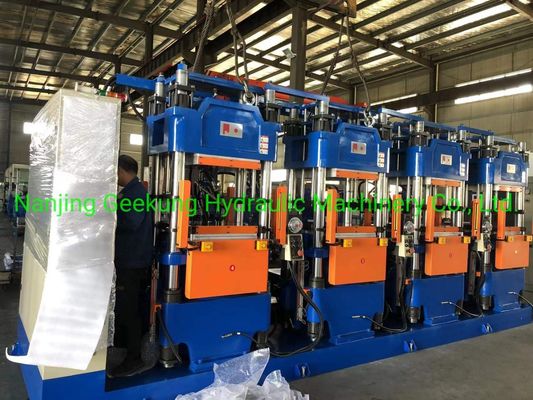

The rubber vulcanizing press machines are packaged well by the stretch film first,and fixed professionally by the strong (solid) steel wire ropes,ensuring the machines remain still and won't slide in the container during the long distance of land and sea transportation, and reach the clients factories safely.
Automatic Hot Vulcanizing Press for Rubber SoleAutomatic Hot Vulcanizing Press for Rubber SoleAutomatic Hot Vulcanizing Press for Rubber SoleAutomatic Hot Vulcanizing Press for Rubber SoleAutomatic Hot Vulcanizing Press for Rubber SoleAutomatic Hot Vulcanizing Press for Rubber Sole

After Sales Service

We supply quick after sales service, including online consultation,instruction and also onsite face-face service if required by the clients.
We have professtional after sales serivce team who can give you satisfactory quick response,including technical questions,trouble-shooting,installation,etc.
Our business principle is that :
Move ahead along with the spirit of "Responsibility& Sincerity for Customers" and "Cooperative&Enterprising Team" to "Mold a Better Future Together ".
It is our promise and duty to execute the 3 No worries for clients:
No worries before order,
No worries after order,
No worries in produciton.
Automatic Hot Vulcanizing Press for Rubber SoleAutomatic Hot Vulcanizing Press for Rubber Sole
