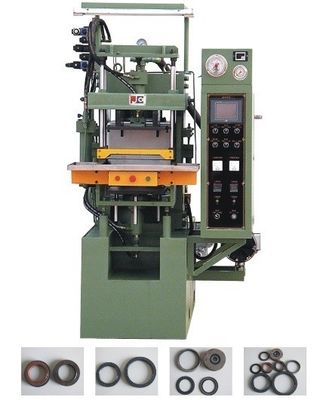

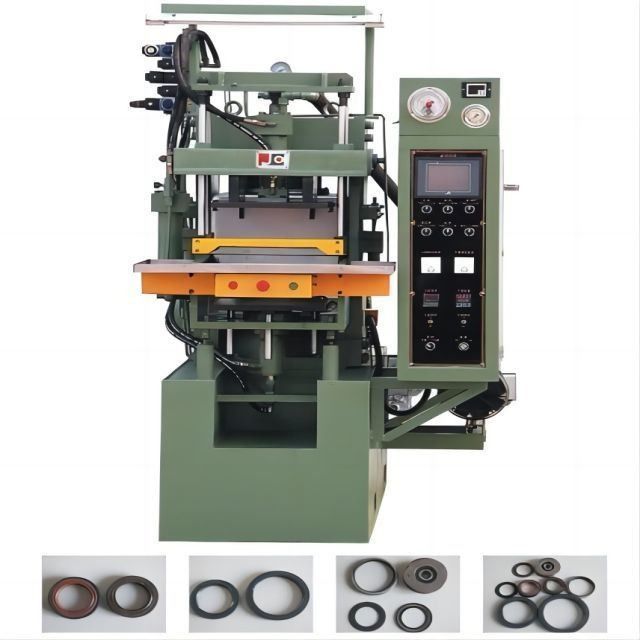

Rubber Oil Seal Hydraulic Vulcanizing Press

Rubber Oil Seal Hydraulic Vulcanizing Press
Rubber Oil Seal Hydraulic Vulcanizing Press Rubber Oil Seal Hydraulic Vulcanizing Press

Large Image :  Rubber Oil Seal Hydraulic Vulcanizing Press

Product Details:
Brand Name: Geekung
Payment & Shipping Terms:
Payment Terms: T/T
Contact Now

Rubber Oil Seal Hydraulic Vulcanizing Press

Description
Model NO.: 150T Structure: Vertical
Color: Customized Transport Package: Plastic Film Package Loaded In Whole Container
Specification: 150T Trademark: Geekung
Origin: China HS Code: 8477590000
Production Capacity: 1000 Sets/Year

Hydraulic Vulcanizing Machine for Rubber Oil Seal is a specially developed compression molding machine to produce kinds of oil seals for automobile,machineries.bearings,etc.It features automated operation and high efficiency to produce rubber oil seals.
Rubber Oil Seal Hydraulic Vulcanizing PressFeatures for our Hydraulic Vulcanizing Machine for Rubber Oil Seal:
1.The world-class brand vacuum pump&vacuum chamber provide highly efficient vacuum suction effect for the entire mold inside the heating platen, making the rubber materials more dense and free of air bubble,ensuring perfect final finished rubber products to be made. Also because of enclosed vacuum chamber,the temperatuer is more well preserved and stable,saving heating energy and improve the curing performance.
2.Our Hydraulic Vulcanizing Machine for Rubber Oil Seal is installed with integrated hydraulic circuit providing various piping functions on the circuit boards, reducing piping to a minimum. The oil cooler ensures long service life of the circuit valves.
3.Hydraulic pressure & speed control system adopt optimized and advanced proportional pressure valve and proportional flux valve with loop circuit feedback control from PLC,realizing reliable and smooth "high speed-low speed "clamping operation.
4.The main components of the Hydraulic Vulcanizing Machine for Rubber Oil Seal, like the top base,middle base and cylinder body all are made of premium ductile cast iron,ensuring the durable high stability of the machine even after many years service,won't have the problem of deformation.
5.Parallelism of hot plates is controlled with the tolerance of 0.03mm per 300mm.
6.The temperature tolerance of each point on the upper and lower plates is within ±2ºC. Auto PID temperature calibration.
7.Preheating function is available to set on the HMI (touch screen).
8.Replacement time of lubricating oil can be set up from touch screen and auto alarm.
9.Time-counting for machine working time.Safety interlock for movement, fool-proof design. Automatic abnormal alarm function.
10.PLC monitor entire production,hundreds of production recipes can be saved and USB data transmission conveniently.Remote Touch screen password setting.
11.Remote control provides more convenient after sales service,even the customers are far away in another country, our engineer can reach your control system to conduct necessary maintenance or update Automatic Compression Molding Machine for Rubber Oil Seal with the newest system.
12.Pressure protection design ensure the safe working of the machine.
13.Safety light curtain device to prevent operators from potential injury.
14.Automatic retrieval of machine faults, automatic display of machine action positioning.
15.All hydraulic and electric control components for our Automatic Vulcanizing Press for Rubber Oil Seal adopts world-class famous brand.
16.Various high efficient rubber product demoulding devices are available for options, such as sliding plate, side air jig unit,mold turning, bottom ejector,hydraulic core lifters,etc,depends on your product strucutre, you can choose 2RT, 3RT or 4RT system to take out the final products automatically from the mold.
 17.Single station,double stations or multi-stations are available for options..
18. Our Hydraulic Vulcanizing Machine for Rubber Oil Seal is hydraulic-power-mechanics heavy duty structure desgin,whole machine is more stable operation, and also solid and durable.
 19.CE safety standard option is available.

Technical specification:
Clamping force (tonnage) Main piston diameter Platen size
(mm)		 Mold holder
size(mm)		 Main piston stroke(mm) Max.daylight opening (mm) Power consumption
(KW)
80T φ225 250x300
290x320		 290x320
330x330		 140 150/180 6.6
100T φ250 350x400 390x420 140 150/180 8.4
150T φ300 450x480 500x520 140 150/180 16.9
250T φ400 570x610 620x620 140 150/180 26.3

Note:The table only list the normal popular models,more sizes&capacity can be customized.
Workshop

Rubber Oil Seal Hydraulic Vulcanizing PressRubber Oil Seal Hydraulic Vulcanizing PressRubber Oil Seal Hydraulic Vulcanizing Press

Exhibition

Rubber Oil Seal Hydraulic Vulcanizing PressRubber Oil Seal Hydraulic Vulcanizing PressRubber Oil Seal Hydraulic Vulcanizing Press
