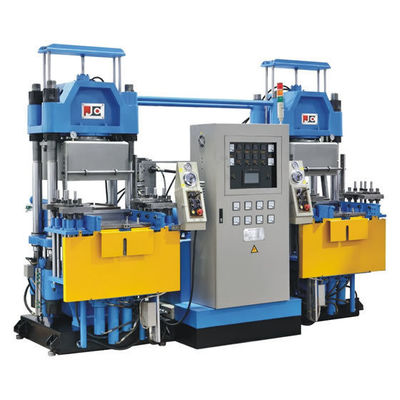

250T Hydraulic Rubber Bottle Cover Compression Molding Press with Advanced Technology

Large Image : 250T Hydraulic Rubber Bottle Cover Compression Molding Press with Advanced Technology

Product Details:

Brand Name:	Geekung
Certification:	ISO9001, CE

Payment & Shipping Terms:

Payment Terms:	T/T

Contact Now

250T Hydraulic Rubber Bottle Cover Compression Molding Press with Advanced Technology

Description

Model NO.:	250T	Transport Package:	Bubble Film Package Loaded In Whole Container
Specification:	250T	Trademark:	Geekung
Origin:	China	HS Code:	8477800000
Production Capacity:	1000 Sets/Year

"Geekung" is the famous brand in China for rubber&silicone Rubber Compression Molding Press.

The Vacuum Compression Moulding Press for Pharmaceutical Rubber Stopper is made with premium components and strict QC management,featuring high quality&reliable operation,durable service life,our rubber compression molding machine are being sold very popular across China and also were exported to many other counties such as USA,Turkey,India,Mexico,etc,enjoying good reputation among our worldwide customers.

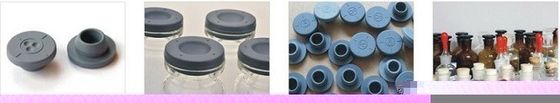

Applications: The Vacuum Compression Molding Press is developped specially for the production of the pharmaceutical butyl rubber stoppper,features high efficiency and quality products to be made.

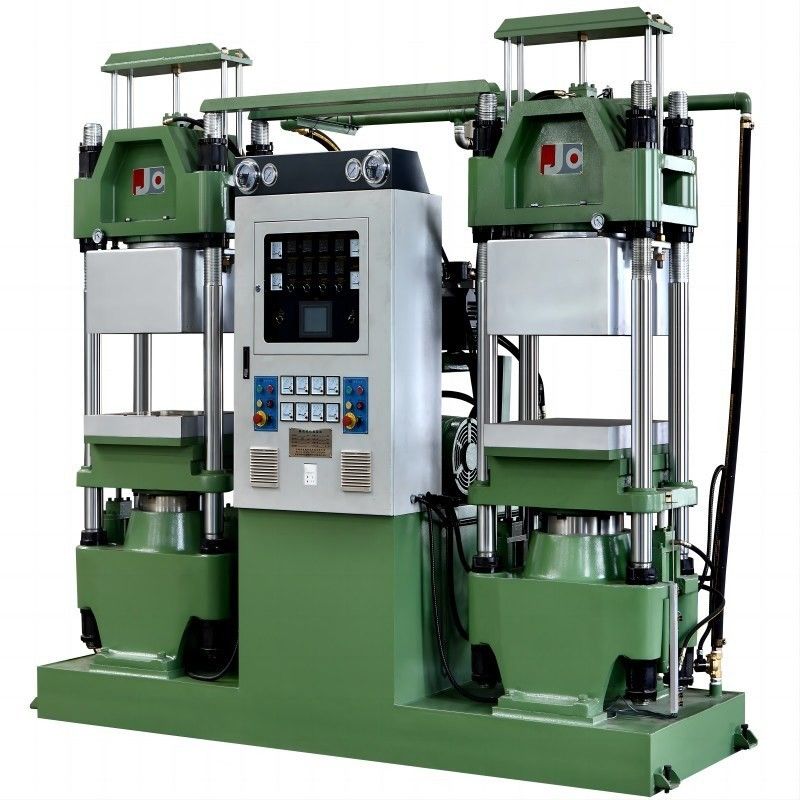

Hydraulic Rubber Bottle Cover Compression Molding Press

Features for our Vacuum Compression Moulding Press for Pharmaceutical Rubber Stopper:
1.The world-class brand vacuum pump &vacuum housing provide highly efficient vacuum suction effect for the entire mold inside the heating platen, making the rubber materials more dense and free of air,ensuring perfect final finished rubber products.
2.Our Vacuum Compression Moulding Press for Pharmaceutical Rubber Stopper is installed with integrated hydraulic circuit providing various piping functions on the circuit boards, reducing piping to a minimum. The oil cooler ensures long service life of the circuit valves.
3.Hydraulic pressure & speed control system adopt optimized and advanced proportional pressure valve and proportional flux valve with loop circuit feedback control from PLC,realizing reliable and smooth "high speed-low speed "clamping operation.
4.The main components of Vacuum Compression Moulding Press for Pharmaceutical Rubber Stopper like the top base,middle base and cylinder body all are made of premium ductile cast iron,ensuring the durable high stability of the machine even after many years service,won't have the problem of deformation.
5.Parallelism of hot plates is controlled with the tolerance of 0.03mm per 300mm.
6.The temperature tolerance of each point on the upper and lower plates is within ±2ºC. Auto PID temperature calibration.
7.Preheating function is available to set on the HMI (touch screen).
8.Replacement time of lubricating oil can be set up from touch screen and auto alarm.
9.Time-counting for machine working time.Safety interlock for movement, fool-proof design. Automatic abnormal alarm function.
10.PLC monitor entire production,1000 production recipes can be saved and USB data transmission conveniently.Remote Touch screen password setting.
11.Remote control provides more convenient after sales service,even the customers are far away in another country, our engineer can reach your control system to conduct necessary maintenance or update Geekung Vacuum Vulcanizing Press Machine with the newest system.
12.Pressure protection design ensure the safe working of the machine.
13.Safety light curtain device to prevent operators from potential injury.
14.Automatic retrieval of machine faults, automatic display of machine action positioning.
15.All hydraulic and electric control components for our Vacuum Compression Moulding Press for Pharmaceutical Rubber Stopper adopts world-class famous brand.
16.Various high efficient rubber product demoulding devices are available for options, such as sliding plate, side air jig unit,mold turning, bottom ejector,hydraulic core lifters,etc,depends on your product strucutre, you can choose 2RT, 3RT or 4RT system to take out the final products automatically from the mold.
17.Single station or double stations are available for option.
18.CE safety standard option is available.

Technical specification:

Clamping force (tonnage)	Main piston diameter (mm)	Platen size (mm)	Main piston stroke (mm)	Daylight opening (mm)	Power consumption (KW)
200T	φ355	505x510	400	500	42.9
250T	φ400	570x610	400	500	48.3
350T	φ457.2	700x700	400	500	48.3
500T	φ560	850x850	500	600	80.5

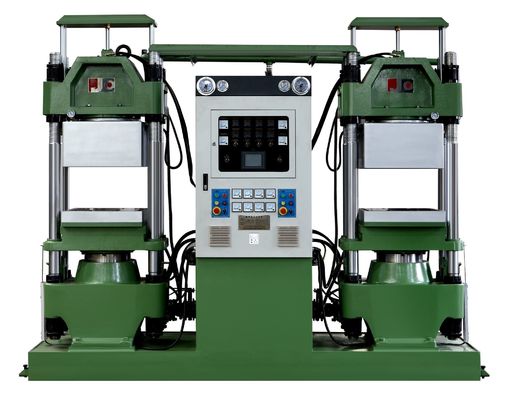

Hydraulic Rubber Bottle Cover Compression Molding Press

We supply quick after sales service, including online consultation,instruction and also onsite face-face service.
We have professtional after sales serivce team who can give you satisfactory quick response,including technical questions,trouble-shooting,installation,etc.
