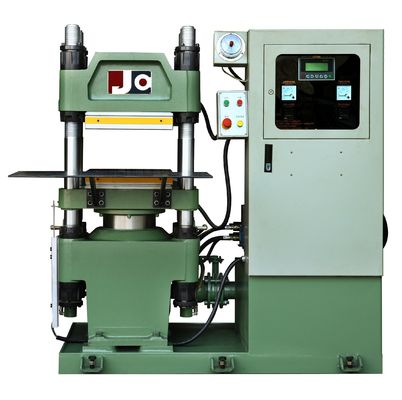

Rubber Vulcanizing Press/Vulcanizer/Hydraulic Press Machine

Large Image : Rubber Vulcanizing Press/Vulcanizer/Hydraulic Press Machine

Product Details:

Brand Name:	Geekung
Certification:	ISO9001, CE

Payment & Shipping Terms:

Payment Terms:	T/T

Contact Now

Rubber Vulcanizing Press/Vulcanizer/Hydraulic Press Machine

Description

Model NO.:	JC-XLB300T	Type:	Four-Column Hydraulic Press
Color:	Customized	Power Source:	Electric
Name:	Rubber Vulcanizing Press	Transport Package:	Bubble Film Package Loaded In Whole Container
Specification:	200T	Trademark:	Geekung
Origin:	China	HS Code:	8477590000
Production Capacity:	1000 Sets/Year

Rubber Platen Press Vulcanizing Machine is with various auto ejector functions is one of our major products among our hydraulic vulcanizing machine series.
"Geekung" is the famous brand in China forRubber Platen Press Vulcanizing Machine,our press machines are made with premium components and strict QC management,featuring high quality&reliable operation,durable service life,our rubber compression moulding machine are being sold very popular across China and also were exported to many other counties such as USA,Turkey,India,Mexico,etc,enjoying good reputation among our worldwide customers.

Applications:Rubber Platen Press Vulcanizing Machine is used for the production of making packing O-rings,keyboards,silicone medical products,food grade silicone parts,etc.

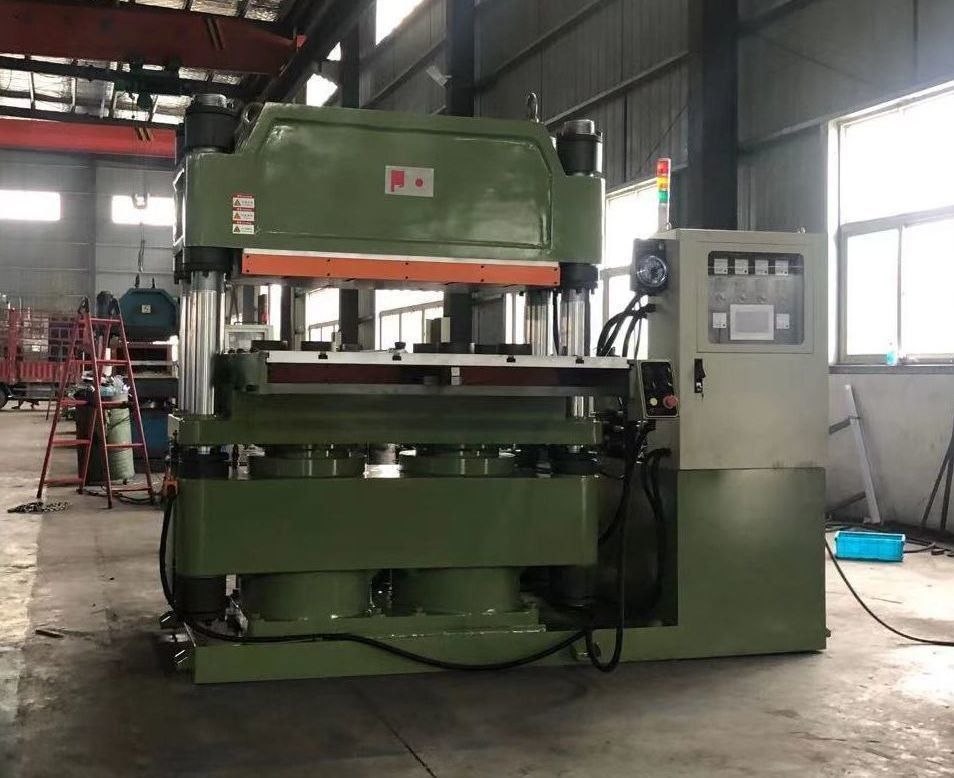

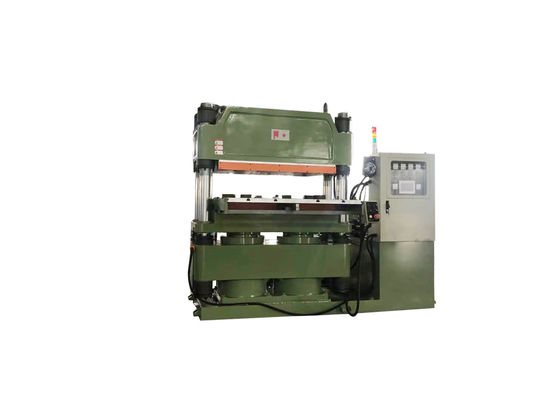

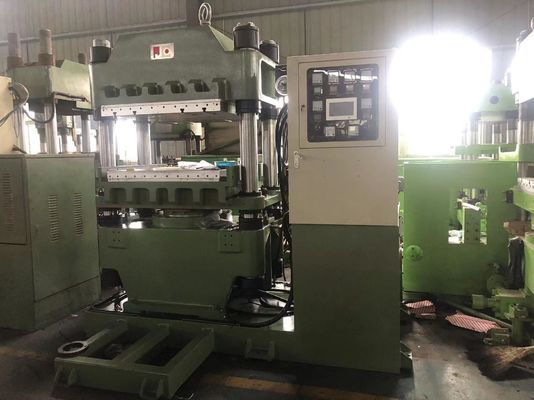

Rubber Vulcanizing Press/Vulcanizer/Hydraulic Press Machine

Features for Rubber Platen Press Vulcanizing Machine:
1.Rubber Platen Press Vulcanizing Machine is hydraulic-power-mechanics heavy duty structure desgin,whole machine is more stable operation, and also solid and durable.
2.The Rubber Platen Press Vulcanizing Machine for rubber&silicone is installed with integrated hydraulic circuit providing various piping functions on the circuit boards, reducing piping to a minimum. The oil cooler ensures long service life of the circuit valves.
3.Hydraulic pressure & speed control system adopt optimized and advanced proportional pressure valve and proportional flux valve with loop circuit feedback control from PLC,realizing reliable and smooth "high speed-low speed "clamping operation.
4.The main components of the silicone compression vulcanizing press like the top base,middle base and cylinder body all are made of premium ductile cast iron,ensuring the durable high stability of the machine even after many years service,won't have the problem of deformation.
5.Parallelism of hot plates is controlled with the tolerance of 0.03mm per 300mm.
6.The temperature tolerance of each point on the upper and lower plates is within ±2ºC. Auto PID temperature calibration.
7.Preheating function is available to set on the HMI (touch screen).
8.Replacement time of lubricating oil can be set up from touch screen and auto alarm.
9.Time-counting for machine working time.Safety interlock for movement, fool-proof design. Automatic abnormal alarm function.
10.PLC monitor entire production,hundreds of production recipes can be saved and USB data transmission conveniently.Remote Touch screen password setting.
11.Remote control provides more convenient after sales service,even the customers are far away in another country, our engineer can reach your control system to conduct necessary maintenance or update Platen Press Vulcanizing Machine for rubber&silicone with the newest system.
12.Pressure protection design ensure the safe working of the machine.
13.Safety light curtain device to prevent operators from potential injury.
14.Automatic retrieval of machine faults, automatic display of machine action positioning.
15.All hydraulic and electric control components for our rubber compression vulcanizing press adopts world-class famous brand.
16.Various high efficient rubber product demoulding devices are available for options, such as sliding plate, side air jig unit,mold turning, bottom ejector,hydraulic core lifters,etc,depends on your product strucutre, you can choose 2RT, 3RT or 4RT system to take out the final products automatically from the mold.

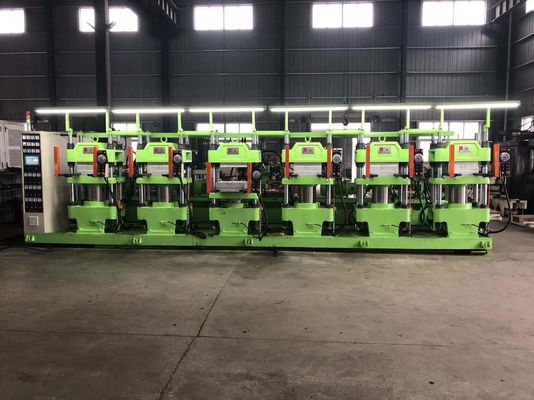

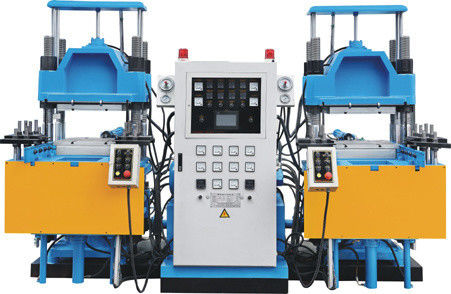

17.Single station,double stations or multi-stations are available for options.
18.CE safety standard option is available.

Technical specification:

Model	JC-XLB 63T	JC-XLB 100T	JC-XLB 200T	JC-XLB 300T	JC-XLB 350T	JC-XLB 400T	JC-XLB 500T
Tonnage	63T	100T	200T	300T	350T	400T	500T
Max.system pressure	21Mpa	21 Mpa	21 Mpa	21 Mpa	21 Mpa	21 Mpa	21 Mpa
Clamping stroke(mm)	280	280	300	300	300	300	300
Rapid clamping speed	≥60mm/s	≥60mm/s	≥60mm/s	≥50mm/s	≥50mm/s	≥50mm/s	≥50mm/s
Platen size(mm)	350x350 400x400	450x450 500x500	510x540 600x550	700x650	700x700	900x800	700x700 800x800 950x800
Max. daylight opening (mm)	350	350	350	350	350	350	350
Max.temperature(ºC)	250	250	250	250	250	250	250
Motor power(KW)	5.5	5.5	7.5	11	11	13	13
Heating power(KW)	9.6	9.6	18.6	20.6	20.6	27.8	27.8
Dimension (LxWxH:mm)	1700x1850 x1600	1750x1900 x1700	2100x2300 x2100	2300x2800 x2300	2300x2800 x2500	2700x4100 x2800	2700x4100 x3100
Oil tank capacity(Liters)	160	270	320	400	400	500	600
