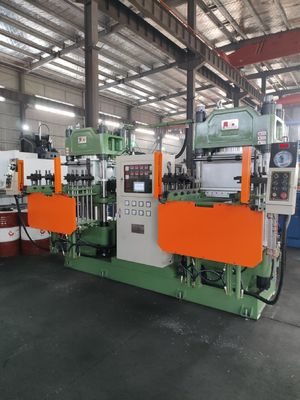

Vacuum Compression Molding Rubber Machine Vulcanization Press for O-Rings/Vacuum Curing Press

Large Image : Vacuum Compression Molding Rubber Machine Vulcanization Press for O-Rings/Vacuum Curing Press

Product Details:

Brand Name:	Geekung

Payment & Shipping Terms:

Payment Terms:	T/T

Contact Now

Vacuum Compression Molding Rubber Machine Vulcanization Press for O-Rings/Vacuum Curing Press

Description

Model NO.:	JC-200t	Transport Package:	Film Package
Specification:	200T	Trademark:	Geekung
Origin:	China	HS Code:	8477800000

"Geekung" is now the famous brand in China for rubber&silicone Vacuum Compression Molding Machine Press,made with premium components and strict QC management,featuring high quality&reliable operation,durable service life,our rubber compression molding machine are being sold very popular across China and also were exported to many other counties such as USA,Turkey,India,Mexico,etc,enjoying good reputation among our worldwide customers.

Applications: The Vacuum Vulcanizing Press Machine is ideal for the production of making rubber&silicone parts, such as O-rings,seals,keyboards,connector,bushing,rubber medical products,etc.

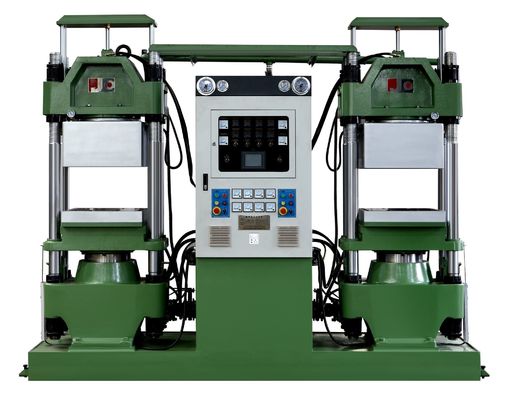

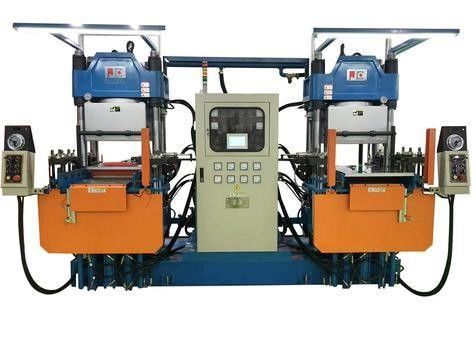

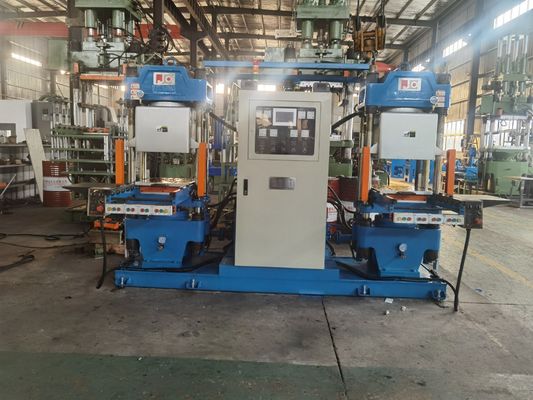

Vacuum Compression Molding Rubber Machine Vulcanization Press for O-Rings/Vacuum Curing Press

Features for our rubber compression molding press:
1.The world-class brand vacuum pump &vacuum housing provide highly efficient vacuum suction effect for the entire mold inside the heating platen, making the rubber materials more dense and free of air,ensuring perfect final finished rubber products.
2.Our Vacuum Vulcanizing Press Machines is installed with integrated hydraulic circuit providing various piping functions on the circuit boards, reducing piping to a minimum. The oil cooler ensures long service life of the circuit valves.
3.Hydraulic pressure & speed control system adopt optimized and advanced proportional pressure valve and proportional flux valve with loop circuit feedback control from PLC,realizing reliable and smooth "high speed-low speed "clamping operation.
4.The main components of the Geekung Vacuum Vulcanizing Press machine like top base,middle base and cylinder body all are made of premium ductile cast iron,ensuring the durable high stability of the machine even after many years service,won't have the problem of deformation.
5.Parallelism of hot plates is controlled with the tolerance of 0.03mm per 300mm.
6.The temperature tolerance of each point on the upper and lower plates is within ±2ºC. Auto PID temperature calibration.
7.Preheating function is available to set on the HMI (touch screen).
8.Replacement time of lubricating oil can be set up from touch screen and auto alarm.
9.Time-counting for machine working time.Safety interlock for movement, fool-proof design. Automatic abnormal alarm function.
10.PLC monitor entire production,1000 production recipes can be saved and USB data transmission conveniently.Remote Touch screen password setting.
11.Remote control provides more convenient after sales service,even the customers are far away in another country, our engineer can reach your control system to conduct necessary maintenance or update Geekung Vacuum Vulcanizing Press Machine with the newest system.
12.Pressure protection design ensure the safe working of the machine.
13.Safety light curtain device to prevent operators from potential injury.
14.Automatic retrieval of machine faults, automatic display of machine action positioning.
15.All hydraulic and electric control components for our rubber&silicone Vacuum Vulcanizing Press Machine adopts world-class famous brand.
16.Various high efficient rubber product demoulding devices are available for options, such as sliding plate, side air jig unit,mold turning, bottom ejector,hydraulic core lifters,etc,depends on your product strucutre, you can choose 2RT, 3RT or 4RT system to take out the final products automatically from the mold.
17.Single station or double stations are available for option.
18.CE safety standard option is available.

Technical specification:

Model	Clamping Force (ton)	Main Ram Diameter (mm)	Heating Platen size(mm)	Stroke of Main Ram (mm)	Daylight (mm)	Power Consumption (single) (kw)	Power Consumption (Double) (kw)
JC-PV100T	100	Ø250	405x430	250	300	14.0	24.3
JC-PV150T	150	Ø300	450x480	250	300	16.4	32.8
JC-PV200T	200	Ø355	505x510	250	300	23.1	42.4
JC-PV250T	250	Ø400	570x610	250	300	25.8	47.8
JC-PV350T	350	Ø457.2	700x700	250	300	25.8	47.8
JC-PV500T	500	Ø560	700x700	250	300	29.5	59.0
			850x850			40.0	80.0
			1000x1000			49.6	99.2
