Product Details:
|
| Condition: | New | Video Outgoing-inspection: | Provided |
|---|---|---|---|
| Machinery Test Report: | Provided | Marketing Type: | Ordinary Product |
| Warranty Of Core Components: | 1 Year | Core Components: | Engine, Bearing, Motor, Spindle |
| Application: | Metal Workpiece | Power (kW): | 2.2 |
| Warranty: | 1 Year | Key Selling Points: | Automatic |
| Weight (KG): | 420 KG | Applicable Industries: | Oil Seal Factory, Metal Case Factory, Metal Workpiece Factory |
| Showroom Location: | Turkey, India | Port: | Shanghai |

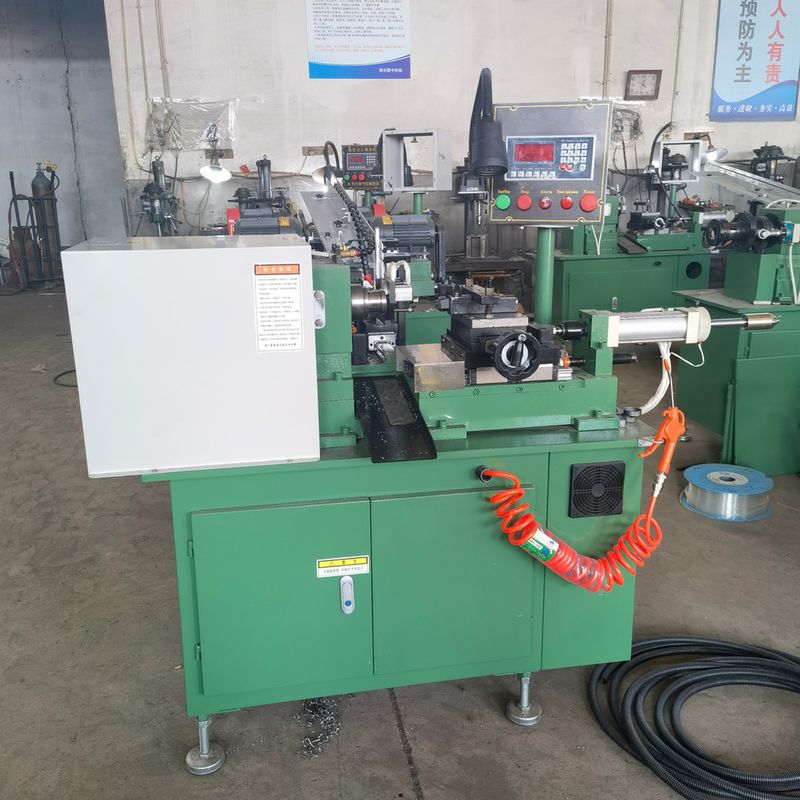

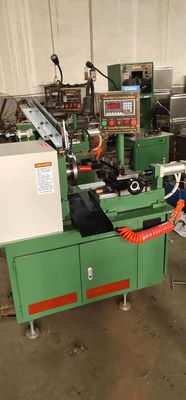

Auto Metal Sleeve Facing & Chamfering Machine:
It is applicable for facing & chamfering of metal parts such as metal case,metal sleeve,metal cup.
1.Automatic Feeding of Metal Cases on a Die for Facing or Chamfering. High Efficiency & precise processing.
2.Loading the Metal Cases manually in line in the feeding conveyor→ Metal Cases are delivered forward by the Conveyor → Robot Grip & Feeds Metal Case on the Collet → Automatic Facing or Chamfering→Finished Metal Cases are ejected out.
Technical specification:
Model:D30-100
Spindle spec: 0640
Motor power: 2.2KW-1450 RPM
Inverter: EM730-2.2KW
Spindle speed: 0-1200 RPM
Power system: pneumatic
Control system: single board computer microcomputer control
Processing range: diameter 30-100mm, height 5-30mm
Scope of application: flat machining&chamfering of round workpieces
Processing speed: 1000 PCS/Hr
Power supply: AC380V/50HZ
Dimension: L1.5xW1xH1.45 m
Weight:420KG
