Competitive Automatic Eliptical Flange Facing Machine for Machinery Repair Shops

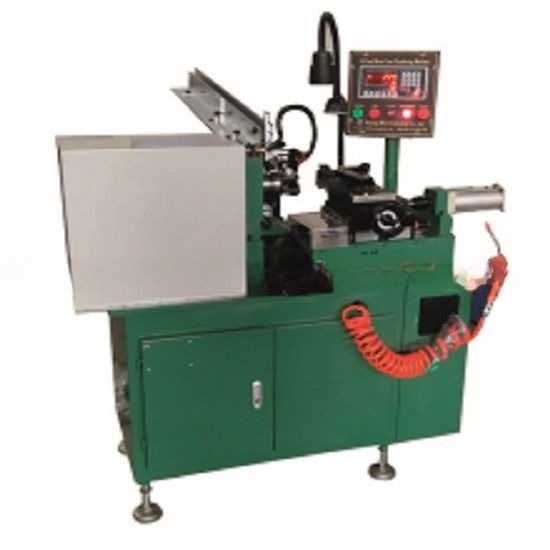

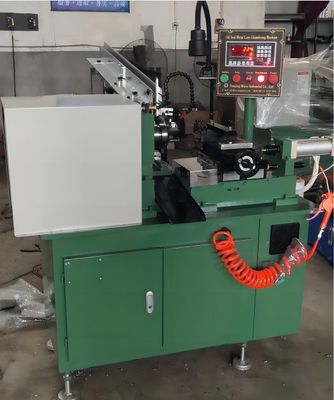

CNC Facing&Chamfering Machine is suitable for facing or machining & chamfering on metal workpieces, such as oil seal metal case, metal sleeve, metal cup, featuring flexible multi-action processing purposes and high processing precision.

Loading the Metal Workpieces manually in line in the feeding guide→ Metal Workpieces are delivered forward by the Guide → Robot Grip & Feeds Metal Case on the Collet → Automatic Facing or Chamfering by servo motor control→Finished Metal Workpieces are ejected out.

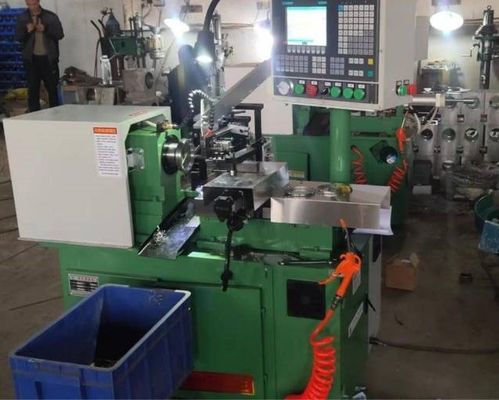

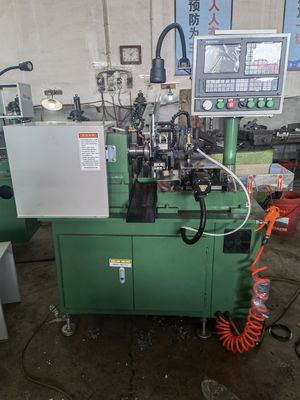

The manipulator and collets are pneumatic control. The main difference between CNC machine and normal pneumatic machne is the tool(blade)control, pneumatic machine can only single action, the blade control of  CNC machine is servo system, blade action can be any point control, low speed and high speed control, it has X axis and Z axis by servo motor control,the blade can run arc and other complicated actions.

Models for options:

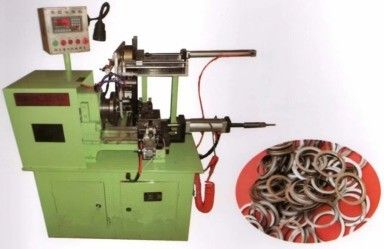

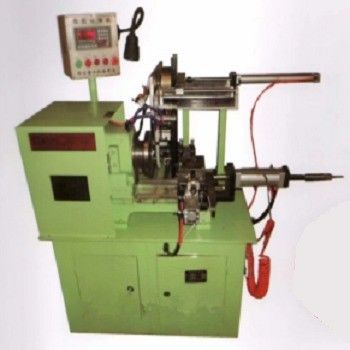

The same as the normal pneumatic metal case chamfering machine, CNC type machine also has various models as per the metal shell sizes (diameter), options as below:

-φ20~60 mm

-φ30~100 mm

-φ50~130 mm

-φ70~160 mm

-φ120~220 mm
