Cork/EVA /PE/CR foam sheet Skiving Machine/Splitting Machine

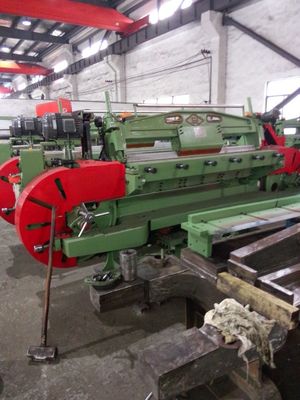

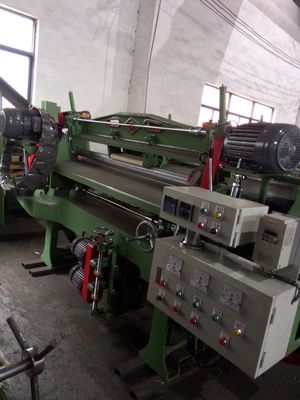

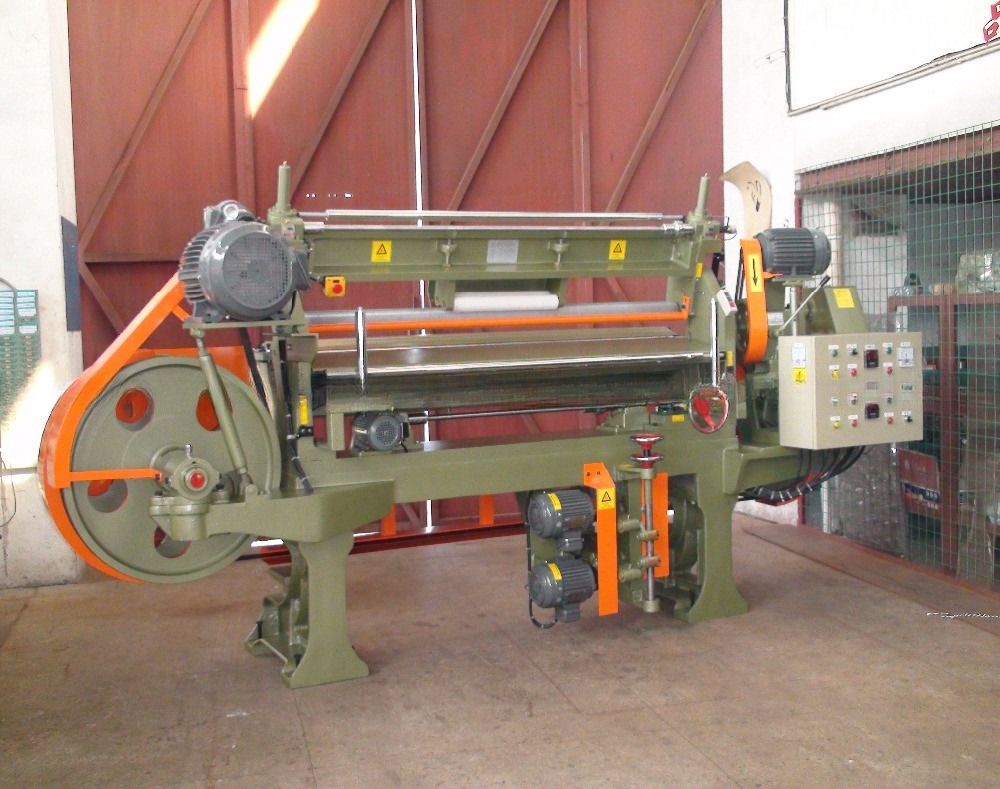

Large Image : Cork/EVA /PE/CR foam sheet Skiving Machine/Splitting Machine

Product Details:

Place of Origin:	China
Brand Name:	Mixer
Certification:	CE

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	$16,000.00 - $20,000.00/sets
Packaging Details:	film wrap into container
Delivery Time:	60days
Payment Terms:	T/T
Supply Ability:	60DAYS

Contact Now

Cork/EVA /PE/CR foam sheet Skiving Machine/Splitting Machine

Description

Type:	Bandknife Splitting Machine	Condition:	New
Video Outgoing-inspection:	Provided	Machinery Test Report:	Provided
Warranty Of Core Components:	1 Year	Core Components:	Bearing, Gearbox, Motor, Gear, Steel Materials
Voltage:	380V,220V,480V	Dimension(LWH):	3900x1150x2100mm
Warranty:	1 Year After Shipment	Key Selling Points:	Long Service Life
Power (kW):	11 KW	Weight (KG):	3000 KG
Applicable Industries:	Manufacturing Plant	Showroom Location:	Turkey
After-sales Service Provided:	Engineers Available To Service Machinery Overseas	Splitting Machine:	EVA/PE/SBR/CR Sheet
Power(W):	11KW	Weight:	3200
After Warranty Service:	Video Technical Support, Online Support, Field Maintenance And Repair Service	Local Service Location:	Turkey
Marketing Type:	Ordinary Product	Port:	Shanghai

Product Description

EVA /PE/CR foam sheet Skiving Machine/Cork Slicing Machine/Cork Splitting Machine:

Application:

The machine is applied to splitting the rubber cork/cork plate, foamed EVA, PE, etc. at a high speed and precision.

Features:

1. Cutter with holder plate is spray welded with tingsten, featuring abrasion resistant, non-deformation and it doesn’t clamp the cutter.

2. The speed is controlled through a powerful mechanic gearbox, featuring speedy change without reducing the power, lower failure rate.

3. The splitting thickness is set by the digital switch, featuring high precision.

4. The splitting thickness is set by the digital switch, featuring high precision. The main components, like motor, gear box, drive bearing, electric elements, are all made from Taiwan or Japan brand, with reliable and stable performance, making sure the machine with longer service life.

Specification

Item	Contents	Data
1	Slicing width	1800 mm
2	Slicing Thickness	0.3-120 mm
3	Slicing Hardness	10°-80°
4	Slicing Speed	10M-40 M/min
5	Slicing Precision	±0.05 m/m Or ±5%
6	Drive Power	11KW
7	Band knife Dimension	1.0×90×8100m/m
8	Machine Dimension	3900×1150×2100 mm
9	Equipment Weight	3200KG
