Product Details:
|
| Condition: | New | Video Outgoing-inspection: | Provided |
|---|---|---|---|
| Machinery Test Report: | Provided | Warranty Of Core Components: | 5 Years |
| Core Components: | PLC, Engine, Motor, Gear | Machine Type: | Magnet Extruder |
| Voltage: | 380V | Weight: | 14000 |
| Warranty: | 1 Year | Power (kW): | 45 |
| Key Selling Points: | Easy To Operate | Showroom Location: | None |
| Applicable Industries: | Manufacturing Plant | Application: | Magnetic Sheet Making Machine |
| Power(W): | 45KW | After-sales Service Provided: | Field Installation, Commissioning And Training |
| After Warranty Service: | Video Technical Support | Marketing Type: | New Product 2020 |

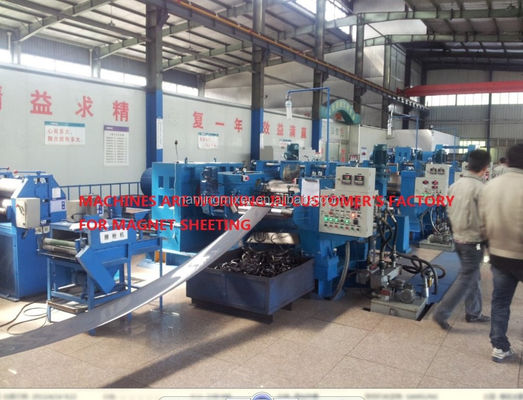

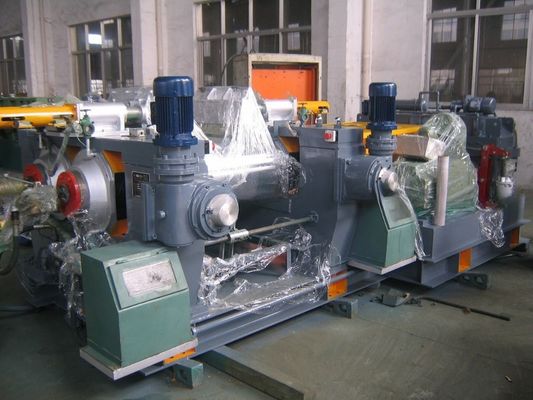

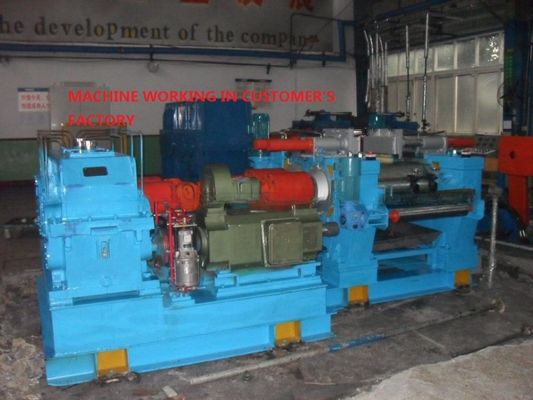

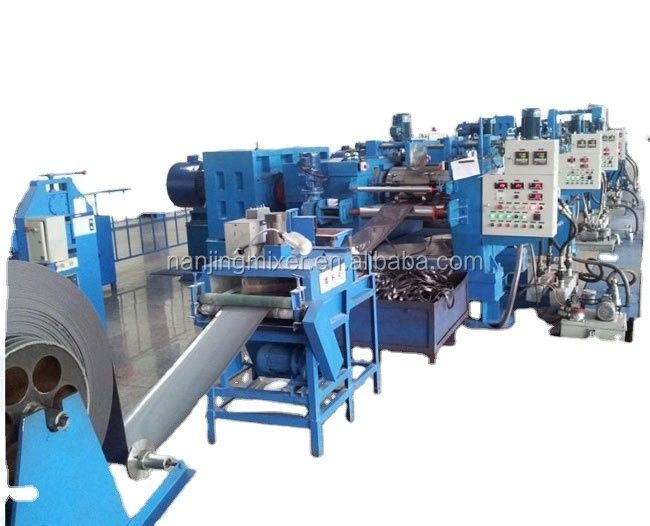

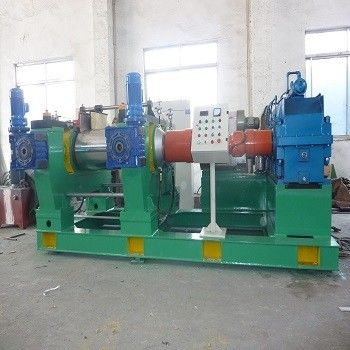

Magnet Sheeting Mill/Magnet Sheet Calender/Calender machine for Rubber Compound with magnet
Magnet Sheeting Mill/Magnet Sheet Calender/Calender machine for Rubber Compound with magnet :
This machine is designed specially for precise calendaring and sheeting of material that contain high magnet or ferrous powder.
| Model | XK-Φ460×800B | XK-Φ550×1000B |
| Roll size(mm) | Φ460xL800 | Φ550xL1000 |
| Roll material | 42 chrome molybdenum(MC3),alloy forging roll, chrome platen thickness:0.25mm | 42 chrome molybdenum(MC3), alloy forgingroll, chrome platen thickness:0.25mm |
| Rear roll linear speed(m/min) | 0-18 (variable speed inventor control) | 0-16(DC CVT speed control) |
| Roll fraction ratio | 1:1.14 | 1:1.07 |
| Roll gap range (mm) | 0-8 | 0-10 |
| Sheeting width(mm) | ≤600 | ≤800 |
| Main Motor power (KW) | 45 (with variable speed inverter) | 90 (DC Motor) |
| Main gear reducer | single input and double output hardened gear reducer, with gear grinding duly machining. | single input and double output hardened gear reducer, with gear grinding duly machining. |
| Weight (Kg) | 14000 | 28000 |
