Product Details:
|
| Condition: | New | Voltage: | 380V |
|---|---|---|---|
| Dimension(L*W*H): | According To The Machine | Weight: | 14000KG |
| Warranty: | 1 Year | After-sales Service Provided: | Online Support, Video Technical Support, Engineers Available To Service Machinery Overseas |
| Application 1: | Magnetic Sheet Making Machine | Application 2: | Two Roll Calender For Rubber |
| Power: | 45KW | Port: | Shanghai |

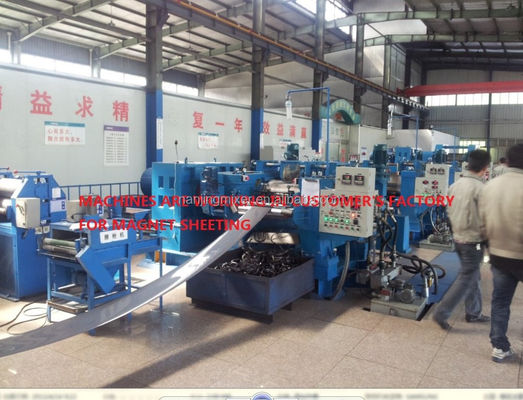

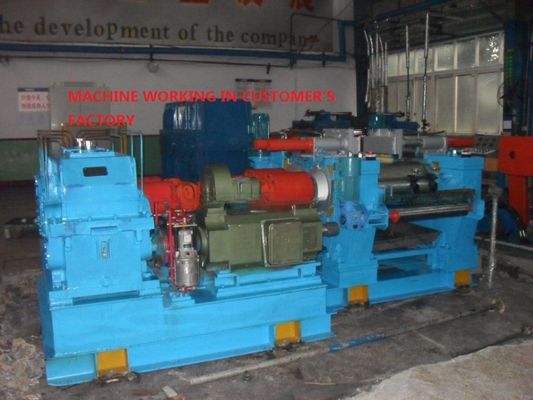

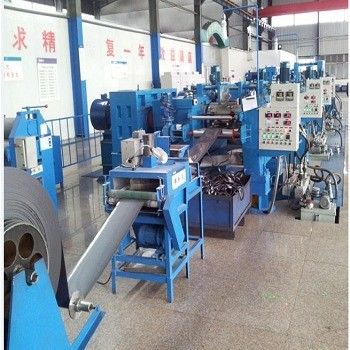

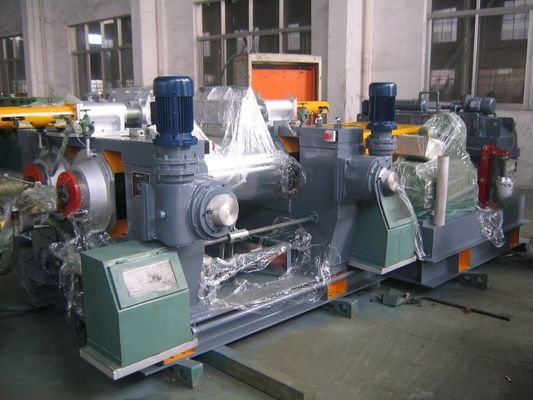

Two Roll Sheeting Mill for rubber compound with magnet/Two Roll Calender for Magnetic rubber sheet :
This machine is designed specially for precise calendaring and sheeting of material that contain high magnet or ferrous powder.
Model | XK-Φ460×800B | XK-Φ550×1000B |
Roll size(mm) | Φ460xL800 | Φ550xL1000 |
Roll material | 42 chrome molybdenum(MC3),alloy forging roll, chrome platen thickness:0.25mm | 42 chrome molybdenum(MC3), alloy forgingroll, chrome platen thickness:0.25mm |
Rear roll linear speed(m/min) | 0-18 (variable speed inventor control) | 0-16(DC CVT speed control) |
Roll fraction ratio | 1:1.14 | 1:1.07 |
Roll gap range (mm) | 0-8 | 0-10 |
Sheeting width(mm) | ≤600 | ≤800 |
Main Motor power (KW) | 45 (with variable speed inverter) | 90 (DC Motor) |
Main gear reducer | single input and double output hardened gear reducer, with gear grinding duly machining. | single input and double output hardened gear reducer, with gear grinding duly machining. |
Weight (Kg) | 14000 | 28000 |
