Product Details:
|
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Extruder: | Magnetic Gasket |
|---|---|---|---|
| Port: | Shanghai |

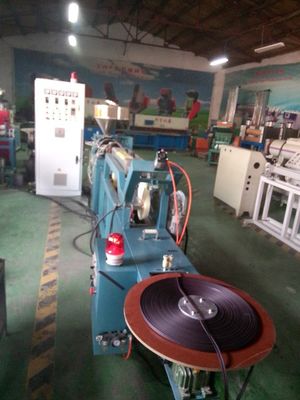

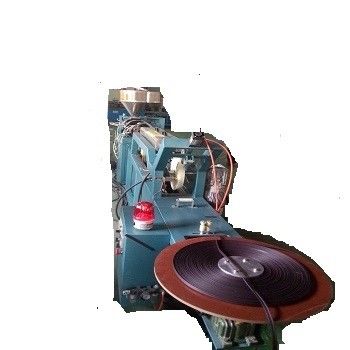

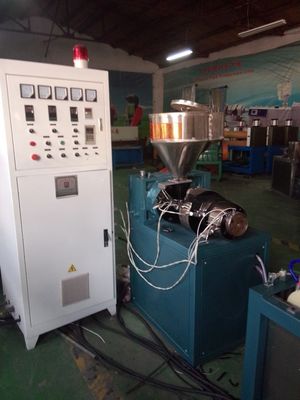

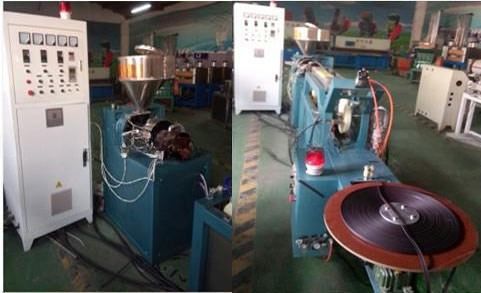

Refrigerator Magnet Door Strip Extruder Machine Line/refrigerator door strip extrusion line :

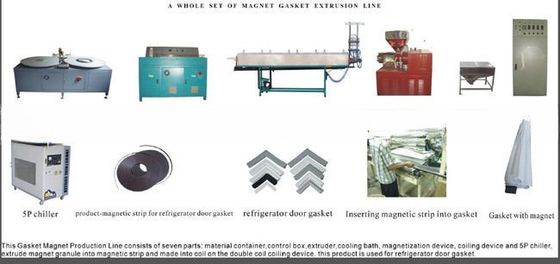

This magnet strip extruder line for producing magnetic strip used as refrigerator door gasket. The machine is newly designed, easy to maintain, it has suitable structure, work reliable. The production is automatic, productivity, and high quality, especially, the new machine is equipped with double roll machine and magnetizing system. By this machine, 10,000m2 magnetic strip (section 9x2mm2) can be produced per day. The production process is entirely automatic, extruding, magnetizing and rolling can be done at the same time.
No. | Technical parameters: | |
1 | Screw diameter | Ø60mm |
2 | Barrel material | Alloy steel |
3 | Length/Diameter | 9 |
4 | Compression ratio | 1.7 |
5 | Screw speed | 0-24 r/min |
6 | Extruder motor power | 15kw |
7 | Pulling motor power | 0.55kw |
8 | Coiling motor power | 0.37kw |
9 | Material hopper stirring power | 0.37 |
10 | Heating power | 2.9kw |
11 | Water displacement | 1.8m3/h |
12 | Cooling bath length | 3 m |
13 | screw barrel temperature under normal working condition | 20-30℃ |
14 | Installed gross capacity | 25kw |
15 | Magnetize capacitance | 6000UF |
16 | Magnetizing Voltage | 500V |
17 | Magnetizing power | 5KW |
18 | Normal extrusion capacity | 6-10m/min |
19 | Magnetizing strength | 600--700 GS |
20 | Water chiller power | 5 HP |
21 | Weight | 3000 kgs approx. |
