Waster tire/Rubber Crushing/Cracking Mill machine

Large Image : Waster tire/Rubber Crushing/Cracking Mill machine

Product Details:

Place of Origin:	Jiangsu, China
Brand Name:	MIXER
Certification:	CE,ISO

Payment & Shipping Terms:

Price:	$10,000.00 - $99,999.00/sets
Packaging Details:	Plastic film packed in container
Supply Ability:	10 Set/Sets per Month

Contact Now

Waster tire/Rubber Crushing/Cracking Mill machine

Description

Diameter Of Roll(mm):	400 Mm	Length Of Roll(mm):	600 Mm
Video Outgoing-inspection:	Provided	Machinery Test Report:	Provided
Warranty Of Core Components:	2 Years	Core Components:	Bearing, Gearbox, Motor
Condition:	New	Voltage:	380V
Dimension(LWH):	5620x2260x1900mm	Warranty:	1 Year
Key Selling Points:	Long Service Life	Power (kW):	45
Weight (KG):	7500 KG	Applicable Industries:	Manufacturing Plant
Showroom Location:	Egypt, Turkey	After-sales Service Provided:	Engineers Available To Service Machinery Overseas
Reycling Machine:	Rubber Recycling Machine	Rubber Powder:	Rubber Powder Making Machine
Type:	Tire Recycling Machine	Marketing Type:	Ordinary Product
After Warranty Service:	Video Technical Support, Online Support, Spare Parts	Local Service Location:	Malaysia, Turkey
Port:	Shanghai

Product Description

Waster tire Cracking Mill/Waste Rubber Crushing machine/Tyre cracking Machine :

Waste tire recycling machine: This line mainly consists of mainframe (rubber crusher), powder screener, and magnetic separator.

Step1: Through the decomposition of waste tire by Waste tire breaking down machines set, the tire processed into about 3.5 cm square pieces first;

Step2: By the rubber crusher shredding process to get rubber powder or particles with wire and fiber mixed inside.

Step3: Using the powder vibrating screener, magnetic separator to completely separate wire and fiber and tire rubber powder or granules.

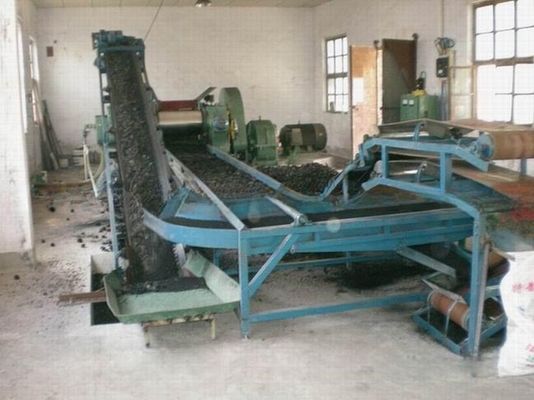

Through the conveyor belt with two sieve beds filter out the fine material and then by magnetic roller, magnetic separation of steel wire and fiber, finally, getting the pure rubber powder.

These machines set mainly consists the following equipment:

1. Tire ring cutter XQK-800

This machine is used to cut steel tire sidewall in order to do separation of the next step. Tire placed Disc platform, rotate the middle of hand-wheel, three-jaw card holder will be jammed solid inner tire, start power, work platform rotation, cutting tools as needed into the knife, slowly cut into the tires, step by step, until cut sidewall of the tire. This is first step of recycling waste tire.

motor	Range of process	Capacity /hour	Dimension	weight
2.2KW	750-1200mm dia tire	25-30 tires /hour	13009001480 mm	0.6 ton

2. Rubber bar cutter

This machine is utilized to cut radial tire which has been removed one side-wall into a certain sized of rubber strip.

2 disc cutters are of special materials, hard and durable, can be used repeatedly grinding for no more than 1200mm dia wire tires.

Motor power	capacity	Process tire dia	Material processed size	dimension	weight
5.5KW	20 tires/hour	Less than 1200mm	35-55mm	12306501580	0.8 ton

Rubber block cutter can cut the tire strip cut by bar cutter into lump type. The cutter is of alloy, capacity is 9-11 tons per day. The knife is not shaper, can be repeated grinding.

Motor	capacity	Size of processed materials	Dimension of the machine	weight
7.5KW	0.8-1ton/hour	35*35mm	7805501210mm	0.6ton

Waster tire/Rubber Crushing/Cracking Mill machine

Ⅱ. Main machine group

The machines set consist of rubber crusher and auxiliary machine. The auxiliary machines mainly consist of vibration sieve, rubber block conveyor, rubber powder filter screener, powder materials conveyor; steel wire magnetic separator. These auxiliary machines works together to achieve the production process flow.

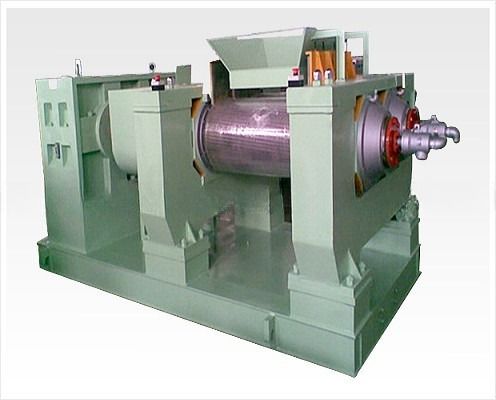

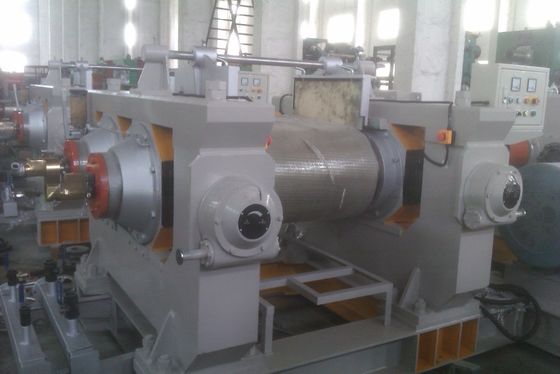

1. The rubber crushing mill: It is mainly used to crush the rubber lump, soles and rubber leftover materials to get the rubber powder or rubber granules.. The machine uses alloy chilled cast iron roller, the surface of hard wear-resistant, roll after roll of groove, cavity processing, so that the roll surface temperature uniformity; with overload protection and emergency braking device, safe and reliable; using hand-wheel adjustable rollers tube spacing, easy to operate.

Specification

Specification:

Item	model	Roll dia× Roll length (mm)	Roll ratio	Front roll linear speed (M/min)	Production capacity (Kg/h)	Max.gap (mm)	Motor power (KW)	Dimension (mm)	Weight Kg	Remarks
Rubber crusher	XKP-400	400×600	1:1.38	17.16	70~600 (according to power size )	10	45	4210×1850 ×1925	7500	grease
Rough power crusher	XKC-400	400×600	1:1.38	17.16	800	10	45	4210×1850 ×1925	7500	grease
Rubber crushing mill	XKP-450	450×760	1:1.38	23.43	1000	10	55	4550×1970 ×1860	11000	grease
Rubber crushing mill	XKP-560	510×800 560×800	1:1.39	27.14	2000	15	75	5620×2260 ×1900	16000	grease
