Product Details:
|

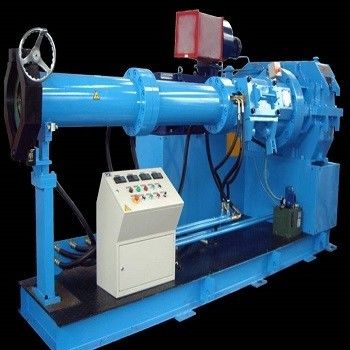

| Type: | Rubber Extruder, Rubber Extruder | Condition: | New |
|---|---|---|---|
| Voltage: | 380V | Dimension(L*W*H): | ACCORDING TO DIFFERENT MODEL |
| Warranty: | 1 Year | Key Selling Points: | Long Service Life |
| Applicable Industries: | Manufacturing Plant | After-sales Service Provided: | Field Maintenance And Repair Service |
| Power: | 75-255kw | Weight: | ACCORDING TO DIFFERENT MODEL |
| Port: | Shanghai |

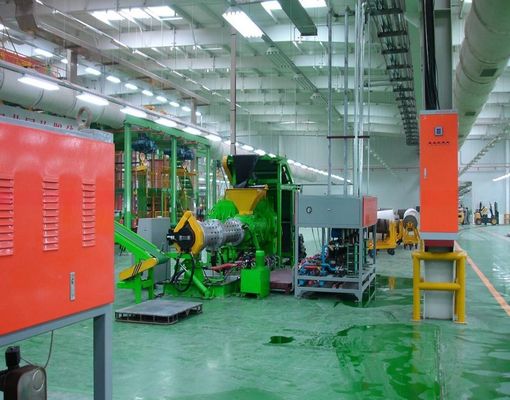

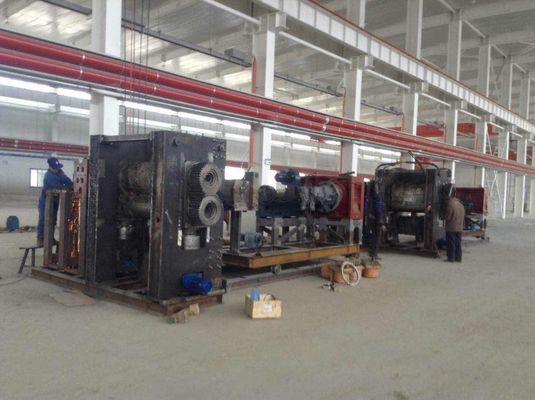

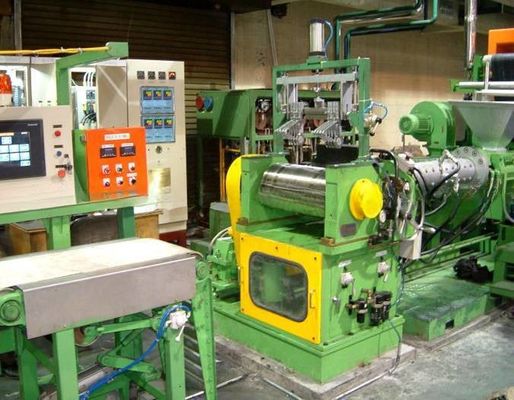

Automatic Extruder&calendering production line .
Mainly used for production of conveyor belt cover plastic, anti-corrosion wear liner, airtight layer, waterproof membrane, rubber track, industrial Shouban, rubber foam insulation board.
Production advantages of rubber sheet: 1,smooth surface. 2, dense and bubble-free. 3, the thickness error is minimal. 4, horizontal and vertical tensile strength and uniform. 5, intelligent control, reduce the operator.
Model/Diameter (mm) | L/D | Power (KW) | Screw Speed (RPM) | Output (Kg/h) |
XJD-60 | (6-16):1 | 11-37 | 80 | 120 |
XJD-90 | (10-20):1 | 30-75 | 60 | 350 |
XJD-120 | (10-18):1 | 45-110 | 50 | 650 |
XJD-150 | (10-18):1 | 75-255 | 45 | 1200 |
XJD-200 | (10-18):1 | 185-355 | 28 | 2200 |
XJD-250 | (4-12):1 | 185-500 | 26 | 3000 |
