Product Details:
|
| Condition: | New | Plastic Type: | PVC, PET, ABS, PP/PE, PC, PMMA, PA, PS |
|---|---|---|---|
| Machine Type: | Plastic Crusher | Max.Production Capacity (kg/h): | 600 |
| Production Capacity (kg/h): | 450 - 600 Kg/h | Use: | Plastic Crusher |
| Voltage: | 220V/380V/415V/440V/480V | Dimension(L*W*H): | 173x149x230cm |
| Power (kW): | 30 | Weight (T): | 2 |
| Warranty: | 1 Year | Applicable Industries: | Manufacturing Plant, Recycling Factory |
| Key Selling Points: | High Productivity | Showroom Location: | Turkey, United Kingdom, Germany, Indonesia, Russia, Thailand |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Bearing, Motor, Gear, Gearbox |
| After-sales Service Provided: | Field Maintenance And Repair Service | Marketing Type: | Ordinary Product |
| Port: | Nanjing,Shanghai |

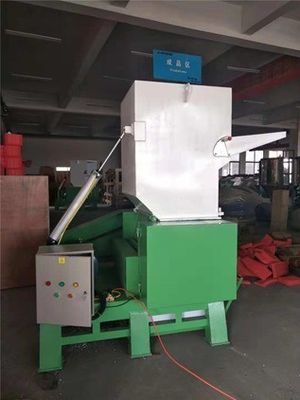

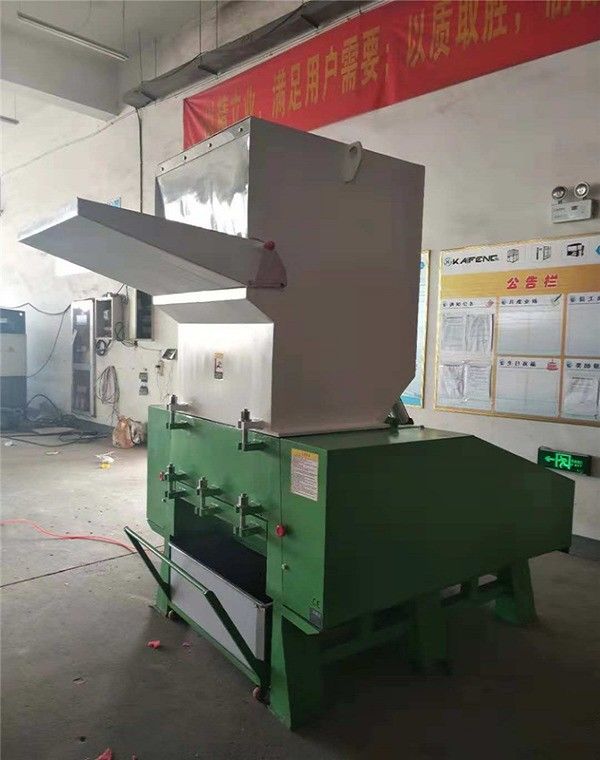

The plastic crushe machine is suitable for recycling and restoring of conventionnsl sheels, tube plastics, profiles,packing plastics,packing plastics, extrusion moulded products and runners.

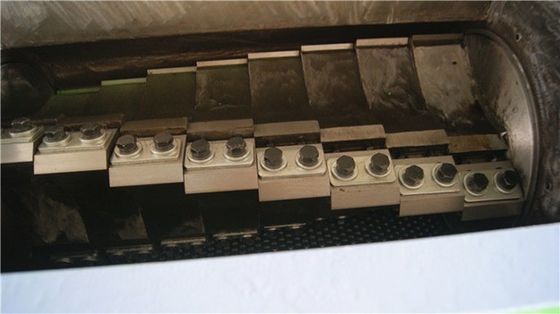

General operation adopted with airtight sealed bearing to allow long hours rotation; well designed cutter blades,to ensure the
balance of crackjing sizes after crushed;cutter base with special heat treatments.elegant in appearance.
| Model | KF-PP230 | KF-PP300 | KF-PP400 | KF-PP500 | KF-PP600 | KF-PP700 | KF-PP800 | KF-PP960 | |
| Crushing chamber(mm) | 230×200 | 310×200 | 410×235 | 515×290 | 610×320 | 710×320 | 815×470 | 960×600 | |
| Crushing ability (kg/h) | 100-150 | 150-200 | 200-250 | 300-350 | 350-450 | 400-500 | 450-600 | 600-800 | |
| Stationary cutter | 2 | 2 | 2 | 2 | 2 | 2 | 4 | 4 | |
| Rotary cutter | 6 | 9 | 12 | 15 | 18 | 21 | 24 | 27 | |
| Power | Kw | 4 | 5.5 | 7.5 | 11 | 15 | 15 | 22/30 | 30/45 |
| HP | 5 | 7.5 | 10 | 15 | 20 | 20 | 30/40 | 40/60 | |
| Dimensions (L×W×H cm) | 95×62×119 | 100×72×129 | 103×84×139 | 123×101×163 | 132×111×183 | 161×121×165 | 173×149×230 | 225×171×255 | |
| Net Weight(kg) | 288 | 432 | 500 | 900 | 1100 | 1400 | 2000 | 3050 | |
