Product Details:
|
| Condition: | New | Plastic Type: | PVC, PET, ABS, PP/PE, PC, PMMA, PA, PS |
|---|---|---|---|
| Machine Type: | Plastic Crusher | Max.Production Capacity (kg/h): | 600 |
| Production Capacity (kg/h): | 400 - 600 Kg/h | Use: | Plastic Crusher |
| Voltage: | 220V/380V/415V/440V/480V | Dimension(L*W*H): | 173x149x230cm |
| Power (kW): | 30 | Weight (T): | 2 |
| Warranty: | 1 Year | Applicable Industries: | Manufacturing Plant, Plastic Recycling Field |
| Key Selling Points: | High Productivity | Showroom Location: | Turkey, Saudi Arabia, Pakistan, India, Colombia |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Bearing, Motor, Gear, Gearbox |
| After-sales Service Provided: | Field Installation, Commissioning And Training | Marketing Type: | Ordinary Product |
| Port: | Nanjing,Shanghai |

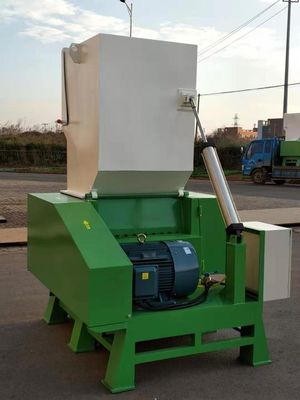

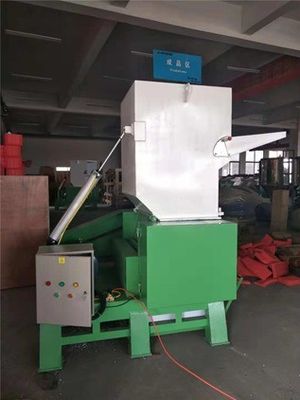

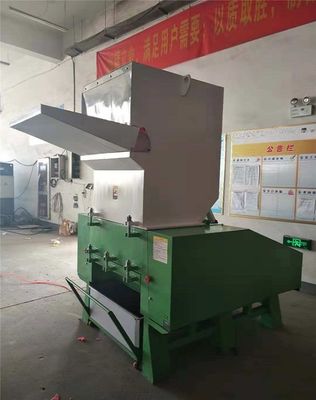

The Plastic Bottle/Plastic box Shredder Machine is suitable for recycling and restoring of conventionnsl sheels, tube plastics, profiles,packing plastics , extrusion moulded products and runners.

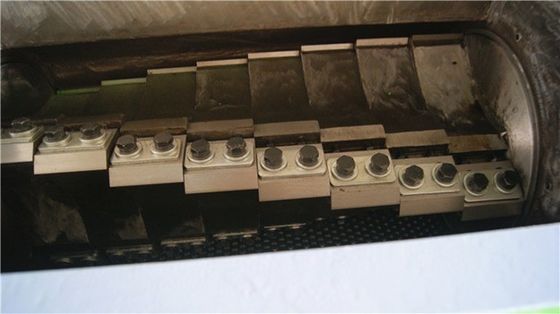

General operation adopted with airtight sealed bearing to allow long hours rotation; well designed cutter blades,to ensure the
balance of crackjing sizes after crushed;cutter base with special heat treatments.elegant in appearance.
| Model | KF-PP230 | KF-PP300 | KF-PP400 | KF-PP500 | KF-PP600 | KF-PP700 | KF-PP800 | KF-PP960 | |
| Crushing chamber(mm) | 230×200 | 310×200 | 410×235 | 515×290 | 610×320 | 710×320 | 815×470 | 960×600 | |
| Crushing ability (kg/h) | 100-150 | 150-200 | 200-250 | 300-350 | 350-450 | 400-500 | 450-600 | 600-800 | |
| Stationary cutter | 2 | 2 | 2 | 2 | 2 | 2 | 4 | 4 | |
| Rotary cutter | 6 | 9 | 12 | 15 | 18 | 21 | 24 | 27 | |
| Power | Kw | 4 | 5.5 | 7.5 | 11 | 15 | 15 | 22/30 | 30/45 |
| HP | 5 | 7.5 | 10 | 15 | 20 | 20 | 30/40 | 40/60 | |
| Dimensions (L×W×H cm) | 95×62×119 | 100×72×129 | 103×84×139 | 123×101×163 | 132×111×183 | 161×121×165 | 173×149×230 | 225×171×255 | |
| Net Weight(kg) | 288 | 432 | 500 | 900 | 1100 | 1400 | 2000 | 3050 | |
