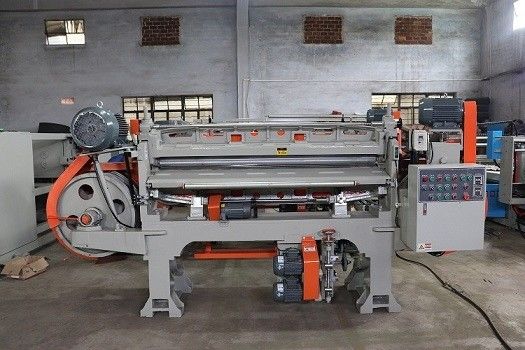

Horizontal Design Rubber Yarn Splitter Machine 3900x1150x2100mm Size and 3200mm Length

Large Image : Horizontal Design Rubber Yarn Splitter Machine 3900x1150x2100mm Size and 3200mm Length

Product Details:

Place of Origin:	China
Brand Name:	Mixer

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	$7,800.00/sets >=1 sets
Packaging Details:	film wrap into container
Delivery Time:	60days
Payment Terms:	T/T
Supply Ability:	60DAYS

Contact Now

Horizontal Design Rubber Yarn Splitter Machine 3900x1150x2100mm Size and 3200mm Length

Description

Type:	Bandknife Splitting Machine	Condition:	New
Video Outgoing-inspection:	Provided	Machinery Test Report:	Provided
Warranty Of Core Components:	2 Years	Core Components:	PLC, Engine, Motor, Gear, Pump
Voltage:	380V,220V,480V	Dimension(LWH):	3900x1150x2100mm
Warranty:	1 Year	Key Selling Points:	Sustainable
Power (kW):	11 KW	Weight (KG):	3200 KG
Applicable Industries:	Manufacturing Plant	Showroom Location:	None
Slicing Machine:	Rubber Cork,CR,EPDM Foam Sheet	Power(W):	11KW
Weight:	3200	After-sales Service Provided:	Field Installation, Commissioning And Training
After Warranty Service:	Video Technical Support	Port:	Shanghai

Product Description

foam bandknife splitting machines/foam skiving machine/skiving machine:

Application:

The machine is applied to splitting the foamed rubber cork, foamed EVA, PE, etc. at a high speed and precision.

Features:

1. Cutter with holder plate is spray welded with tingsten, featuring abrasion resistant, non-deformation and it doesn’t clamp the cutter.

2. The speed is controlled through a powerful mechanic gearbox, featuring speedy change without reducing the power, lower failure rate.

3. The splitting thickness is set by the digital switch, featuring high precision.

4. The splitting thickness is set by the digital switch, featuring high precision. The main components, like motor, gear box, drive bearing, electric elements, are all made from Taiwan or Japan brand, with reliable and stable performance, making sure the machine with longer service life.

Specification

Item	Contents	Data
1	Slicing width	1800 mm
2	Slicing Thickness	0.3-120 mm
3	Slicing Hardness	10°-80°
4	Slicing Speed	10M-40 M/min
5	Slicing Precision	±0.05 m/m Or ±5%
6	Drive Power	11KW
7	Band knife Dimension	1.0×90×8100m/m
8	Machine Dimension	3900×1150×2100 mm
9	Equipment Weight	3200KG
