xkp 560 rubber tyre crusher recycling machinery

Name: xkp 560 rubber tyre crusher recycling machinery
Brand: MIXER
SKU: MIXER
Price: 25 USD
Availability: InStock
Rating: 4.7 (156 reviews)

All Products

Rubber strainer
(3)

rubber washing machine
(2)

rubber kneader
(2)

rubber parts washing machine
(6)

brake pads press
(9)

multi-plate vulcanizing press
(28)

Rubber Transfer Molding
(15)

rubber&silicone compression molding machine
(195)

rubber&silicone injection molding machine
(40)

rubber trimming machineries
(24)

rubber cutting machineries
(48)

metal parts machining machine
(17)

Others
(9)

oil seal metal case processing
(22)

Dispersion Kneader
(97)

Rubber Precision Preformer (Barwell)
(53)

Rubber Roller Mill
(5)

Rubber Open Mixing Mill
(88)

Rubber Calender Machine
(20)

Rubber Extruder
(30)

EVA/TPR/PE/PP/PVC compound pelletizing line
(55)

Extruder line for sheet
(10)

Twin Scew Extruder
(65)

Sigma Kneader/Sigma Mixer
(114)

Hydraulic Vulcanizing Press
(312)

EVA/PE/CR/SBR Sheet Processing Machine
(90)

Magnet Extruder&Two Roll Sheeing Mill
(14)

Rubber Cutting Machine
(156)

Rubber&Plastic Recycling Machine
(50)

Other Rubber Machines
(56)

Other plastic machines
(5)

Second Hand Machines
(0)

I'm Online Chat Now

xkp 560 rubber tyre crusher recycling machinery

Large Image : xkp 560 rubber tyre crusher recycling machinery

Product Details:

Place of Origin:	Jiangsu, China
Brand Name:	MIXER
Certification:	ISO,CE

Payment & Shipping Terms:

Price:	$25,000.00/sets >=1 sets

Contact Now

xkp 560 rubber tyre crusher recycling machinery

Description

Type:	Recycling Machine	Condition:	New
Video Outgoing-inspection:	Provided	Machinery Test Report:	Provided
Warranty Of Core Components:	More Than 5 Years	Core Components:	PLC, Engine, Bearing, Motor, Gear
Tire Machine Type:	Tire Recycling Machine	Voltage:	220V/380V/415V/440V
Dimension(LWH):	According To The Machine	Warranty:	1 Year
Key Selling Points:	Sustainable	Power (kW):	104.2 KW
Weight (KG):	9000 KG	Applicable Industries:	Manufacturing Plant
Showroom Location:	None	MACHINE:	TIRE RECYCLING MACHINE
After-sales Service Provided:	Field Installation, Commissioning And Training	After Warranty Service:	Video Technical Support

Product Description

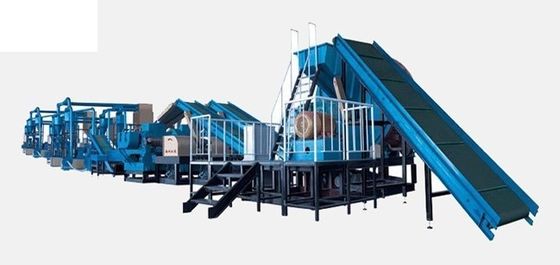

Waste tire recycling machine: This line mainly consists of mainframe (rubber crusher), powder screener, and magnetic separator.

Step1: Through the decomposition of waste tire by Waste tire breaking down machines set, the tire processed into about 3.5 cm square pieces first;

Step2: By the rubber crusher shredding process to get rubber powder or particles with wire and fiber mixed inside.

Step3: Using the powder vibrating screener, magnetic separator to completely separate wire and fiber and tire rubber powder or granules.

Through the conveyor belt with two sieve beds filter out the fine material and then by magnetic roller, magnetic separation of steel wire and fiber, finally, getting the pure rubber powder.

These machines set mainly consists the following equipment:

1. Tire ring cutter XQK-800

This machine is used to cut steel tire sidewall in order to do separation of the next step. Tire placed Disc platform, rotate the middle of hand-wheel, three-jaw card holder will be jammed solid inner tire, start power, work platform rotation, cutting tools as needed into the knife, slowly cut into the tires, step by step, until cut sidewall of the tire. This is first step of recycling waste tire.

2. Rubber bar cutter

This machine is utilized to cut radial tire which has been removed one side-wall into a certain sized of rubber strip.

2 disc cutters are of special materials, hard and durable, can be used repeatedly grinding for no more than 1200mm dia wire tires.

Ⅱ. Main machine group

The machines set consist of rubber crusher and auxiliary machine. The auxiliary machines mainly consist of vibration sieve, rubber block conveyor, rubber powder filter screener, powder materials conveyor; steel wire magnetic separator. These auxiliary machines works together to achieve the production process flow.

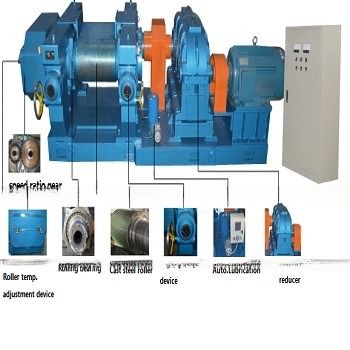

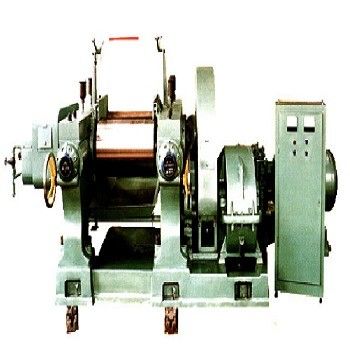

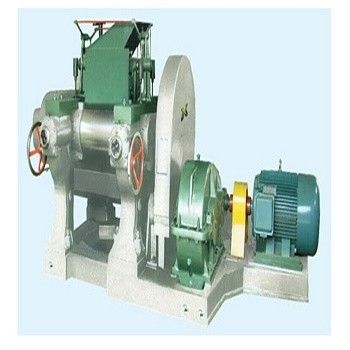

1. The rubber crushing mill: It is mainly used to crush the rubber lump, soles and rubber leftover materials to get the rubber powder or rubber granules.. The machine uses alloy chilled cast iron roller, the surface of hard wear-resistant, roll after roll of groove, cavity processing, so that the roll surface temperature uniformity; with overload protection and emergency braking device, safe and reliable; using hand-wheel adjustable rollers tube spacing, easy to operate.
