Product Details:
|
| Condition: | New | Video Outgoing-inspection: | Provided |
|---|---|---|---|
| Machinery Test Report: | Provided | Warranty Of Core Components: | 2 Years |
| Core Components: | PLC, Engine, Motor | Machine Type: | Oil Seal Machine |
| Voltage: | 220V/380V/460V | Dimension(L*W*H): | 1500x850x1400mm |
| Weight: | 550 | Warranty: | 1 Year |
| Power (kW): | 4KW | Key Selling Points: | High Productivity |
| Showroom Location: | Turkey | Applicable Industries: | Manufacturing Plant |
| Marketing Type: | Ordinary Product | Port: | Shanghai |

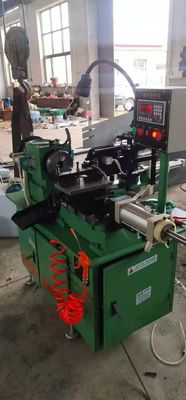

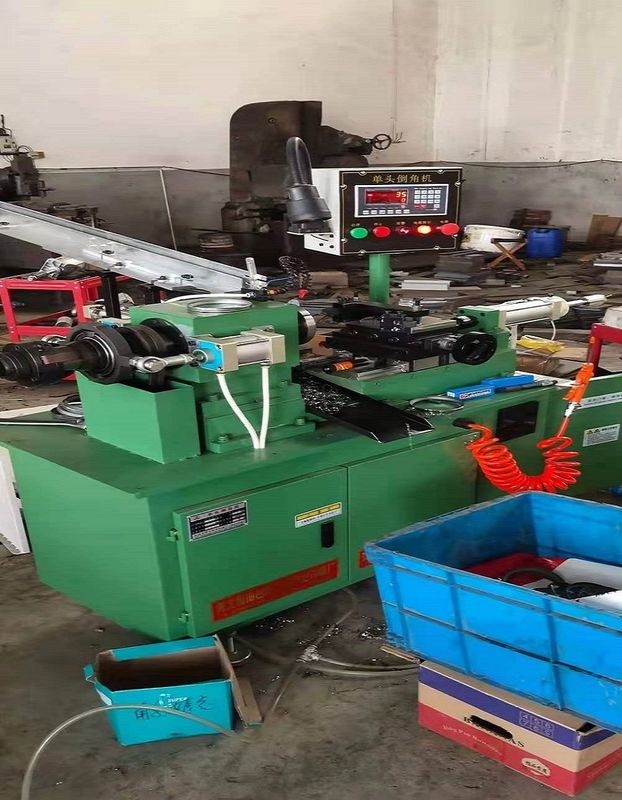

Auto Oil Seal Shell Processing&Cutting Machine:
It is Suitable for processing& cutting on oil seal shell.
- Automatic Feeding of Oil Seal Shell on a Die for Processing& Cutting. High Efficiency & precise processing.
-Loading the Shells manually in line onto the conveyor→ Shells are delivered forward by the Conveyor → Robot Grip & Feed Metal Case on the Die → Automatic Cutting &Processing→Shells are ejected out.
Model: D120-220
Motor :4 KW
Main shaft speed: 0~1200 RPM, adjustable with inverter for speed control
Power system: Pneumatic
Control system: PLC
Processing range: diameter 120-220mm, height 5-30mm (other ranges are available for options)
Scope of application: trimming&chamfering on metal cases of oil seals
Processing speed: 8~15 PCS/ min
Dimension: L1.5*W0.85*H1.4 m
Weight: 550KG
