Product Details:
|
| Machine Type: | HIGH PRESSURE CLEANER | Applicable Industries: | Manufacturing Plant, Other |
|---|---|---|---|
| Condition: | New | Feature: | Critical Cleaning / Residue Free |
| Fuel: | Electric | Use: | Parts Cleaning And Drying |
| Cleaning Process: | Other | Cleaning Type: | HIGH PRESSURE CLEANER |
| Industry Used: | Electronic Industry, Pharmaceutical Cleaning, Rubber Industry, Metal Industry, Plastic Industry | Material: | Rubber/metal/case |
| Power: | 11.5kw | Dimension(L*W*H): | 1100*1500*1600mm |
| Warranty: | 1 Year | Max. Pressure: | 120kg |
| Marketing Type: | New Product 2023 | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Core Components: | Pressure Vessel, Motor, PLC, Pump, Engine | Key Selling Points: | Multifunctional |
| Weight (KG): | 400 Kg | After-sales Service Provided: | Yes |
| Pressure Washer Type: | High Pressure Power Jet Cleaner Pump | Product Name: | Electric Motor High Pressure Washer |

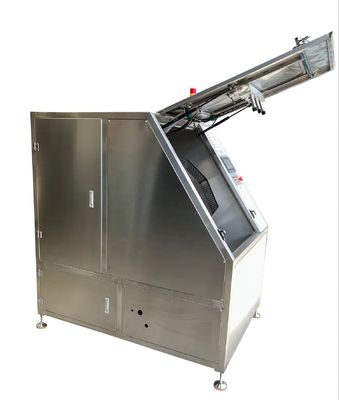

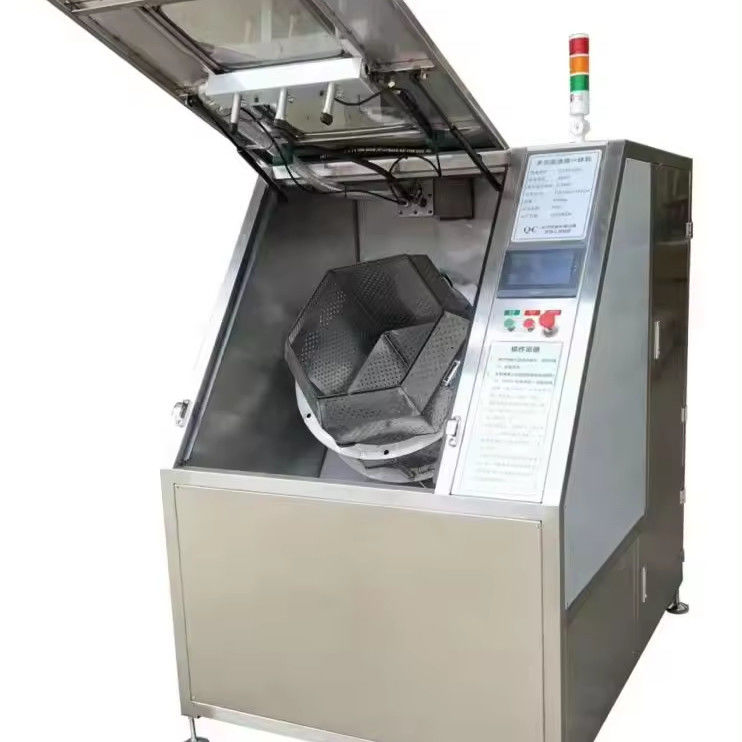

This is a latest developed patented equipment called Multi -functional Cleaning and Drying machine. It resolves the problems of low efficiency, long washing time, and water leakage everywhere used by traditional horizontal washing machine. And our cleaning machine is efficient, without any water overflow. It uses high -pressure water spraying for cleaning, and drying function is fitted, a whole set of workflows to complete the cleaning work at one time. There is no need to arrange workers to wait there, the equipment adopts the PLC programming control system, when the work is completed, it will be automatically stopped. Workers only need to feed the products and take out the products from the barrel.
Application:
This machine can be used to clean rubber, silicone, plastic and other materials with product sizes ranging from 1mm—150mm. The cleaning drum (barrel) adopts the detachable mode. The default mesh hole diameter of the drum (barrel) is 5mm, and the user can customize the special hole size according to the product size.

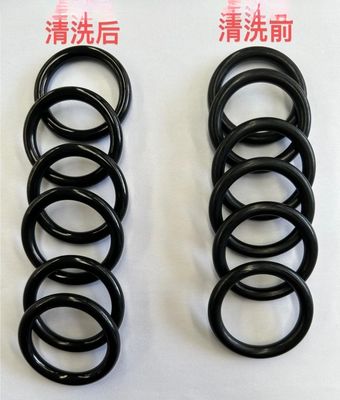

Applicable products for reference:
Simple operation instruction:
1. Put the products in the barrel, close the door and lock the handle.
2. Set Spraying Time of cleaning solution (agent), Time for high pressure water cleaning, rotation speed of barrel, air -drying time, and then push the "Start" button.
3. Waiting for the equipment to automatically clean and dry, then the green light is on, open the door, take out the products.
4. During the cleaning process, if you need to stop, press the "Stop" button, and then open the door; if you encounter an emergency, press the "Emergency Stop" button to stop the machine.
5. Due to the different characteristics of different products, the time or speed setting of different products could be different. Make sure to set the correct speed and time to achieve the best cleaning result.
Main technical parameter:
| No. | Components | QTY | Remarks |
| 1 | high pressure cleaning set | 1 set | Power:2.2KW. Pressure: 10-12 Mpa, Average water consumption: 11 Liters/minute |
| 2 | Air blowing set | 1 set | 1.5 KW |
| 3 | heating set | 1 set | 6KW |
| 4 | frame and drive system | 1 set | 1.5KW |
| 5 | electric control | 1 set | DEMA inverter, PLC:Xinjie |
| 6 | Cleaning agent spraying system | 1 set | To make the cleaning more efficient and more clean products to get |
| 7 | Silicone oil spraying system | 1 set | for brightening of products |
| 8 | UV disinfection component | 1 set | Optional |
| 9 | Housing for the cleaning barrel | 1 set | SUS304 stainless steel |
| 10 | Cleaning barrel (drum) | 1 set | default hole size 5mm, SUS304 stainless steel |
detailed images
