lab pp caco3 filler masterbatch machine

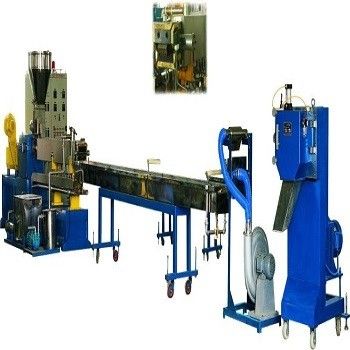

Large Image : lab pp caco3 filler masterbatch machine

Product Details:

Place of Origin:	Jiangsu, China
Brand Name:	MIXER

Payment & Shipping Terms:

Price:	$17,000.00/sets >=1 sets
Packaging Details:	Plastic film packed in container.
Supply Ability:	10 Set/Sets per Month

Contact Now

lab pp caco3 filler masterbatch machine

Description

Condition:	New	Plastic Processed:	PE, PP, Polystyrene, EVA, PET, PC, PPR, ABS/PP, HDPE/PP, PE/PP, Lldpe, LDPE
Application:	Granules, Pelletizing	Screw Design:	Double-screw
Twin Screw Type:	Co-rotating Parallel Twin-screw	Screw Material:	High Speed Tool Steel, W6MO5Cr4V2
Screw Diameter (mm):	62.4 Mm	Screw L/D Ratio:	44:1
Screw Speed (rpm):	500 Rpm	Showroom Location:	None
Voltage:	380V	Dimension(LWH):	According To Model
Weight:	4500 KG	Warranty:	1 Year
Key Selling Points:	High Productivity	Applicable Industries:	Manufacturing Plant
Video Outgoing-inspection:	Provided	Warranty Of Core Components:	1 Year
Core Components:	Bearing, Motor, Pump, Gear, PLC, Pressure Vessel, Gearbox	Machinery Test Report:	Provided
Automatic Grade:	Automatic	After-sales Service Provided:	Video Technical Support
After Warranty Service:	Video Technical Support	Marketing Type:	Hot Product 2019
Port:	Shanghai

Product Description

twin screw compound extruder/color masterbatch extruder/eva granulation machine

Application of twin screw extruder for the materials in details as follows:

PE/PP/ABS/PC/EVA+CaCO3/Talc/TiO2;

PC+ABS/PA+EPDM/PBT+PET/PP+NBR;

PE/PP/ABS/PC/EVA/PET;

ANTI RETARDANT MASTERBATCH;

DE-COMPOSING MASTERBATCH;

ANTISTATIC MASTERBATCH;

ANTIBACTERIAL MASTERBATCH;

PA/PP/PC/ABS/PBTPOM+GLASS FIBER;

TPR/TPE/TPV/TPU;

PE/PP/EVA/PVC/XLPE;

PA/PU/POM/PMMA/PC;

CPP/CPE/SBS/EPDM/SEBS,FPM,/BR;

COATING MATERIALS

Electric control system for parallet co rotating twin screw extruder:

Common instruments control:

1) Temperature controller,inverter, breaker, contactor, SSR and

control buttons are of foreign famous brand asper customer's option.

2)The PLC control system is adopted to optimize the operations circuit.

3)Control unit like solenoid valve are of Euopean brand.

4)The whole extrusion line has driving & interlock pretect, and troulble &interlock proctec systems.

5)The simulation display is equipped, which can show the running state clearly

and dynamically.

HIMI control:

1) Adopt the improted brand such as Omron and Siements with characters of simpliefied

Circuit and safety.

2) Start/Stop of all the motors can be operated on the touch-screen.

3)The operations status of the line can be displayed dynamically.

4) Dynamic cruve display, input and save of parameters such as rmp, electric current, temp

control and pressure.

5) Presenting the detailed record of warning, document retrieval, and maintenance.

6) Reserve the interface of the bus line, to realize the collections, analyze, save and print data.

Specification

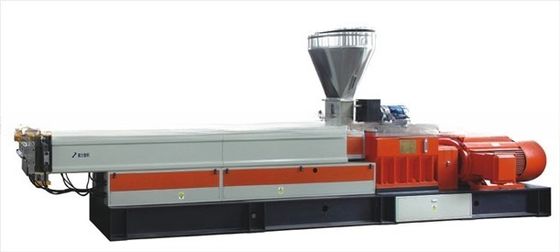

SJSL series co-rotating twin screw extruder
Model	Diameter (mm)	Screw speed (RPM)	L/D	Motor (KW)	Torgue ( N.M)	Capacity(KG/H)
SJSL-20	22	600	32-60	3	35	1-5
SJSL-35	35.6	600	32-60	15-18.5	115	10-45
SJSL-50	50.5	500-600	32-60	37-45	405	100-200
SJSL-60	59.5	400-500	32-60	55-75	675	200-300
SJSL-60B	59.5	500-600	32-60	75-90	675	250-600
SJSL-65	62.4	400-500	32-60	55-75	675	200-300
SJSL-65B	62.4	500-600	32-60	75-90	1200	250-600
SJSL-75	71	400-500	32-60	90-110	1005	300-500
SJSL-75B	71	500-600	32-60	110-162	1875	750-950
SJSL-95	91	400	32-60	220	2250	750-1250
MT-95	91	500	32-60	500	3740	1000-1250

Tandem extruder (Twin Screw and Single Screw Extruder Unit)
Model	Twin Screw Diameter(mm)	Single Screw Diameter (mm.)	Screw Speed (rpm)	L/D	Motor (kw)	Capacity(Kg/h)
SJSL50-100	50.5	100	500	32-40	37	150-300
SJSL50-100			85	7-15	22	150-300
SJSL65-150	62.4	150	400-500	32-40	55-75	400-600
SJSL65-150			85	7-15	37	400-600
SJSL75-180	71	180	400-500	32-40	90-110	600-800
SJSL75-180			85	7-15	75	600-800
SJSL95-200	MT95	91	400-500	32-40	132-160	800-1200
