4000 KG Waste Tire Recycling Machine for Grinding Rubber Scrap Powder Easy to Operate

Large Image : 4000 KG Waste Tire Recycling Machine for Grinding Rubber Scrap Powder Easy to Operate

Product Details:

Place of Origin:	Jiangsu, China
Brand Name:	MIXER

Payment & Shipping Terms:

Price:	$45,000.00/sets >=1 sets
Packaging Details:	wooden case and plastic film
Supply Ability:	10 Set/Sets per Month

Contact Now

4000 KG Waste Tire Recycling Machine for Grinding Rubber Scrap Powder Easy to Operate

Description

Condition:	New	Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided	Marketing Type:	New Product 2020
Warranty Of Core Components:	5 Years	Core Components:	PLC, Engine, Bearing, Motor, Gear
Warranty:	1 Year	Weight (KG):	4000 KG
Key Selling Points:	Easy To Operate	Showroom Location:	None
Applicable Industries:	Manufacturing Plant	MACHINE:	TIRE RECYCLING MACHINE
After-sales Service Provided:	Field Installation, Commissioning And Training	After Warranty Service:	Video Technical Support
Port:	Shanghai

Product Description

Description:

Waste tire recycling machine: This line mainly consists of mainframe (rubber crusher), powder screener, and magnetic separator.

Step1: Through the decomposition of waste tire by Waste tire breaking down machines set, the tire processed into about 3.5 cm square pieces first;

Step2: By the rubber crusher shredding process to get rubber powder or particles with wire and fiber mixed inside.

Step3: Using the powder vibrating screener, magnetic separator to completely separate wire and fiber and tire rubber powder or granules.

Through the conveyor belt with two sieve beds filter out the fine material and then by magnetic roller, magnetic separation of steel wire and fiber, finally, getting the pure rubber powder.

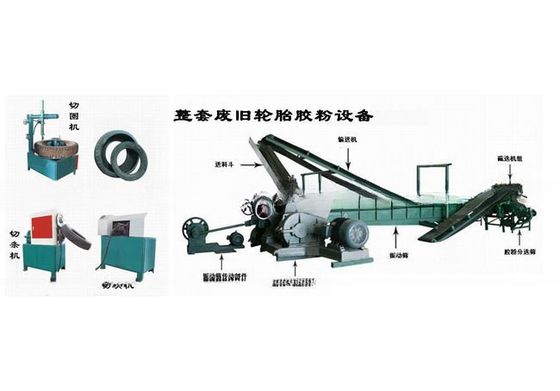

These machines set mainly consists the following equipment:

1. Tire ring cutter XQK-800

This machine is used to cut steel tire sidewall in order to do separation of the next step. Tire placed Disc platform, rotate the middle of hand-wheel, three-jaw card holder will be jammed solid inner tire, start power, work platform rotation, cutting tools as needed into the knife, slowly cut into the tires, step by step, until cut sidewall of the tire. This is first step of recycling waste tire.

2. Rubber bar cutter

This machine is utilized to cut radial tire which has been removed one side-wall into a certain sized of rubber strip.

2 disc cutters are of special materials, hard and durable, can be used repeatedly grinding for no more than 1200mm dia wire tires.

Ⅱ. Main machine group

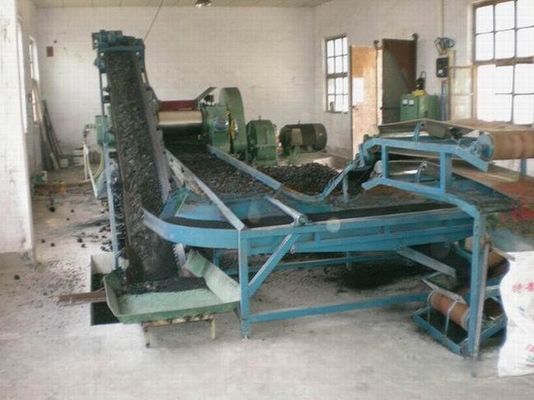

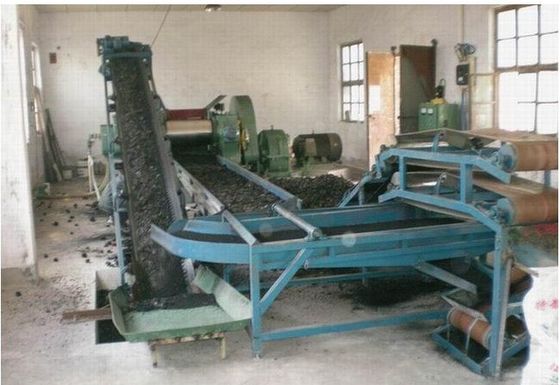

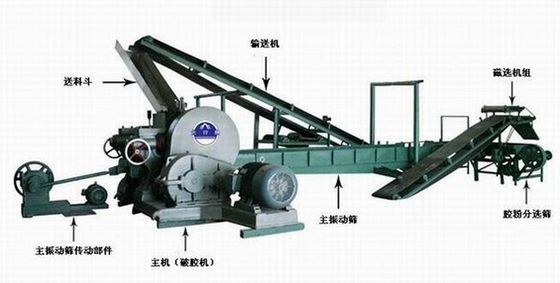

The machines set consist of rubber crusher and auxiliary machine. The auxiliary machines mainly consist of vibration sieve, rubber block conveyor, rubber powder filter screener, powder materials conveyor; steel wire magnetic separator. These auxiliary machines works together to achieve the production process flow.

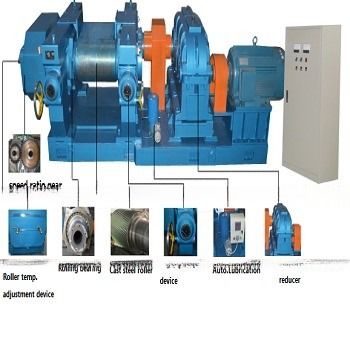

1. The rubber crushing mill: It is mainly used to crush the rubber lump, soles and rubber leftover materials to get the rubber powder or rubber granules.. The machine uses alloy chilled cast iron roller, the surface of hard wear-resistant, roll after roll of groove, cavity processing, so that the roll surface temperature uniformity; with overload protection and emergency braking device, safe and reliable; using hand-wheel adjustable rollers tube spacing, easy to operate.
