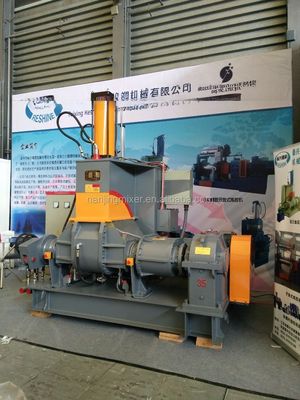

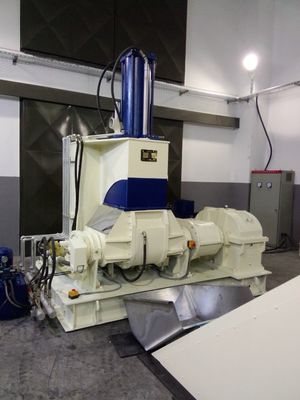

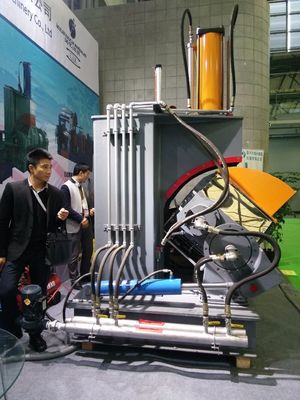

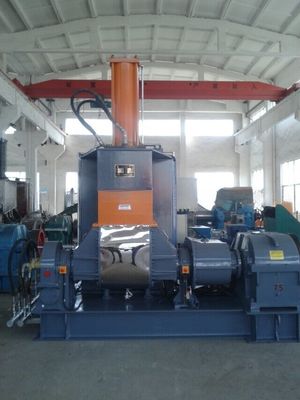

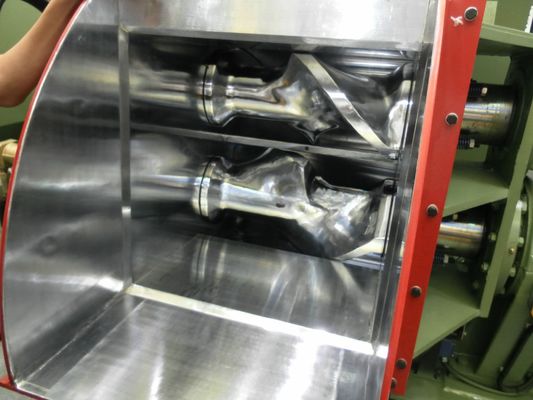

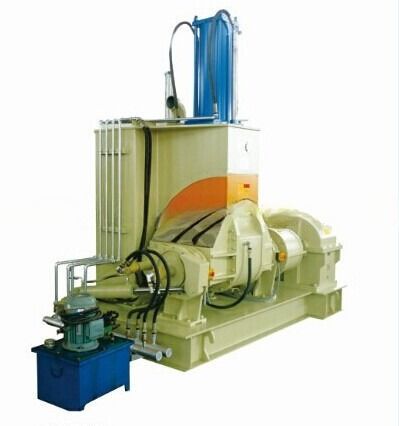

Intermesh kneader/ Intermeshing rotor Kneader

Large Image : Intermesh kneader/ Intermeshing rotor Kneader

Product Details:

Place of Origin:	China
Brand Name:	Mixer
Certification:	CE
Model Number:	X(S)N-55

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	$10,000.00 - $99,999.00/sets
Packaging Details:	film wrap into container
Delivery Time:	60days
Payment Terms:	T/T
Supply Ability:	60DAYS

Contact Now

Intermesh kneader/ Intermeshing rotor Kneader

Description

Voltage:	380V	Dimension(LWH):	342x214X280CM
Warranty:	1 Year	After-sales Service Provided:	Field Installation, Commissioning And Training, Engineers Available To Service Machinery Overseas
Condition:	New	Type:	Rubber Kneader
Model:	X(S)N-55	Effective Mixing Capacity:	55L
Main Power:	55/75KW	Brake Motor:	3.0KW
Tilting Degree:	140℃	Heating Steam:	0.5-0.8
Electric Heater:	15KW	Weight:	7800kg
Power:	55/75kw	Port:	Shanghai,Ningbo

Product Description

Nanjing lab kneader mixer/dispersion rubber kneader machine/rubber kneader banbury mixer

For Rubber, Plastic & Chemical Industry

Main application:

Rubber, TPR,EVA,Rubber sole, Rubber Roller, Hoses Belts, Sponges, Vibration Insulator, Elastic Cord,

Sealing Materials, Tire, Tapes, Master Batches, Pigment Ink, Automobile Electric Rubber Parts, Chemical

Industry Compounds.

Feature for Dispersion Kneader:

1. An automatic temperature and time control system to provide a 100% mixing effect.

2. Easy to clean chamber and changing colors.

3. In 6~10 minutes/batch of output equivalent to 2 units of mixing mill.

4. Pressurized and sealed mixing chamber to provide high mixing performance and prevented

environmental pollution.

5.Easy installation,operation and maintenance to reduce running cost.

6.Reliable performance,no leakage, longer lifer service.

7.For special materials, special request can be made to order.

Specification

Model		X(S)N-3	X(S)N-10	X(S)N-20	X(S)N-35	X(S)N-55	X(S)N-75	X(S)N-110	X(S)N-150	X(S)N-200
Effective Mixing capacity	L	3	10	20	35	55	75	110	150	200
Main power	KW	5.5	15	30	55	55/75	90/110	160/200	220	280
Brake Motor	KW	0.37	0.75	1.5	2.2	3.0	4.0	5.5	5.5	7.5
Tilting Degree	℃	110	110	110	140	140	140	140	140	140
Air compressor	KW	1.5	2.2	3.0	5.5	7.5	10	10	15	20
Dust Collector		HLL-10	HLL-10	HLL-10	HLL-10	HLL-15	HLL-20	HHL-30	HHL-30	HHL-30
Cooling Water	MPA	0.2-0.4	0.2-0.4	0.2-0.4	0.3-0.4	0.3-0.4	0.3-0.4	0.3-0.4	0.3-0.4	0.3-0.4
Heating Steam	MPA	0.5-0.8	0.5-0.8	0.5-0.8	0.5-0.8	0.5-0.8	0.5-0.8	0.5-0.8	0.5-0.8	0.5-0.8
Electric Heater	KW	4	6	9	12	15	18	24	28	32
Machine Weight	KG	1200	2300	4500	6500	7800	10500	14500	19500	22500
Overall Dimension	CM	196x970x182	220x135x215	250x148 x250	310x179 x271	342x214 X280	380x214 X318	440x276 X377	462x300 X415	470x340 X430
