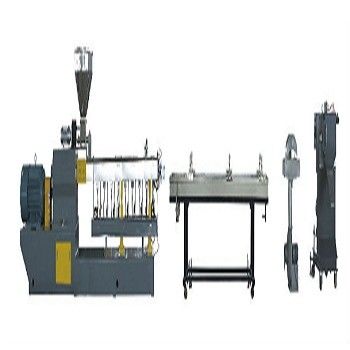

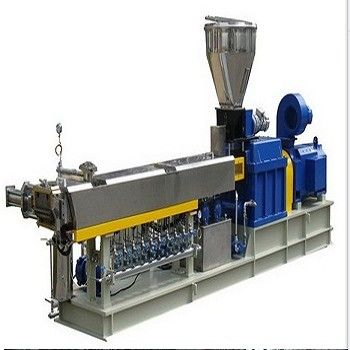

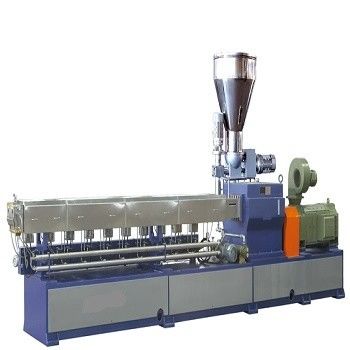

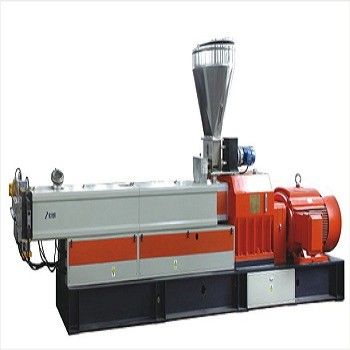

65mm Screw Diameter Co-Rotating Twin Screw Plastic Extruder for Granules Compounding

65mm Screw Diameter Co-Rotating Twin Screw Plastic Extruder for Granules Compounding
65mm Screw Diameter Co-Rotating Twin Screw Plastic Extruder for Granules Compounding 65mm Screw Diameter Co-Rotating Twin Screw Plastic Extruder for Granules Compounding 65mm Screw Diameter Co-Rotating Twin Screw Plastic Extruder for Granules Compounding 65mm Screw Diameter Co-Rotating Twin Screw Plastic Extruder for Granules Compounding 65mm Screw Diameter Co-Rotating Twin Screw Plastic Extruder for Granules Compounding 65mm Screw Diameter Co-Rotating Twin Screw Plastic Extruder for Granules Compounding

Large Image :  65mm Screw Diameter Co-Rotating Twin Screw Plastic Extruder for Granules Compounding

Product Details:
Place of Origin: Jiangsu, China
Brand Name: MIXER
Payment & Shipping Terms:
Price: $16,000.00/sets >=1 sets
Packaging Details: Plastic film packed in container.
Supply Ability: 10 Set/Sets per Month
Contact Now

65mm Screw Diameter Co-Rotating Twin Screw Plastic Extruder for Granules Compounding

Description
Condition: New Plastic Processed: PE, PP, PVC, EVA, FRPP/PVC, ABS/PP, HDPE/PP, PE/PP, PA,PE PVC ABS,POLYSTYRENE ECT
Application: Granules, Pelletizing Screw Design: Double-screw
Twin Screw Type: Co-rotating Parallel Twin-screw Screw Diameter (mm): 65 Mm
Screw L/D Ratio: 40:1 Screw Speed (rpm): 500 Rpm
Showroom Location: None Voltage: 380V
Dimension(L*W*H): According To Model Power (kW): 75
Weight: 3500 KG Warranty: 1 Year
Key Selling Points: Automatic Applicable Industries: Manufacturing Plant
Video Outgoing-inspection: Provided Warranty Of Core Components: More Than 5 Years
Core Components: Bearing, Motor, PLC, Screw Machinery Test Report: Provided
Automatic Grade: Automatic Power(W): 55-75KW
After-sales Service Provided: Video Technical Support After Warranty Service: Video Technical Support
Port: Shanghai



Product Description



:

Application of twin screw extruder for the materials in details as follows:

PE/PP/ABS/PC/EVA+CaCO3/Talc/TiO2;



PC+ABS/PA+EPDM/PBT+PET/PP+NBR;



PE/PP/ABS/PC/EVA/PET;



ANTI RETARDANT MASTERBATCH;



DE-COMPOSING MASTERBATCH;



ANTISTATIC MASTERBATCH;



ANTIBACTERIAL MASTERBATCH;



PA/PP/PC/ABS/PBTPOM+GLASS FIBER;



TPR/TPE/TPV/TPU;



PE/PP/EVA/PVC/XLPE;



PA/PU/POM/PMMA/PC;



CPP/CPE/SBS/EPDM/SEBS,FPM,/BR;
COATING MATERIALS

Electric control system for parallet co rotating twin screw extruder:
 Common instruments control:
1) Temperature controller,inverter, breaker, contactor, SSR and
  control buttons are of foreign famous brand asper customer's option.
2)The PLC control system is adopted to optimize the operations circuit.
3)Control unit like solenoid valve are of Euopean brand.
4)The whole extrusion line has driving & interlock pretect, and troulble &interlock proctec systems.
5)The simulation display is equipped, which can show the running state clearly
  and dynamically.
HIMI control:
1) Adopt the improted brand such as Omron and Siements with characters of simpliefied
   Circuit and safety.
2) Start/Stop of all the motors can be operated on the touch-screen.
3)The operations status of the line can be displayed dynamically.
4) Dynamic cruve display, input and save of parameters such as rmp, electric current, temp
   control and pressure.
5) Presenting the detailed record of warning, document retrieval, and maintenance.
6) Reserve the interface of the bus line, to realize the collections, analyze, save and print data.

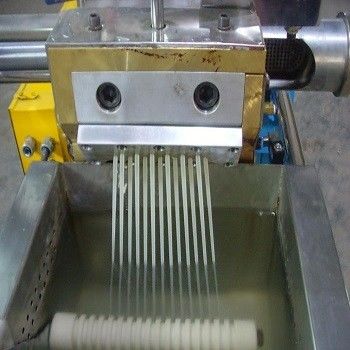

Working flow:
Co-Rotating Parallel Plastic Masterbatch Filling and Compounding Twin Screw Plastic Extruder Machine Sale
Specification



SJSL series co-rotating twin screw extruder
Model
 Diameter (mm)
Screw speed
 (RPM)
L/D
Motor (KW)
Torgue ( N.M)
Capacity(KG/H)
SJSL-20
22
600
32-60
3
35
1-5
SJSL-35
35.6
600
32-60
15-18.5
115
10-45
SJSL-50
50.5
500-600
32-60
37-45
405
100-200
SJSL-60
59.5
400-500
32-60
55-75
675
200-300
SJSL-60B
59.5
500-600
32-60
75-90
675
250-600
SJSL-65
62.4
400-500
32-60
55-75
675
200-300
SJSL-65B
62.4
500-600
32-60
75-90
1200
250-600
SJSL-75
71
400-500
32-60
90-110
1005
300-500
SJSL-75B
71
500-600
32-60
110-162
1875
750-950
SJSL-95
91
400
32-60
220
2250
750-1250
MT-95
91
500
32-60
500
3740
1000-1250







 Tandem extruder (Twin Screw and Single Screw Extruder Unit)
Model

Twin Screw

   Diameter(mm)
Single Screw Diameter (mm.)
Screw Speed (rpm)
   L/D
Motor (kw)
 Capacity(Kg/h)
SJSL50-100
   50.5 100
500
32-40
37
150-300

85
7-15
22
SJSL65-150
  62.4 150
400-500
32-40
55-75
400-600

85
7-15
37
SJSL75-180
 71 180
400-500
32-40
90-110
600-800

85
7-15
75
SJSL95-200
MT95
91
400-500
32-40
132-160
800-1200

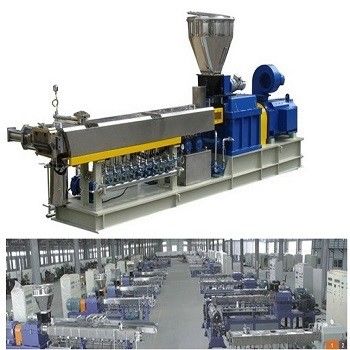

Packaging & Shipping

 Co-Rotating Parallel Plastic Masterbatch Filling and Compounding Twin Screw Plastic Extruder Machine SaleCo-Rotating Parallel Plastic Masterbatch Filling and Compounding Twin Screw Plastic Extruder Machine SaleCo-Rotating Parallel Plastic Masterbatch Filling and Compounding Twin Screw Plastic Extruder Machine SaleCo-Rotating Parallel Plastic Masterbatch Filling and Compounding Twin Screw Plastic Extruder Machine SaleCo-Rotating Parallel Plastic Masterbatch Filling and Compounding Twin Screw Plastic Extruder Machine Sale
