11KW CR Polyethylene Foam Slicing Band Knife Splitting Machine for Shoe Manufacturing

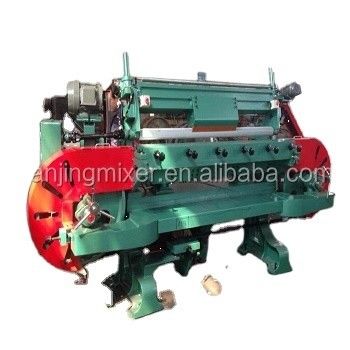

Large Image : 11KW CR Polyethylene Foam Slicing Band Knife Splitting Machine for Shoe Manufacturing

Product Details:

Place of Origin:	China
Brand Name:	Mixer

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	$16,000.00 - $20,000.00/sets
Packaging Details:	film wrap into container
Delivery Time:	60days
Payment Terms:	T/T
Supply Ability:	60DAYS

Contact Now

11KW CR Polyethylene Foam Slicing Band Knife Splitting Machine for Shoe Manufacturing

Description

Type:	Bandknife Splitting Machine	Condition:	New
Video Outgoing-inspection:	Provided	Machinery Test Report:	Provided
Warranty Of Core Components:	5 Years	Core Components:	PLC, Engine, Bearing, Gear
Voltage:	380V,220V,480V	Dimension(LWH):	3900x1150x2100mm
Warranty:	1 Year	Key Selling Points:	High Safety Level
Power (kW):	11 KW	Weight (KG):	3200 KG
Applicable Industries:	Manufacturing Plant	Showroom Location:	None
Splitting Machine:	EVA/PE Foam Sheet Splitting Machine	Slicing Machine:	Rubber Cork,CR,EPDM Foam Sheet
Power(W):	11KW	Weight:	3200
After-sales Service Provided:	Field Installation, Commissioning And Training	After Warranty Service:	Video Technical Support
Marketing Type:	New Product 2020	Port:	Shanghai

Product Description

Application:

The machine is applied to splitting the foamed rubber cork, foamed EVA, PE, etc. at a high speed and precision.

Features:

1. Cutter with holder plate is spray welded with tingsten, featuring abrasion resistant, non-deformation and it doesn’t clamp the cutter.

2. The speed is controlled through a powerful mechanic gearbox, featuring speedy change without reducing the power, lower failure rate.

3. The splitting thickness is set by the digital switch, featuring high precision.

4. The splitting thickness is set by the digital switch, featuring high precision. The main components, like motor, gear box, drive bearing, electric elements, are all made from Taiwan or Japan brand, with reliable and stable performance, making sure the machine with longer service life.

Specification

Item	Contents	Data
1	Slicing width	1800 mm
2	Slicing Thickness	0.3-120 mm
3	Slicing Hardness	10°-80°
4	Slicing Speed	10M-40 M/min
5	Slicing Precision	±0.05 m/m Or ±5%
6	Drive Power	11KW
7	Band knife Dimension	1.0×90×8100m/m
8	Machine Dimension	3900×1150×2100 mm
9	Equipment Weight	3200KG

China Factory Polyethylene Foam Slicing Band Knife Splitting Cutting Shoe Making Machine

Packaging & Shipping

11KW CR Polyethylene Foam Slicing Band Knife Splitting Machine for Shoe Manufacturing 1 China Factory Polyethylene Foam Slicing Band Knife Splitting Cutting Shoe Making Machine
