Product Details:
|
| Applicable Industries: | Manufacturing Plant | Showroom Location: | Turkey |
|---|---|---|---|
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | Ordinary Product | Warranty Of Core Components: | 2 Years |
| Core Components: | Engine, Bearing, Gearbox | Warranty: | 1 Year |
| After Warranty Service: | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service | Local Service Location: | Turkey |
| After-sales Service Provided: | Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Video Technical Support, Online Support | Port: | Shanghai |

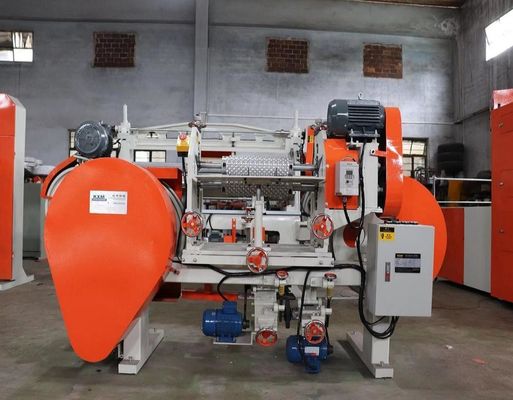

EVA Sole Slope Splitting Machine:
1. This machine is suitable for splitting rubber foam sheet,EVA foam, shoe sole,beach sole, slippers and other materials.
2. Application materials:EVA,PE,EPE,EPS
3. It is convenient to adjust the thickness ,easy to operate.
4. When the blade is worn, adjusting the advance and retreat of the feeding wheel will be ok.
| Model | MC-500 |
| Cutting thickness | 1-80mm |
| Working width | 500mm |
| Roll speed | 120 RPM |
| Thickness tolerance | 0-0.1mm |
| Power | 3HP |
| Blade size | 4600x75x0.8mm |
| Dimension | L2100×W900×H1500mm |
| Weight | 900 kg |
