Product Details:
|
| Type: | Rubber Kneader | Condition: | New |
|---|---|---|---|
| Dimension(L*W*H): | L3450xW2250xH2900mm | Warranty: | 1 Year |
| Key Selling Points: | Long Service Life | Power (kW): | 75 KW |
| Weight (KG): | 8000 KG | Applicable Industries: | Manufacturing Plant |
| Showroom Location: | Turkey | After-sales Service Provided: | Field Maintenance And Repair Service, Engineers Available To Service Machinery Overseas |
| After Warranty Service: | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service | Local Service Location: | Turkey |
| Model: | X(S)N-55 | Effective Mixing Capacity: | 55L |
| Port: | Shanghai,Ningbo |

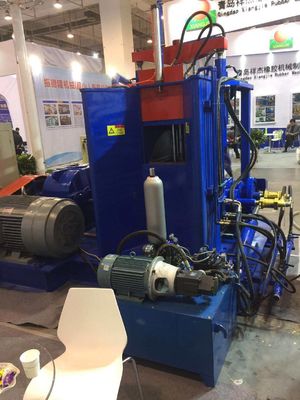

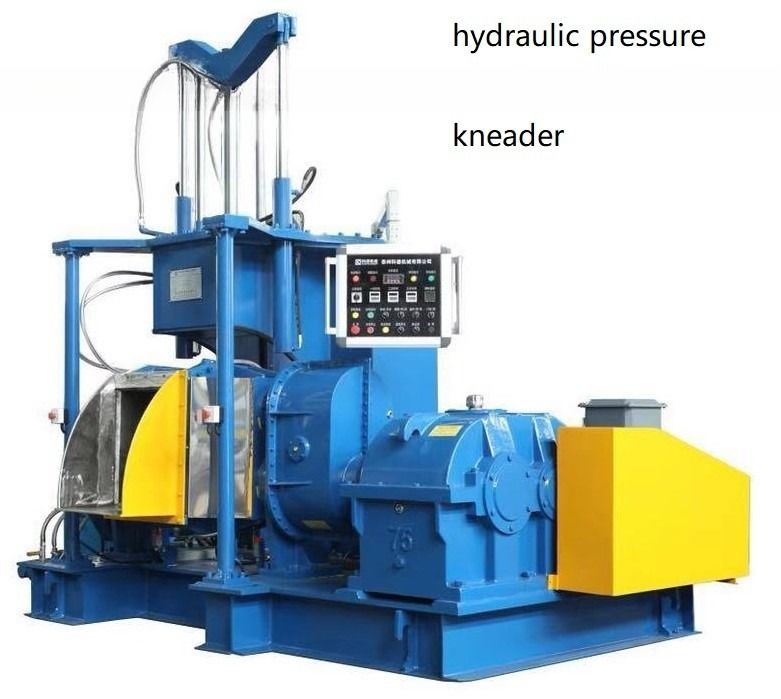

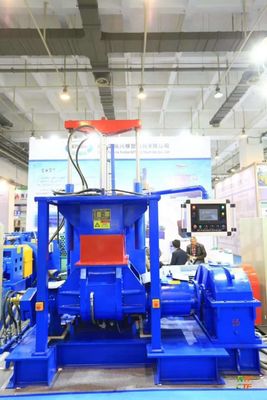

Hydraulic Rubber Dispersion Kneader, more powerful and well-distributed dispersion,works more efficiently.
- Model | X(S)N-55L |
- Total Chamber volume | 125L |
- Working chamber capacity | 55L |
- Rotor structure | Tangential,2 wings |
- Rotor speed | 36 :28 RPM |
- Friction Ratio | 1.28 : 1 |
- Input Motor | 75 KW |
- Main Motor voltage | 380V/50HZ |
- Batch capacity | Approx. 55-75 kg depending on the density of the rubber compound |
- Discharge Door | Front opening type |
- Charging Door | Back door feed |
- hydraulic pressure | 0.6-0.8 MPa |
- Jacket Cooling arrangement | For Rotors/Chamber/Ram |
- Discharge | Hydarulic tilt |
- Tilting angle | 140 degree |
- Rotor Seals | Mechanical seals with combination of double sealing function |
- Reducer | Multistage, Harden Gear Reducer |
- Dimension (mm) | L3450xW2250xH2900 |
- Weight (Kg) | 8000 |
Spare parts: |
|
a) dust collector | 1 set |
b) dust seals | 2 sets |
c) thermocouple | 1 pcs |
d) air valve | 1 set |
e) travel switch | 2 pcs |
f) oil seals | 1 set |
g) tools set | 1 set |
