Product Details:
|
| Applicable Industries: | Manufacturing Plant | Warranty: | 1 Year |
|---|---|---|---|
| After-sales Service Provided: | Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Video Technical Support, Online Support | Port: | Shanghai |

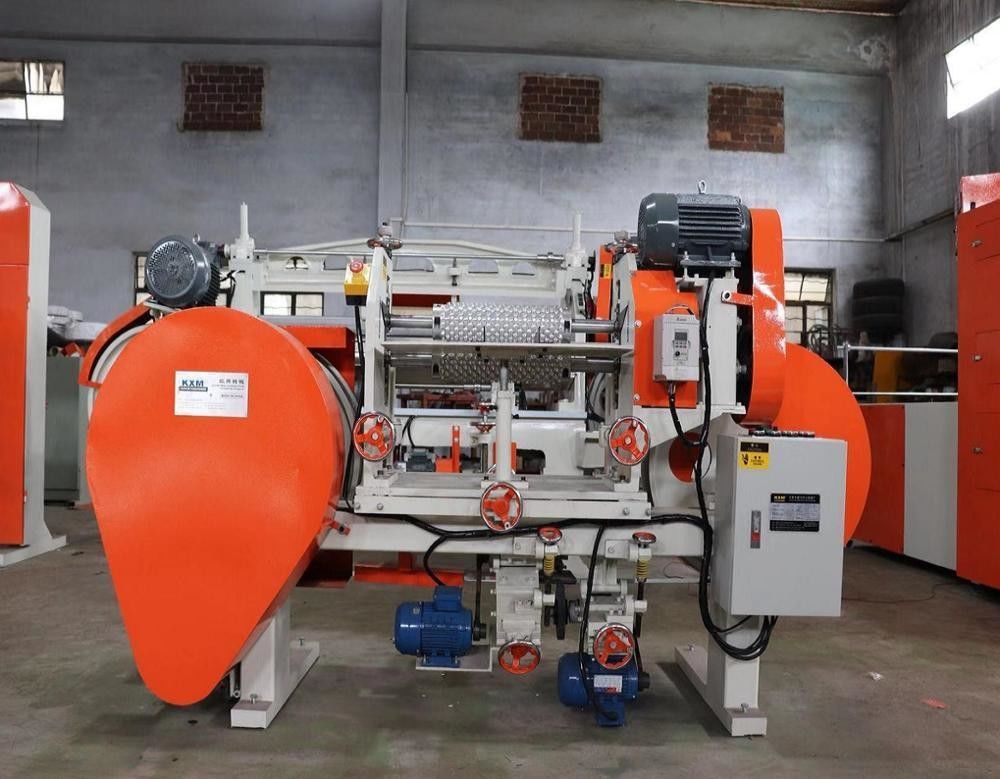

EVA Sole Oblique Cutting Machine:
1. This machine is suitable for splitting rubber foam sheet,EVA foam, shoe sole,beach sole, slippers and other materials.
2. Application materials:EVA,PE,EPE,EPS
3. It is convenient to adjust the thickness ,easy to operate.
4. When the blade is worn, adjusting the advance and retreat of the feeding wheel will be ok.
Model | MC-500 |
Cutting thickness | 1-80mm |
Working width | 500mm |
Roll speed | 120 RPM |
Thickness tolerance | 0-0.1mm |
Power | 3HP |
Blade size | 4600x75x0.8mm |
Dimension | L2100×W900×H1500mm |
Weight | 900 kg |
