Product Details:
|
| Type: | Bandknife Splitting Machine | Condition: | New |
|---|---|---|---|
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Warranty Of Core Components: | 5 Years | Core Components: | PLC, Engine, Bearing, Gear |
| Voltage: | 380V,220V,480V | Dimension(L*W*H): | 3900x1150x2100mm |
| Warranty: | 1 Year | Key Selling Points: | High Safety Level |
| Power (kW): | 11 KW | Weight (KG): | 3200 KG |
| Applicable Industries: | Manufacturing Plant | Showroom Location: | None |
| Splitting Machine: | EVA/PE Foam Sheet Splitting Machine | Slicing Machine: | Rubber Cork,CR,EPDM Foam Sheet |
| Power(W): | 11KW | Weight: | 3200 |
| After-sales Service Provided: | Field Installation, Commissioning And Training | After Warranty Service: | Video Technical Support |
| Marketing Type: | New Product 2020 | Port: | Shanghai |

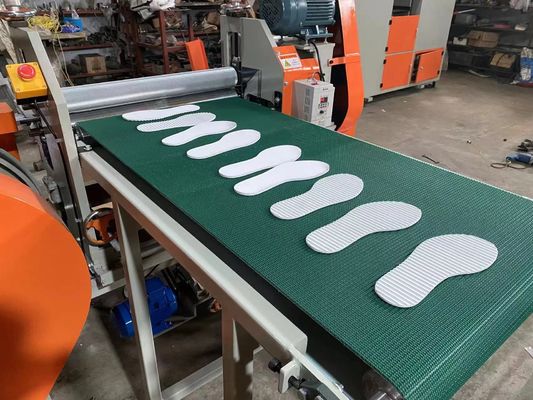

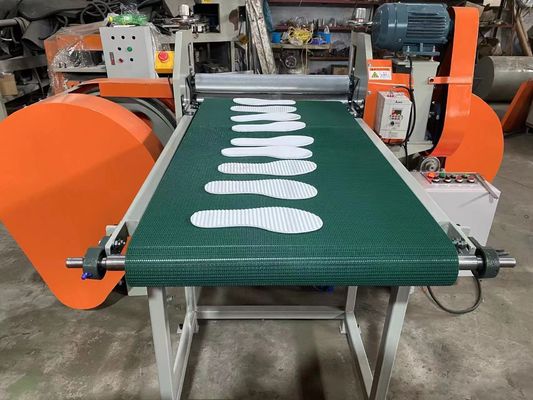

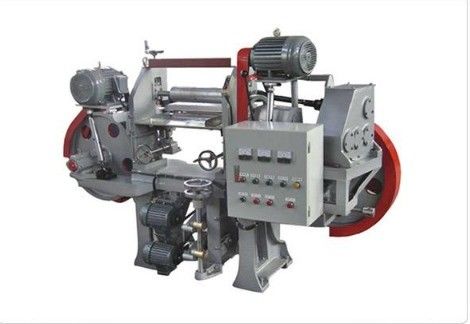

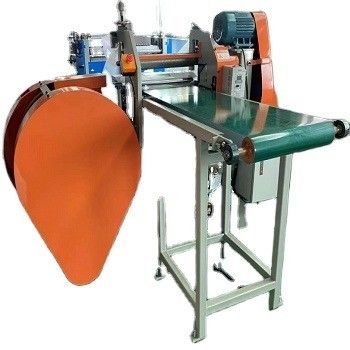

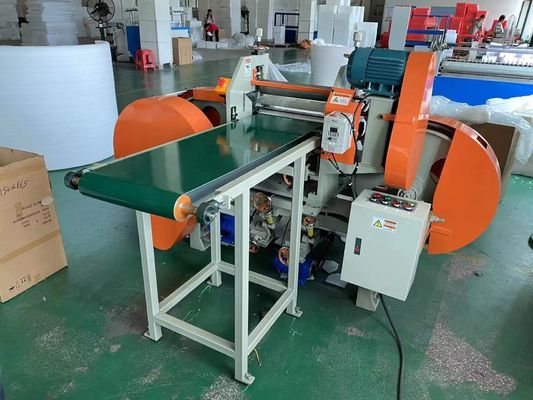

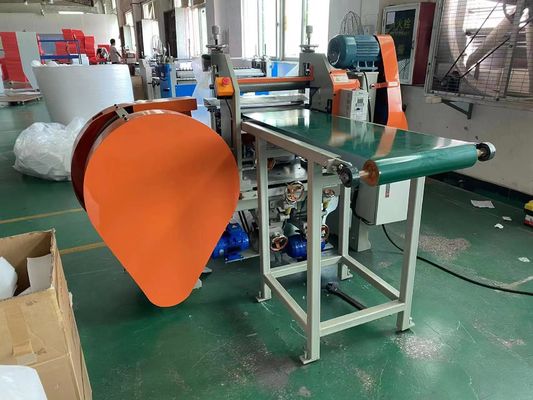

This foam sheet splitting machine can cut EVA/PE /Rubber foam sheet or EVA sole,etc. It highlights with automatic feeding system, improving the cutting efficiency remarkably, and make the cutting more ease for operator.
| Item | Contents | Data |
| 1 | Slicing width | 1800 mm |
| 2 | Slicing Thickness | 0.3-120 mm |
| 3 | Slicing Hardness | 10°-80° |
| 4 | Slicing Speed | 10M-40 M/min |
| 5 | Slicing Precision | ±0.05 m/m Or ±5% |
| 6 | Drive Power | 11KW |
| 7 | Band knife Dimension | 1.0×90×8100m/m |
| 8 | Machine Dimension | 3900×1150×2100 mm |
| 9 | Equipment Weight | 3200KG |
