Product Details:
|
| Type: | Rubber Cutting Machine, PLC | Condition: | New |
|---|---|---|---|
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | PLC, Engine, Motor, Gear |
| Voltage: | 220V | Dimension(L*W*H): | 1200x1000x2100 Mm |
| Warranty: | 1 Year | Key Selling Points: | Sustainable |
| Power (kW): | 5.5 KW | Weight (KG): | 1200 KG |
| Applicable Industries: | Manufacturing Plant, Other | Showroom Location: | None |
| Power(W): | 5.5kw | Weight: | 1200kg |
| After-sales Service Provided: | Field Installation, Commissioning And Training | After Warranty Service: | Video Technical Support |

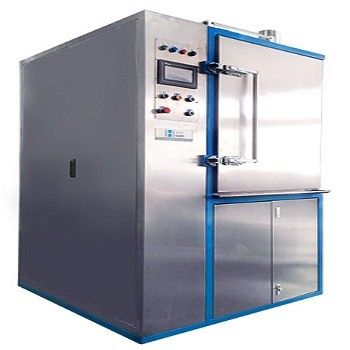

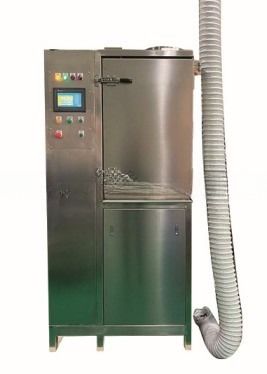

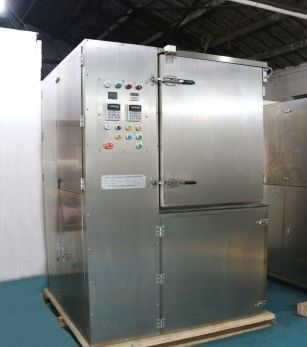

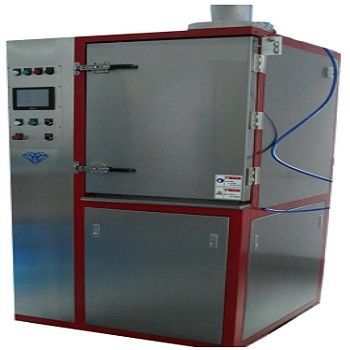

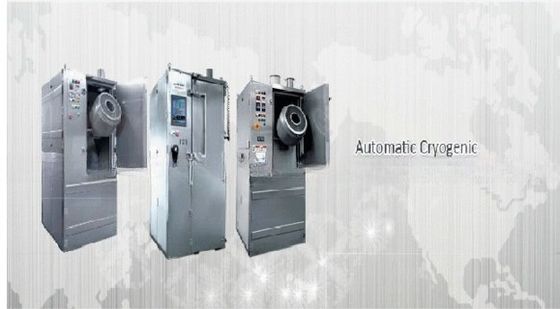

Automatic jet freezer trimmer is a principle of using liquid nitrogen freezing rubber, plastic, aluminum-magnesium alloy products fly side embrittlement occurs rapidly, in this state, a high-speed jet flying plastic projectile hit products for trimming, thereby both high efficiency and high quality products to remove burrs while maintain a trimming device product itself does not change the nature of the characteristics.
Suitable for freezing trimming materials: various plastics, zinc magnesium aluminum die-casting and other products.
30-80 Alternative trimming workers, high efficiency, daily trimming 200-400kg, the product structure is not required, there are holes, the internal structure of complex products can deburring, trimming good effect, good uniformity, You can save the cost of rubber, tooling costs, trimming costs less than artificial;
|
|
|
|
|
|
|
| Machine size(mm) |
|
|
| 984W×1000L×1935H(mm) | |
|
|
|
|
|
|
|
| power supply |
|
|
|
| AC380V 50/60HZ 3P |
|
|
|
|
|
|
|
| Total power |
|
|
| 5.5KW(Projectile wheel motor 3.7KW) | |
|
|
|
|
|
|
|
| Casting wheel speed |
|
|
|
| 3000-7200rpm |
|
|
|
|
|
|
|
| Design temperature |
|
|
|
| MAX -130℃ |
|
|
|
|
|
|
|
| Vibrating screen diameter |
|
|
|
| D500(mm) |
|
|
|
|
|
|
|
| Parts basket capacity |
|
|
|
| 60L |
|
|
|
|
|
|
|
| Operation interface |
|
|
|
| Touch scree |
|
|
|
|
|
|
|
| Casting wheel size |
|
|
|
| 250(mm) |
|
|
|
|
|
|
|
| Refrigerant type and conditions |
|
| Liquid nitrogen,and the liquid nitrgen tank you can buy from your country | ||
| Media flow systems |
|
| Low temperature pressure vessel storage and transportation, pipeline with safety valve, shut-off valve, and equipment connection pipe for special low temperature insulation metal hose | ||
| Parts basket dimension |
|
| diameter:50CM and depth:40CM | ||
| Open/close type |
|
| Door type | ||
| Basket perforation size |
|
| ø5MM | ||
| Usable volume of basket |
|
| 60L | ||
| Throwing wheel diameter |
|
| 250mm | ||
| Speed |
|
| 7200rpm/M | ||
| Media type |
|
| Plastic particles | ||
| Touch screen size |
|
| 6 Inch | ||
| PLC control |
|
| Taida | ||
ADVANTAGE:
1.PLC programming control, touch-screen human-machine digital operation, store all kinds of production process, parameters of each product.
2.Precisely controlled demolition speed, operating performance is simple, intelligent, working sound is low, greatly reduces the operator fatigue. The machine has feeding position and working station, no need to stop machine every time when feeding, achieving continuous flow operation.
3.Power consumption is only around 3 KW per hour,more importantly,this machine can remarkably reduce labor force, saving workforce cost,greatly improve production efficiency, the production capacity of one this machine is equivalent 30 times of workers’ manual production.
Besides this machine won’t do deformation,damage,dirt to the processed rubber.
4.No need to change any mold or any parts for the machine.
