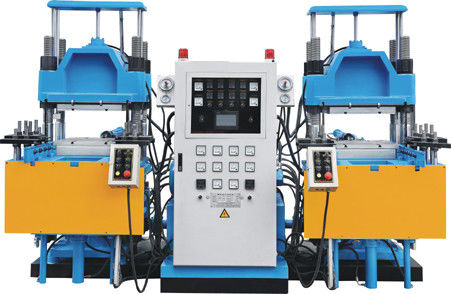

Platen Vulcanizing Press for Double Station Rubber Oil Seal Mold Vulcanizer Machine

Large Image : Platen Vulcanizing Press for Double Station Rubber Oil Seal Mold Vulcanizer Machine

Product Details:

Place of Origin:	Jiangsu, China
Brand Name:	Geekung

Payment & Shipping Terms:

Minimum Order Quantity:	1SET
Price:	$20,000.00/sets >=1 sets
Packaging Details:	film wrap into container
Delivery Time:	60DAYS
Payment Terms:	T/T

Contact Now

Platen Vulcanizing Press for Double Station Rubber Oil Seal Mold Vulcanizer Machine

Description

Condition:	New	Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided	Core Components:	PLC, Engine, Motor, Gear
Machine Type:	Vacuum Vulcanizing Press	Voltage:	220V/380V/415V/440V/480V
Dimension(LWH):	3830x2450x2990	Weight:	13000
Warranty:	1 Year	Key Selling Points:	Famous Brand PLC
Showroom Location:	None	Applicable Industries:	Manufacturing Plant
Color:	Custom Made	Power(W):	15KW
After-sales Service Provided:	Field Installation, Commissioning And Training	After Warranty Service:	Video Technical Support

Product Description

automatic vacuum vulcanizing rubber molding machine/vacuum compression forming machine

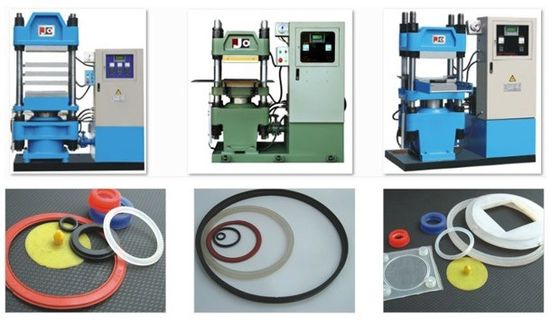

APPLICATIONS:

Ideal for the production of making rubber gaskets, O-rings, keyboards, medical stoppers, medical rubber products, seal, wipers scraping head, sports ,rubbe seals,etc.

REMARKABLE FEATURES:

· The vacuum suction hood provides highly efficient vacuum suction effect for the entire mold inside the working platen, suction speed of 700HG/2 sec. The unit offers simplified construction, easy to operate and maintain, with fast mold change.

· Integrated hydraulic circuit provide various pipe functions on the circuit boards, reducing piping to a minimum. The oil cooler ensures long service life of the circuit valve.

· The motion time, traverse and number of motions can be conveniently set on the control panel to meet product variations, ensuring production quality.

· Combines two molding units in one machine, which can be operated separately.

· While in vulcanization molding operations, the hydraulic pump motor can be set for running, or stopped for power saving.

· The electric system is controlled by the PLC controller, allowing for easy operation and accurate adjustment. An emergency switch provides added safety for the mold and the operator.

Specification

Model		YH-HV80T-2	YH-HV150T-2	YH-HL200T-2	YH-HV250T-2	YH-HV300T-2
Clamping Force	TON	80	150	200	250	300
Plate Size	mm	380×420	450×450	500×550	550×550	650×650
Piston Stroke	mm	380	345	380	380	380
Heating Capacity	kw	9	9	13.5	20.4	20.4
Pump Motor	kw	5.5	7.5	7.5	11	15
Piston Diameter	mm	230	356	495	406	430
Max Mold Size L×W×H	mm	340×380 ×180	410×410 ×120	510×510 ×200	510×510 ×200	610×610 ×175
Machine Dimensions	mm	2850×1625 ×2610	3150×1640×2550	3650×1800×3090	3650×1800×3090	3830×2450×2990
Machine Weight	kg	6500	7200	9300	11000	13000

Model		YH-HV80T	YH-HV150T	YM-HL200T	YM-HV250T	YM-HV300T	YM-HV400T	YM-HV600T
Clamping Force	TON	80	150	200	250	300	400	600
Plate Size	mm	380×420	450×450	500×550	500×550	650×650	800×800	1000×1000
Piston Stroke	mm	380	345	380	380	380	450	520
Heating Capacity	kw	9	9	13.5	20.4	20.4	24	42
Pump Motor	kw	4	5.5	7.5	11	15	15	18.5
Piston Diameter	mm	230	305	356	406	430	500	610
Max Mold Size L×W×H	mm	340×380 ×180	410×410 ×200	510×510 ×200	510×510 ×200	610×610 ×175	760×760 ×200	960×960 ×305
Machine Dimensions	mm	1720×1625 ×2610	1875×1640 ×2550	2120×1800 ×3090	2120×1800 ×3090	2210×2200 ×2990	2440×2190 ×3430	3100×2450 ×4060
Machine Weight	kg	3000	3200	5200	6200	6800	12500	14000
