Product Details:
|
| Model NO.: | XK-H-450 | Transport Package: | Plastic Film Package Loaded In Whole Container |
|---|---|---|---|
| Trademark: | MIXER/Geekung | Origin: | China |
| HS Code: | 847780 | Production Capacity: | 1000 Sets/Year |
| Model | XK-H-360 | XK-H-400 | XK-H-450 | XK-H-550 | XK-H-610 | XK-H-660 | |||
| Diameter of rolls | 360 | 400 | 450 | 550 | 610 | 660 | |||
| Working length of roll | 900 | 1000 | 1200 | 1500 | 1830 | 2130 | |||
| Working speed of front roll | 17.4 | 19.3 | 23.1 | 28.6 | 30.1 | 32.45 | |||
| Fraction ratio of rolls | 1:1.27 | 1:1.27 | 1:1.27 | 1:1.29 | 1:1.18 | 1:1.09 | |||
| Max.gap(mm) | 10 | 10 | 10 | 15 | 15 | 15 | |||
| Nip regulating mode | Manual/hydraulic | Manual/hydraulic | Manual/hydraulic | hydraulic | hydraulic | hydraulic | |||
| Batch capacity (Kg) | 15-20 | 25-35 | 30-50 | 50-60 | 75~110 | 120-160 | |||
| Motor power (KW) | 30 | 45 | 55 | 90/110 | 160 | 180 | |||
| Reducer | |||||||||
| Overall dimension (LxWxH:cm) | 3890x170 X140 | 449x170 X175 | 557x190 X175 | 629x233 X178 | 720x 240x190 | 750x 363x208 | |||
| Weight (kg) | 7600 | 9000 | 11500 | 20000 | 35000 | 45000 | |||

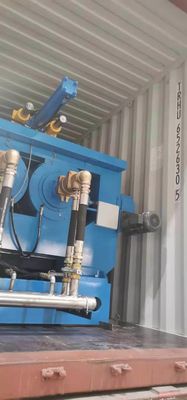

The rubber roller mill machine is packaged well by the stretch film first,and fixed professionally by the strong (solid) steel wire ropes,ensuring the machines remain still and won't slide in the container during the long distance of land and sea transportation, and reach the clients factories safely.
We supply quick after sales service, including online consultation,instruction and also onsite face-face service if required by the clients.
We have professtional after sales serivce team who can give you satisfactory quick response,including technical questions,trouble-shooting,installation,etc.
Our business principle is that :
Move ahead along with the spirit of "Responsibility& Sincerity for Customers" and "Cooperative&Enterprising Team" to "Mold a Better Future Together ".
It is our promise and duty to execute the 3 No worries for clients:
No worries before order,
No worries after order,
No worries in produciton.
Tel: 86-025-52631617
