XK-H-450 Hydraulic Rubber Open Mixing Mill with 1000 Sets/Year Output

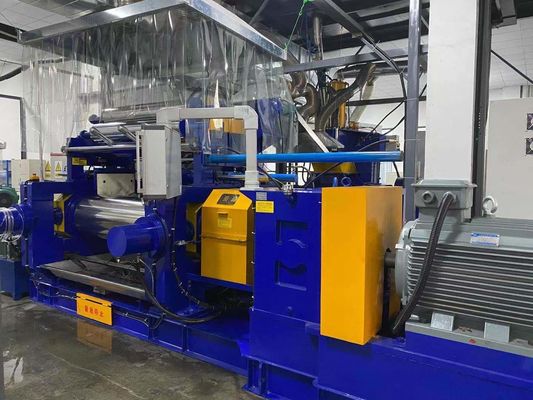

Large Image : XK-H-450 Hydraulic Rubber Open Mixing Mill with 1000 Sets/Year Output

Product Details:

Place of Origin:	China
Brand Name:	Mixer

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Packaging Details:	film wrap into container
Delivery Time:	60days
Payment Terms:	T/T
Supply Ability:	60DAYS

Contact Now

XK-H-450 Hydraulic Rubber Open Mixing Mill with 1000 Sets/Year Output

Description

Model NO.:	XK-H-450	Origin:	China
HS Code:	847780	Production Capacity:	1000 Sets/Year

Hydraulic Rubber Open Mixing mill is with hydraulic roll gap adjustment, the variable roll gaps for rubber mixing, rubber thinning through and rubber sheeting can be easily set on the touch screen, digital display, more precise roll gap control. Compared with the traditional mechanical worm gear type roll gap control device which is of high friction during adjustment, and the gear gaps could gradually becomes larger after a long time of use, so the roll gap control becomes less and less accurate gradually.
In contrast,because hydraulic control device adjust the roll gap by drive cylinder moving back and forth horizontally, it is almost frictionless,so it is very durable to keep its working stability,ensuring accurate gap even after many years use.
Besides, the hydraulic roll gap can be adjusted during rubber mixing.And the hydraulic roll gap is able to expand or shrink according to different types of rubber with regarding their different hardness,viscosity and elasticity,etc, and it will be adjusted to the set roll gap automatically .

Model	XK-H-360	XK-H-400	XK-H-450	XK-H-550	XK-H-610		XK-H-660
Diameter of rolls	360	400	450	550	610		660
Working length of roll	900	1000	1200	1500	1830		2130
Working speed of front roll	17.4	19.3	23.1	28.6	30.1		32.45
Fraction ratio of rolls	1:1.27	1:1.27	1:1.27	1:1.29	1:1.18		1:1.09
Max.gap(mm)	10	10	10	15	15		15
Nip regulating mode	Manual/hydraulic	Manual/hydraulic	Manual/hydraulic	hydraulic		hydraulic	hydraulic
Batch capacity (Kg)	15-20	25-35	30-50	50-60	75~110		120-160
Motor power (KW)	30	45	55	90/110	160		180
Reducer
Overall dimension (LxWxH:cm)	3890x170 X140	449x170 X175	557x190 X175	629x233 X178	720x 240x190		750x 363x208
Weight (kg)	7600	9000	11500	20000	35000		45000
