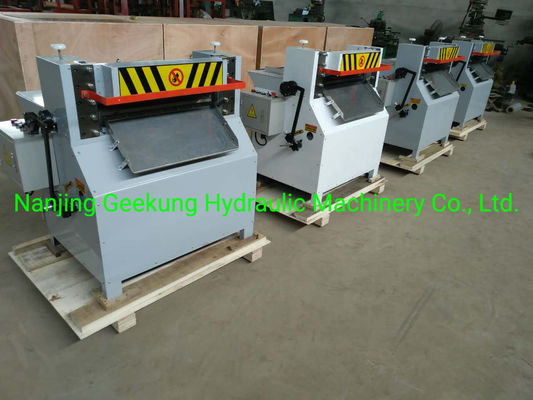

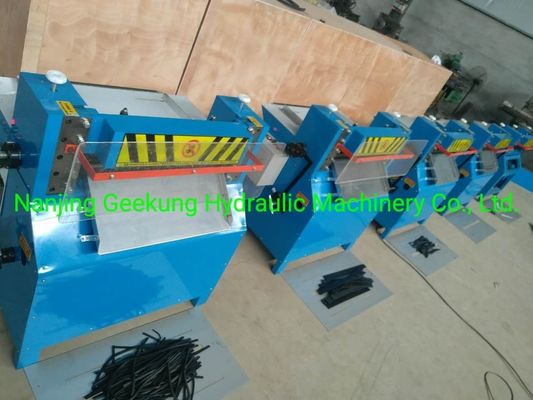

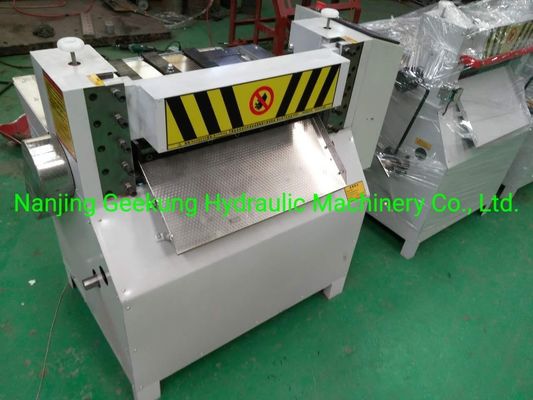

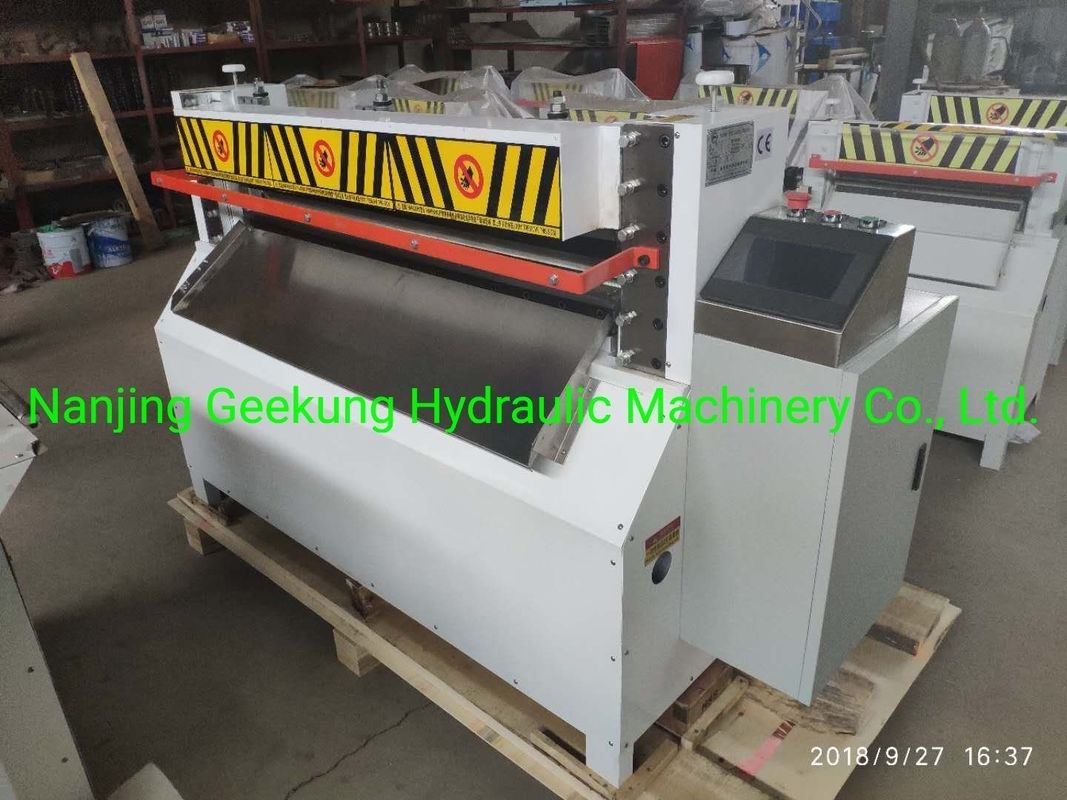

Rubber Slicing Machine with PLC Control and HMI Operation

Large Image : Rubber Slicing Machine with PLC Control and HMI Operation

Product Details:

Place of Origin:	China
Brand Name:	Mixer
Certification:	CE

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Packaging Details:	wooden case package
Delivery Time:	20-30days
Payment Terms:	T/T
Supply Ability:	30sets per months

Contact Now

Rubber Slicing Machine with PLC Control and HMI Operation

Description

Model NO.:	XQ-1000	Structure:	Horizontal
Transport Package:	Standard Export Wooden Case Package	Specification:	XQ-1000
Trademark:	Geekung	Origin:	China
HS Code:	8477800000	Production Capacity:	1000 Sets/Year

Rubber Slicing Machine with PLC control and HMI operation :
Description:
1.Our Rubber Slicing Machine (Rubber Strip Cutter ) is optimized in structure and easy to operate.With glass plates positioning in front make the operation more secure. Feeding platform is made of pure mirror stainless steel, truly beautiful appearance and guarantees safe production, high automation, easy operation and low noise and has a good safety device, automatic lift feed roller device is also a friendly design.

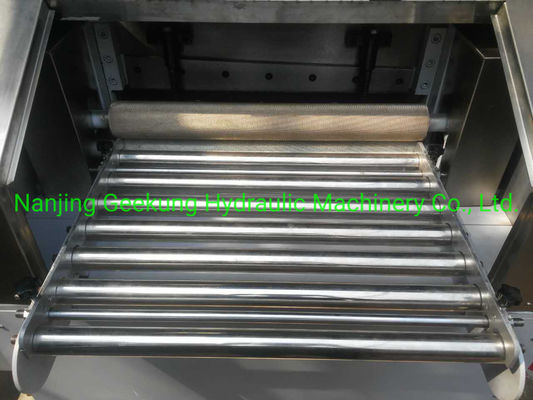

2.Feed roller of Rubber Strip Cutting Machine (Rubber Strip Cutter) adopts high-precision dual-clutch, free to adjust the width of strip material from 1mm to 50 mm, at high precision cutting.
3.The blade of the machine is alloy inlaid high speed wear-resistant material, sharp and long life service.
4.More humanity NC electrical control system. (You can control the start switch(button) only cut one time ,after confirming the weight in need already, then converted to a continuous strip cut) and significantly increased the electrical life ,a simple operation, more convenient to use.

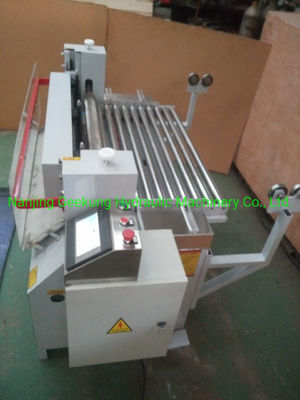

5.CNC type Rubber Strip Cutting Machine (CNC Rubber Strip Cutter) is available for options:rubber feeding is controlled by PLC and stepper motor,with mechanical-spring material press roller to make the rubber sheet feeding more accurate and smooth,improving the cut precision for the rubber strip.Easy operation, operator just input the desired width in the computer,the right width strip will be cut continuously.During cutting process, you can freely adjust the width of cut material as per your actual need.This CNC type Rubber Strip Cutting Machine,combining advanced CNC automatic mechanical and electric integration system,it overcome the problem for the normal strip cutting machine whose transmission parts could be wore after long time use.
Rubber Slicing Machine with PLC Control and HMI Operation

Technical Specification:

Model	XQ-450	XQ-620	XQ-820	XQ-1000	XQ-1220
Max. feeding rubber width(mm)	450	620	820	1000	1220
Max. cutting thickness (mm)	20	20	20	20	20
Max. Cut efficiency (times/min)	86	86	80	80	65
Cut precision	±0.1mm	±0.1mm	±0.1mm	±0.1mm	±0.1mm
Motor power(KW)	1.5	1.5	2.5/3	2.5/3	4/5.5
Dimension (LxWxH:cm)	105x70x110	115x85x110	140x96x120	165x100x123	180x100x142
Weight(Kg)	500	750	840	1050	1200

Notes: the form only list out the normal standard model, more automatic CNC rubber slicing machine with special requirements can be customized to order.
