1000 Sets/Year Rubber Washer/Gasket Cutter Machine Horizontal for Construction Sites

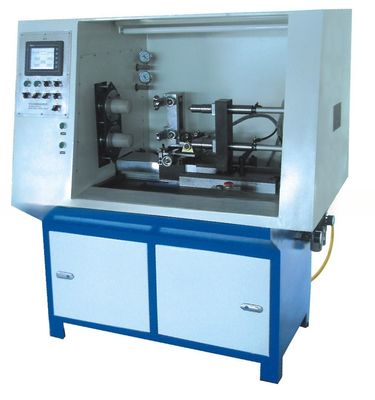

Large Image : 1000 Sets/Year Rubber Washer/Gasket Cutter Machine Horizontal for Construction Sites

Product Details:

Place of Origin:	China
Brand Name:	Mixer
Certification:	CE

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Packaging Details:	wooden case package
Delivery Time:	20-30days
Payment Terms:	T/T
Supply Ability:	30sets per months

Contact Now

1000 Sets/Year Rubber Washer/Gasket Cutter Machine Horizontal for Construction Sites

Description

Model NO.:	JCM200-4	Structure:	Horizontal
Transport Package:	Standard Export Wooden Case Package	Specification:	JCM200-4
Trademark:	Geekung	Origin:	China
HS Code:	847780	Production Capacity:	1000 Sets/Year

-Application:
Rubber Washer Cutter is used for precise cutting of kinds of rubber&silicone gasket/ washer/ring-shaped tubular product.
-Features:
1. When the cutting finishes, materials take off automatically, and through the collection boxes to gather the cut products.
2.Our Rubber Washer Cutter adopts vacuum pump, realizing powerful vacuum absorption of the pipe/tube, so ensuring the finished cut product more precise.
3. Automatic air blowing function makes loading and unloading more convenient, greatly improving the working efficiency.
4. The Rubber Washer Cutter adopts PLC+HMI touch screen control, cutting parameters are set up from the HMI,cutting recipes are aumatically stored,easy to call, making the operation very easy.
5. All electrical components, pneumatic components are imported from abroad or domestic famous brand products, to ensure long-term use, reliability and stability of the new machine.
6. Use servo drive system to control both the blades, compared with pneumatic control, servo control is more stable working and higher cutting precision.

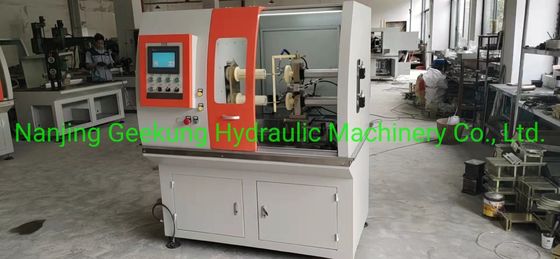

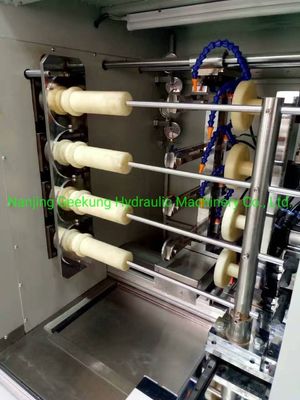

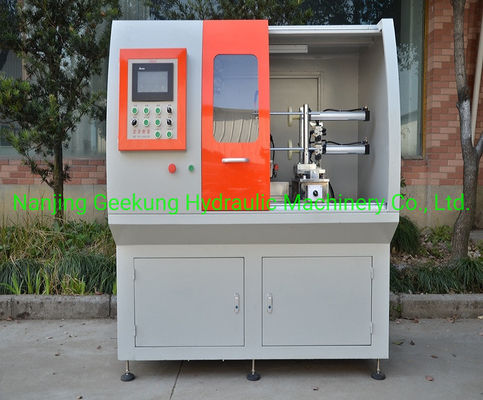

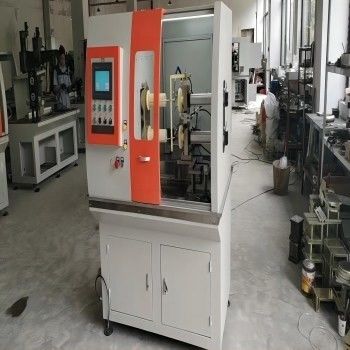

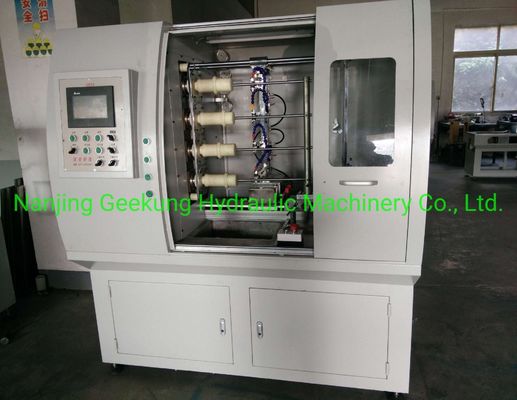

Rubber Washer/Gasket Cutter Machine

Main technical data:

Model	JCM200-1	JCM200-2	JCM200-4
cutting efficiency	≥60 times /min	≥ 120 times /min	≥200 times /min
Working rotation speed	0─3000rpm	0─3000rpm	0─3000rpm
Cut precision	≤±0.05 mm	≤±0.05 mm	≤±0.05 mm
Cut size	Rubber diameter:ф10-150mm (2)Cut length (standard):<=140mm; Lengthened type<=350 (3)Rubber wall thickness:<=25mm	(1)Rubber diameter: ф10─120mm Cut length (standard):<=140mm; Lengthened type<=280 Rubber wall thickness: <=25mm	(1)Rubber diameter: ф10─120mm Cut length (standard):<=140mm; Lengthened type<=280 Rubber wall thickness: <=25mm
Specification of blade	blade:ф60*ф25.4x0.3	blade:ф60*ф25.4x0.3	blade:ф60*ф25.4x0.3
Compressed air	20L/min	30L/min	30L/min
Air pressure	0.5Mpa─0.8Mpa	0.5Mpa─0.8Mpa	0.5Mpa─0.8Mpa
Vacuum degree	≤-0.035Mpa	≤-0.035Mpa
Power source	AC220V±5%	AC220V±5%	AC220V±5%
Total power	1.4 KW	2 KW	3KW
Dimension	1200x800x1210mm	1600x900x1650mm	1650x1100x1700mm
Total weight	450kg	650	880 kg
