Product Details:
|
| Model NO.: | JCM200-2 | Structure: | Horizontal |
|---|---|---|---|
| Transport Package: | Standard Export Wooden Case Package | Specification: | JCM200-2 |
| Trademark: | Geekung | Origin: | China |
| HS Code: | 847780 | Production Capacity: | 1000 Sets/Year |
-Application:

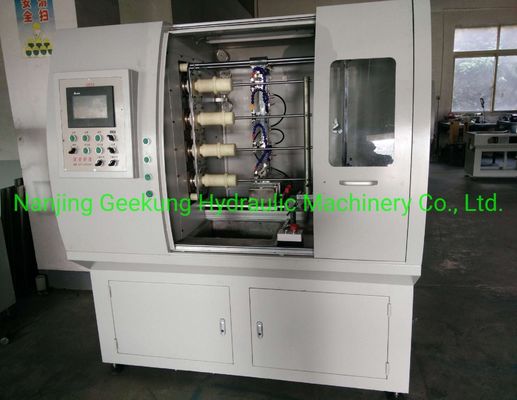

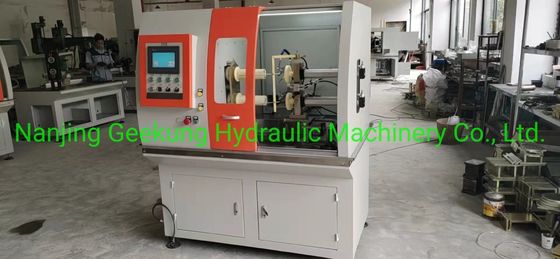

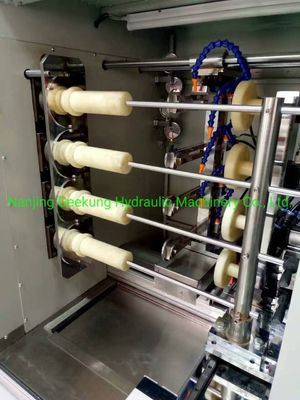

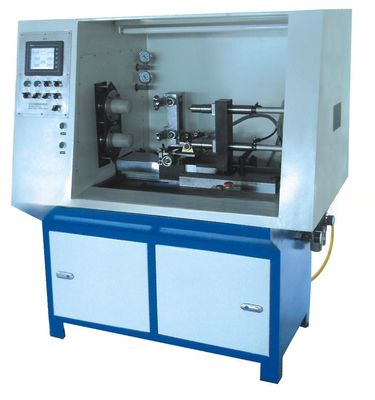

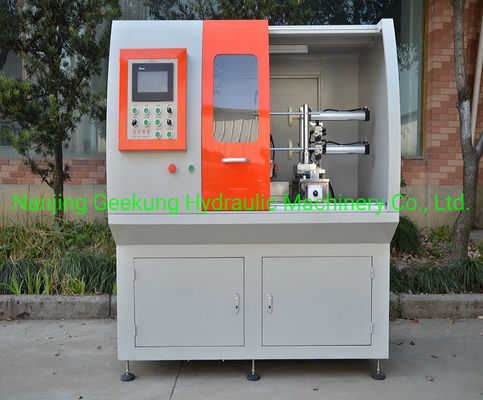

Rubber Gasket Cutting Machine is used for precise cutting of kinds of rubber&silicone gasket/ washer/ring-shaped tubular product.
| Model | JCM200-1 | JCM200-2 | JCM200-4 |
| Spindles (mandrels) | 1 | 2 | 4 |
| Cutting efficiency | ≥60 times /min | ≥ 120 times /min | ≥200 times /min |
| Working rotation speed | 0─3000rpm | 0─3000rpm | 0─3000rpm |
| Cut precision | ≤±0.05 mm | ≤±0.05 mm | ≤±0.05 mm |
| Cut size | Rubber diameter:ф10-150mm (2)Cut length (standard):<=140mm; Lengthened type<=350 (3)Rubber wall thickness:<=25mm | (1)Rubber diameter: ф10─120mm Cut length (standard):<=140mm; Lengthened type<=280 Rubber wall thickness: <=25mm | (1)Rubber diameter: ф10─120mm Cut length (standard):<=140mm; Lengthened type<=280 Rubber wall thickness: <=25mm |
| Specification of blade | blade:ф60*ф25.4x0.3 | blade:ф60*ф25.4x0.3 | blade:ф60*ф25.4x0.3 |
| Compressed air | 20L/min | 30L/min | 30L/min |
| Air pressure | 0.5Mpa─0.8Mpa | 0.5Mpa─0.8Mpa | 0.5Mpa─0.8Mpa |
| Vacuum degree | ≤-0.035Mpa | ≤-0.035Mpa | |
| Power source | AC220V±5% | AC220V±5% | AC220V±5% |
The machine is packaged well by the stretch film first,and fixed professionally by the strong wooden case,ensuring the machine non damage during the long distance of land and sea transportation, and reach the clients factories safely.
We supply quick after sales service, including online consultation,instruction and also onsite face-face service if required by the clients.
We have professtional after sales serivce team who can give you satisfactory quick response,including technical questions,trouble-shooting,installation,etc.
