Product Details:
|
| Model NO.: | JYZ-250 | Structure: | Horizontal |
|---|---|---|---|
| Transport Package: | Standard Export In Whole Container | Specification: | 60 Liter |
| Trademark: | TOKCHON | Origin: | China |
| HS Code: | 847780 | Production Capacity: | 1000 Sets/Year |

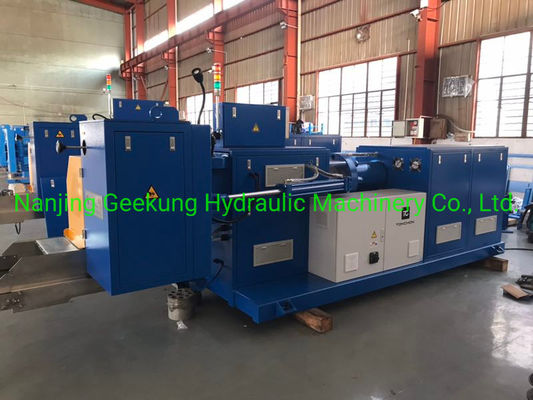

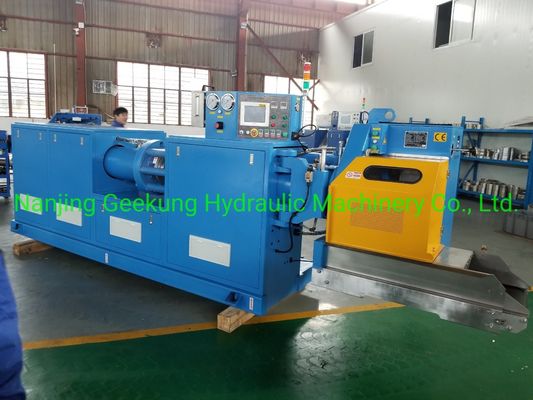

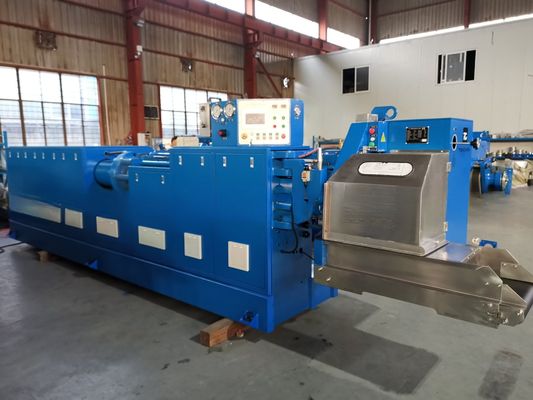

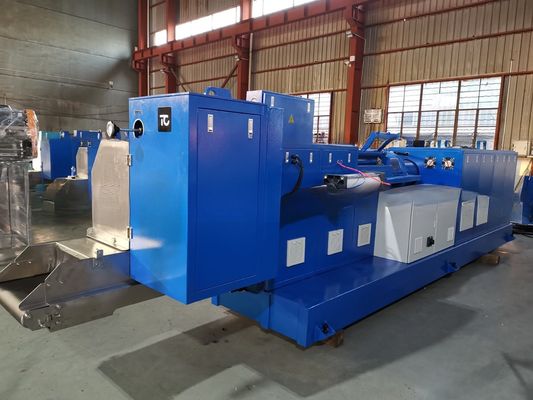

Rubber Preform Machine is a high efficiency and high precision rubber blanks preparation equipment. Application in wide field of rubber industry can squeeze all kinds of middle and high hardness of rubber ring, the complex three-dimensional shape of rubber product. And the precision of rubber blank volume is high, less gas. Suitable for production of rubber parts, seals, valve, cork, tennis.
| Model | JYZ-150 | JYZ-200 | JYZ-250 | JYZ-250+ |
| Barrel diameter | 150 mm | 200 mm | 250 mm | 250MM |
| Total power | 16 kw | 16 kw | 22kw | 26 kw |
| Max.oil cylinder pressure | 36.8 Mpa | 21 Mpa | 21 Mpa | 21 Mpa |
| Max.barrel temperature | 95ºC | 95ºC | 95ºC | 95ºC |
| Max. die diameter | 80 mm | 125 mm | 190 mm | 190 mm |
| Rubber bland weight range | 0.3~100 g | 0.3~200g | 0.3~2000g | 0.3~2000g |
| Rubber blank weight precision | ±1.0% | ±1.0% | ±1.0% | ±1.0% |
| Feed capacity per batch | 10~15 kg | 20~25 kg | 60~70 kg | 100~110 kg |
| Blade rotation speed | 35~400 RPM | 35~400 RPM | 23~400 RPM | 23~400 RPM |
| Dimension(L×W×H) | 4×1.15×1.7 m | 4×1.15×1.7 m | 5×1.15×1.7 m | 6.5x1.15x1.7 |
| Weight | 2.8 T | 3 T | 4T | 5T |
The rubber preform machine is packaged well by the stretch film first,and fixed professionally by the strong (solid) steel wire ropes,ensuring the machines remain still and won't slide in the container during the long distance of land and sea transportation, and reach the clients factories safely.
We supply quick after sales service, including online consultation,instruction and also onsite face-face service if required by the clients.
We have professtional after sales serivce team who can give you satisfactory quick response,including technical questions,trouble-shooting,installation,etc.
